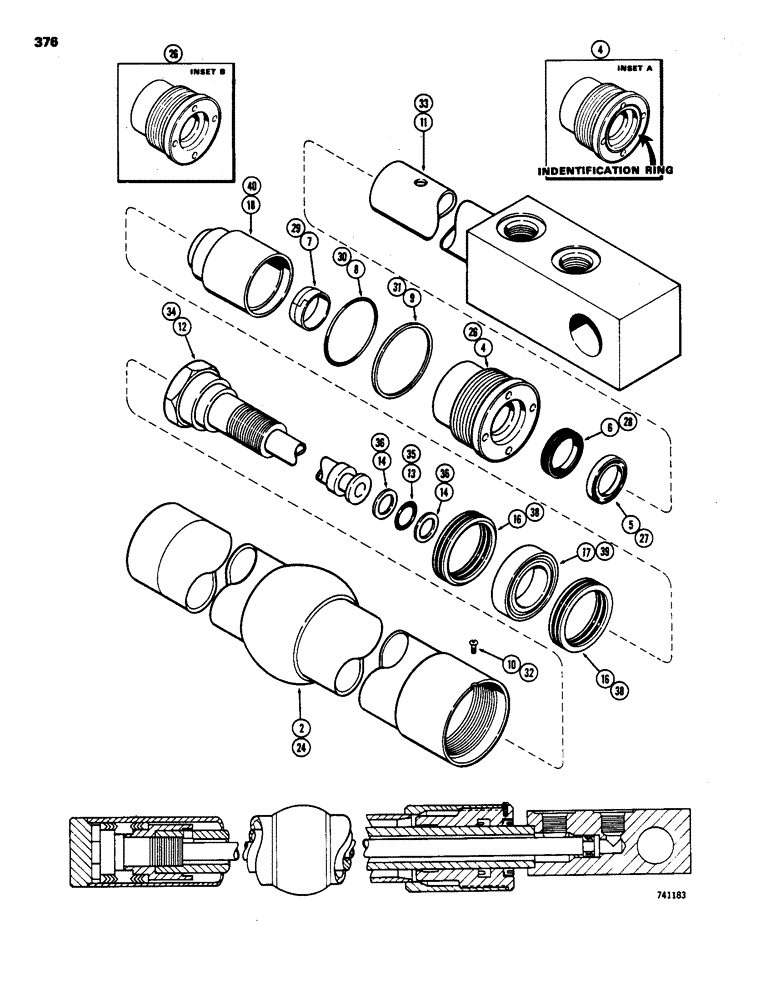

Запчасти Case 450 (376) - G33764 ANGLE CYLINDER - ANGLE DOZER, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33764

CYLINDER BLOCK

CYLINDER - angling, 2" dia. x 36-1/2" stroke (Not shown), Includes: Ref.#2 - 18

1шт.

2

D34671

TUBE

- cylinder body

1шт.

G33487

GLAND

ASSY.- Includes: Ref.#4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)(See Inset A)

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit P/N G32459

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of seal kit P/N G32459

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner (split type)

1шт.

Part of seal kit P/N G32459

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of seal kit P/N G32459

1шт.

9

G321219

RING - gland "O" ring back-up

1шт.

Part of seal kit P/N G32459

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33766

ROD

- piston (1-1/2" dia.) (w/identification ring)

1шт.

12

D34385

TUBE

- piston rod, inner

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - inner tube (5/8 x 13/16 x 3/32")

1шт.

Part of seal kit P/N G32459

1шт.

14

D34938

BACK-UP RING,0.827" OD

- tube "O" ring back-up

2шт.

Part of seal kit P/N G32459

1шт.

G33201

PACKING

ASSY. - piston, Includes: Ref.#16 & 17

1шт.

Part of seal kit P/N G32459

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

G33765

BUSHING

PISTON - front half (w/identification ring)

1шт.

G32459

SEAL KIT - cylinder repair, Includes Refs. 5, 6, 7, 8, 9, 13, 14, 27, 28, 29, 30, 31, 35 and 36

1шт.

23

G32461

CYLINDER - angling 2" dia. x 36-1/2" stroke (Not shown), G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring

1шт.

24

D34671

TUBE

- cylinder body, G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring

1шт.

G32733

GLAND

ASSY., G32461 lift cylinder-angle tilt dozer has solid outer rod wiper - no id ring, Includes: Ref.#26 - 40

1шт.

26

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See Inset B), G32461 lift cylinder-angle tilt dozer has solid outer rod wiper

1шт.

27

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32461 lift cylinder-angle tilt dozer gland has solid outer - no id ring

1шт.

Part of seal kit P/N G32459

1шт.

28

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16"), G32461 lift cylinder-angle tilt dozer gland has solid outer wiper - no id ring

1шт.

Part of seal kit P/N G32459

1шт.

29

D27706

WIPER SEAL

WIPER - piston rod, inner (split type), G32461 lift cylinder-angle tilt dozer gland has solid outer wiper - no id ring

1шт.

30

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8"), G32461 lift cylinder-angle tilt dozer has solid outer rod wiper - no id ring

1шт.

Part of seal kit P/N G32459

1шт.

31

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland "O" ring back-up, G32461 lift cylinder-angle tilt dozer has solid outer rod wiper - no id ring

1шт.

Part of seal kit P/N G32459

1шт.

32

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32461 lift cylinder-angle tilt dozer has solid outer rod wiper - no id ring

1шт.

33

D34672

ROD

piston (1-1/2" dia.)(w/o identification ring), G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper

1шт.

34

D34385

TUBE

- piston rod, inner, G32461 lift cylinder-angle tilt dozer gland has solid outer wiper - no id ring

1шт.

35

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - inner tube (5/8 x 13/16 x 3/32"), G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id

1шт.

Part of seal kit P/N G32459

1шт.

36

D34938

BACK-UP RING,0.827" OD

- tube "O" ring back-up, G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring

2шт.

Part of seal kit P/N G32459

1шт.

G32201

BACK-UP RING

PACKING ASSY. - piston, G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref.#38 & 39

1шт.

38

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type), G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring

2шт.

39

NSS

NOT SOLD SEPARAT

RING - center bearing, G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring

1шт.

40

D34388

PISTON - front half (w/o identification ring), G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper

1шт.

REFERENCE

SPARE PART

SEAL KIT - cylinder repair, Includes Refs. 5, 6, 7, 8, 9, 13, 14, G33201, 27, 28, 29, 30, 31, 35 and 36, G32461 lift cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring

1шт.
