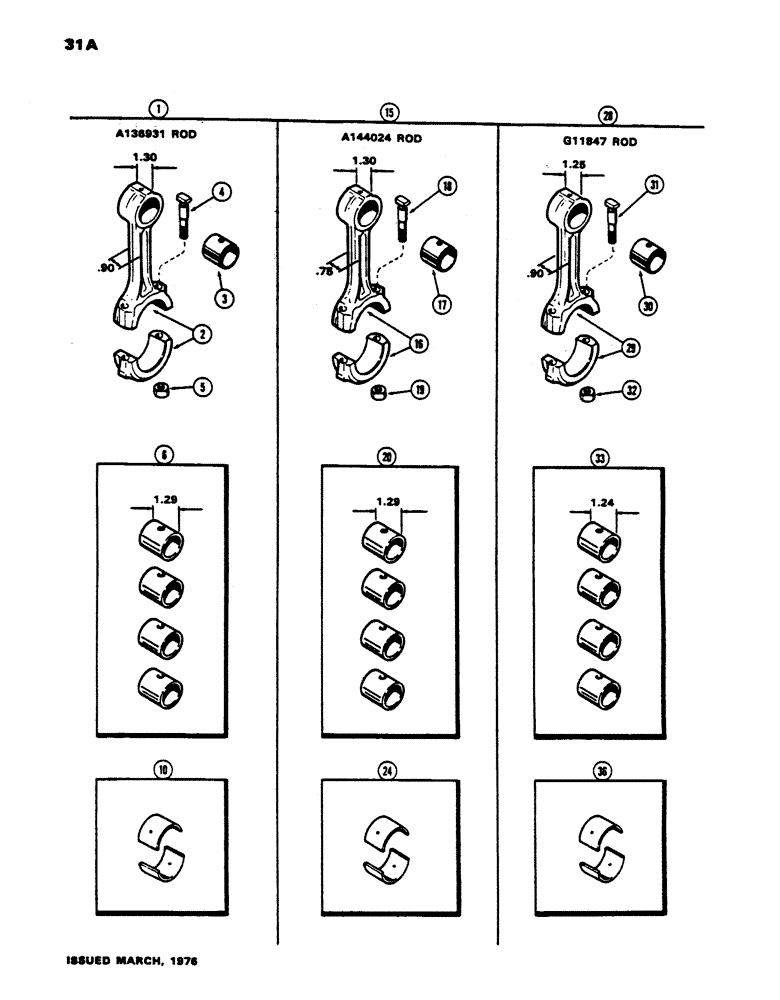

Запчасти Case 450 (031A) - CONNECTING RODS, (188) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2767997 (01) - ENGINE

1

A136931

ROD, CONNECTING

ROD ASSY. - connecting, Includes: Ref.#2 - 5

4шт.

2

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.90" "T" Section width and 1.3" pin boss width)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 6) (1-7/32 x 15/16 x 1.29" width)

1шт.

4

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

5

A51904

NUT

NUT - conn. rod bolt

2шт.

6

A44083

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

10

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2)

4шт.

10

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2)

4шт.

10

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2)

4шт.

10

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2)

4шт.

10

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2)

4шт.

15

A144024

ROD

ASSY. - connecting (Replacement For G11847), Includes: Ref.#16 - 19, Serial Range: -2767997

4шт.

16

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.75" "T" Section width and 1.30" pin boss width), Serial Range: -2767997

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20) (1-7/32 x 1-5/16 x 1.29" width), Serial Range: -2767997

1шт.

18

G49064

STEP BOLT

BOLT - conn. rod cap, us, Serial Range: -2767997

2шт.

19

A51904

NUT

NUT - conn. rod bolt, Serial Range: -2767997

2шт.

20

A44083

KIT

BUSHING SET - piston pin (Set of 4), Serial Range: -2767997

1шт.

24

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2), Serial Range: -2767997

4шт.

24

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2), Serial Range: -2767997

4шт.

24

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2), Serial Range: -2767997

4шт.

24

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2), Serial Range: -2767997

4шт.

24

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2), Serial Range: -2767997

4шт.

28

G11847

ROD

ASSY. - connecting (Order A144024)Includes: Ref.#29 -32, Serial Range: -2767997

4шт.

29

NSS

NOT SOLD SEPARAT

ROD & CAP - (-.090" "T" Section width and 1.25" pin boss width), Serial Range: -2767997

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 33) (1-7/32 x 1-5/16 x 1.24" width), Serial Range: -2767997

1шт.

31

G49064

STEP BOLT

BOLT - conn. rod cap, Serial Range: -2767997

2шт.

32

A51904

NUT

NUT - conn. rod bolt (Replaces A39286), Serial Range: -2767997

2шт.

33

G11953

BUSHING

SET - piston pin (Set of 4), Serial Range: -2767997

4шт.

36

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2), Serial Range: -2767997

4шт.

36

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2), Serial Range: -2767997

4шт.

36

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2), Serial Range: -2767997

4шт.

36

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2), Serial Range: -2767997

4шт.

36

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2), Serial Range: -2767997

4шт.
