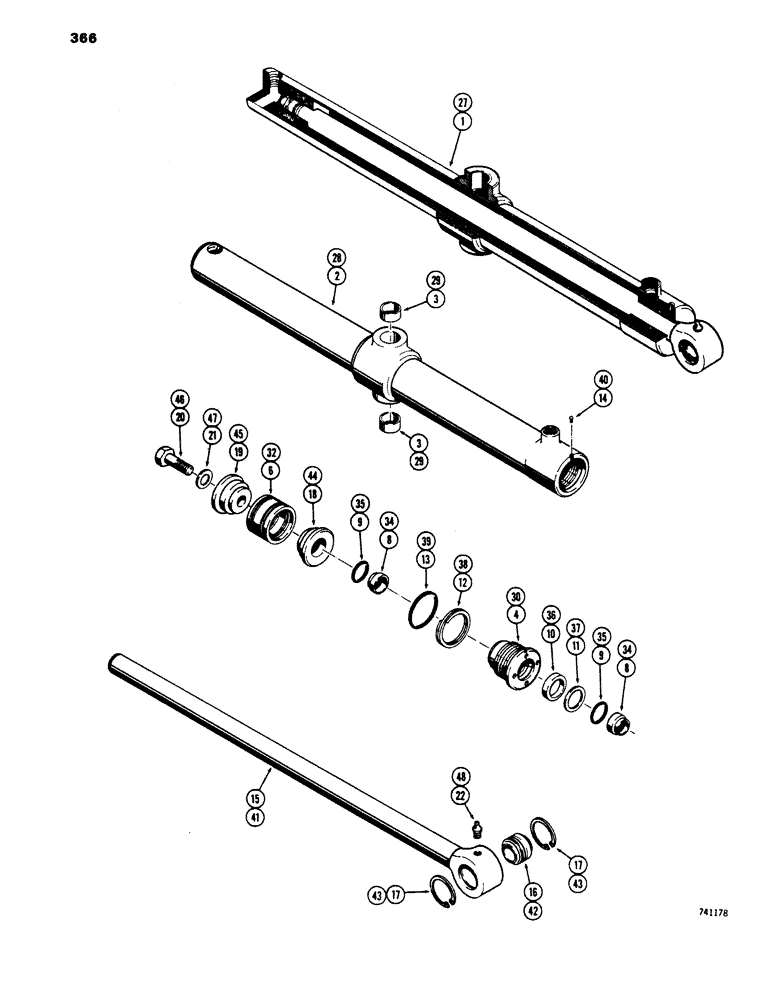

Запчасти Case 450 (366) - D34790 LIFT CYLINDER - ANGLE TILT DOZER, GLAND HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D34790

CYLINDER ASSY.

CYLINDER - lift, 2-1/2" dia. x 27-3/8" stroke, Includes: Ref.#2 - 22

2шт.

2

D36215

TUBE

ASSY. - cylinder body, Includes: Ref.#3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnions

2шт.

4

D45065

GLAND

- Use G32732 gland assembly - parts list Fig. 368

1шт.

6

G33193

PACKING

ASSY. - piston (Replaces D28373)

1шт.

7

D42867

GLAND

KIT - gland repair, Not shown, Includes: Ref.#8 - 14

1шт.

8

D27705

WIPER

- piston rod, inner & outer (split type)

2шт.

9

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - wiper seal (1-3/8 x 1-7/8 x 1/8")

2шт.

10

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod (1-1/4 x 1-3/4 x 7/16")

1шт.

11

D28497

RING

- piston seal back-up

1шт.

12

D27856

RING

- gland "O" ring back-up

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

15

D36214

PISTON ROD

ROD ASSY. - piston (1-1/4" dia.) (w/o identification ring), Includes: Ref. #16 & 17

1шт.

16

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod (self-aligning)

1шт.

17

D27833

SNAP RING,1.625", Int, #162

RING, Snap, , bushing 1.625", Int, #162

2шт.

18

NLS

NO LONGER SERVICED

PISTON - split (rod end) (w/o identification ring)

1шт.

19

D28364

PISTON

- split (bolt end)

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.)

1шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

27

D34301

NO LONGER SERVICED

CYLINDER - lift, 2-1/2" dia. x 30-3/8" stroke, G34301 - angle dozer gland has split outer rod wiper, Includes: Ref.#28 - 48

2шт.

28

D35093

TUBE

ASSY. - cylinder body, G34301 lift cylinder - angle dozer gland has split outer rod wiper, Includes: Ref.#29

1шт.

29

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube, G34301 lift cylinder - angle dozer gland has split outer rod wiper

2шт.

30

D45065

GLAND

- Use G32732 gland assembly - parts list Fig. 368, G34301 lift cylinder - angle dozer has split outer rod wiper

1шт.

32

G33193

PACKING

ASSY. - piston (Replaces D28373), G34301 lift cylinder - angle dozer gland has split outer rod wiper

1шт.

33

D42867

GLAND

KIT - gland repair, Not shown, G34301 lift cylinder - angle dozer has split outer rod wiper, Includes: Ref.#34 - 40

1шт.

34

D27705

WIPER

- piston rod, inner & outer (split type), G34301 lift cylinder - angle dozer gland has split wiper

2шт.

35

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - wiper seal (1-3/8 x 1-7/8 x 1/8"), G34301 lift cylinder - angle dozer gland has split outer rod

2шт.

36

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod (1-1/4 x 1-3/4 x 7/16"), G34301 lift cylinder - angle dozer gland has split outer wiper

1шт.

37

D28497

RING

- piston seal back-up, G34301 lift cylinder - angle dozer gland has split outer rod wiper

1шт.

38

D27856

RING

- gland "O" ring back-up, G34301 lift cylinder - angle dozer has split outer rod wiper

1шт.

39

A29318

PIN

"O" RING - gland (2-1/2 x 2-3/4 x 1/8"), G34301 lift cylinder - angle dozer has split outer rod wiper

1шт.

40

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G34301 lift cylinder - angle dozer has split outer rod wiper

1шт.

41

D34728

PISTON ROD

ROD ASSY. - piston (1-1/4" dia.) (w/o identification ring), G34301 lift cylinder- angle dozer gland has split outer wiper, Includes: Ref.#42

1шт.

42

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod (self-aligning), G34301 lift cylinder - angle dozer gland has split outer wiper

1шт.

43

D27833

SNAP RING,1.625", Int, #162

RING, Snap, , bushing, G34301 lift cylinder - angle dozer gland has split outer rod wiper 1.625", Int, #162

2шт.

44

NLS

NO LONGER SERVICED

PISTON - split (rod end) (w/o identification ring), G34301 lift cylinder - angle dozer gland has split outer rod wiper

1шт.

45

D28364

PISTON

- split (bolt end), G34301 lift cylinder - angle dozer gland has split outer rod wiper

1шт.

46

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.), G34301 lift cylinder - angle dozer gland has split outer rod wiper

1шт.

47

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt, G34301 lift cylinder- angle dozer gland has split outer rod wiper

1шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G34301 lift cylinder- angle dozer gland has split outer rod wiper

1шт.
