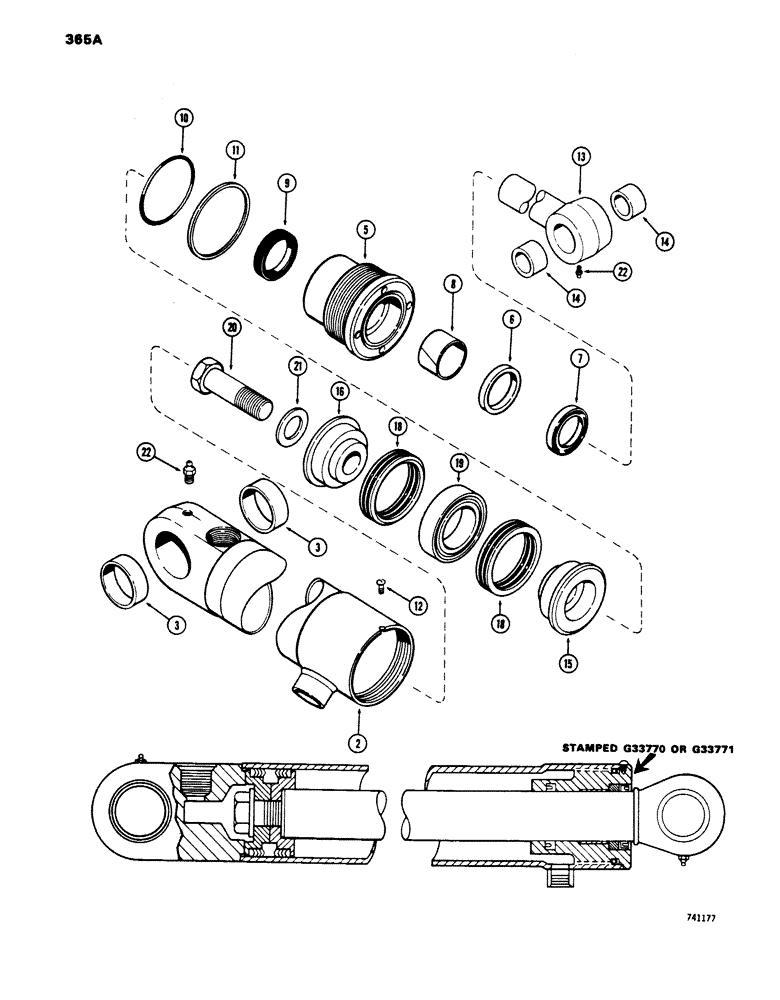

Запчасти Case 450 (365A) - G33770 & G33771 CLAM CYLINDERS, USED ON D46899 4-IN-1 BUCKET, GLAND IS STAMPED W/CYLINDER PT NUMBER (07) - HYDRAULIC SYSTEM

1

G33770

HYDRAULIC CYLINDER

CYLINDER - clam, R.H. (3" dia. x 10-1/2" stroke) Not shown, Includes: Ref.#2 - 22

1шт.

1

G33771

CYLINDER BLOCK

CYLINDER - clam, L.H. (3" dia. x 10-1/2" stroke) Not shown, Includes: Ref.#2 - 22

1шт.

2

D46911

CYLINDER

TUBE ASSY. - cylinder body, right hand (Replaces D36911), Includes: Ref.#3

1шт.

2

D46910

TUBE

ASSY. - cylinder body, left hand, Includes: Ref.#3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G34328

GLAND

ASSY. - (hand stamp for identification), Includes: Ref.#5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit P/N G34332

1шт.

8

G34302

BEARING

- center

1шт.

Part of seal kit P/N G34332

1шт.

9

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of seal kit P/N G34332

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G34332

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G34332

1шт.

12

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33467

ROD

ASSY. - piston (1-1/2" dia.), Includes: Ref.#14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

15

G33150

PISTON

- split (rod end)

1шт.

16

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref.#18 & 19

1шт.

Part of seal kit P/N G34332

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 1/8")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G34332

SEAL

KIT - cylinder repair, Includes Refs. 7, 8, 9, 10, 11 and G33151 (Replaces G34322)

1шт.
