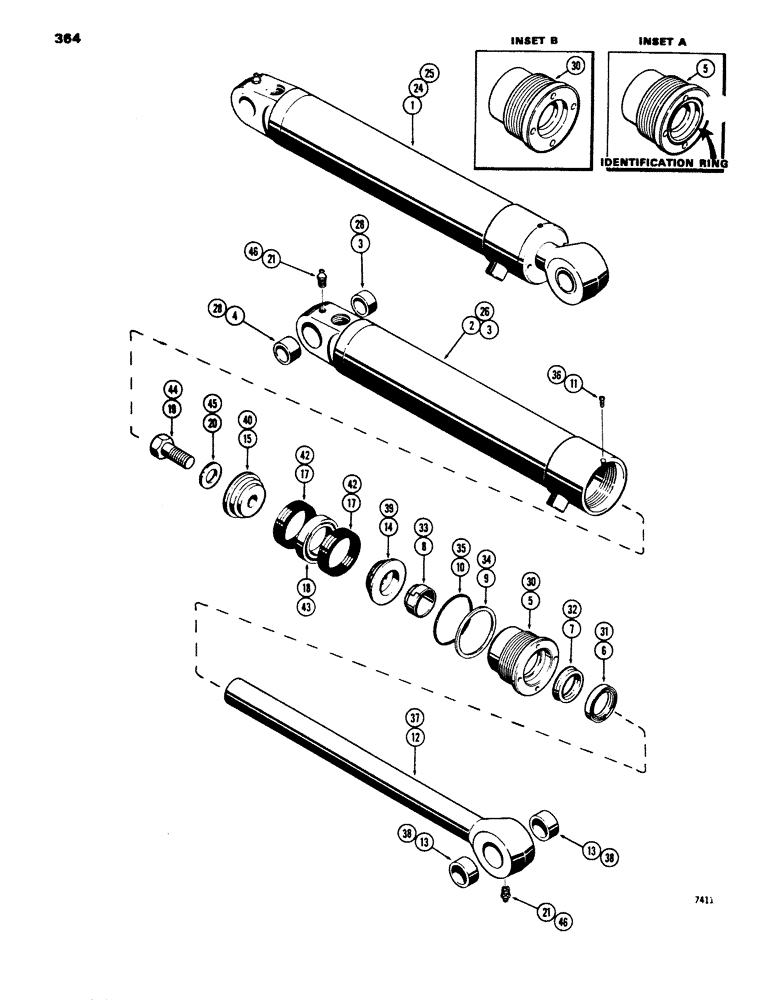

Запчасти Case 450 (364) - G33770 AND G33771 CLAM CYLINDERS, USED ON D46899 4-IN-1 BUCKET, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33770

HYDRAULIC CYLINDER

CYLINDER - clam, R.H. (3" dia. x 10-1/2" stroke), Includes: Ref.#2 - 21

1шт.

1

G33771

CYLINDER BLOCK

CYLINDER - clam, L.H. (3" dia. x 10-1/2" stroke), Includes: Ref.#2 - 21

1шт.

2

D46911

CYLINDER

TUBE ASSY. - cylinder body, right hand

1шт.

3

D46910

TUBE

ASSY. - cylinder body, left hand, Includes: Ref.#4

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

5

G33485

GLAND

ASSY. - (w/identification ring) (See Inset A), Includes: Ref.#6 - 10

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit P/N G32292

1шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of seal kit P/N G32292

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner (split type)

1шт.

Part of seal kit P/N G32292

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32292

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G32292

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33467

ROD

ASSY. - piston (1-1/2" dia.) (w/identification ring), Includes: Ref.#13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

G33150

PISTON

- split (rod end) (w/identification ring)

1шт.

15

D28366

PISTON

- split (bolt end)

1шт.

16

G33151

PACKING

ASSEMBLY - piston (Not shown), Includes: Ref.#17 & 18

1шт.

Part of seal kit P/N G32292

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

22

G32292

KIT

- seal, Includes Refs. 6, 7, 8, 9, 10, 16, 31, 32, 33, 34, 35 and 41 Not shown

1шт.

24

G32160

CYLINDER - clam, R.H. (3" dia. x 10-1/2" stroke), G32160 & 32161 used on D46899 4-in-1 bucket

1шт.

25

G32161

CYLINDER - clam, L.H. (3" dia. x 10-1/2" stroke), G32160 & 32161 used on D46899 4-in-1 bucket, Includes: Ref.#26 - 46

1шт.

26

D46911

CYLINDER

TUBE ASSY. - cylinder body, right hand, G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

27

D46910

TUBE

ASSY. - cylinder body, left hand, G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket, Includes: Ref.#28

1шт.

28

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube, G32160 & 32161clam cylinders used on D46899 4-in-1 bucket

2шт.

30

G32734

GLAND

ASSY. - (w/o identification ring) (See Inset B), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket, Includes: Ref.#31 - 35

1шт.

31

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

Part of seal kit P/N G32292

1шт.

32

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16"), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

Part of seal kit P/N G32292

1шт.

33

D27706

WIPER SEAL

WIPER - piston rod, inner (split type), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

Part of seal kit P/N G32292

1шт.

34

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up, G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

Part of seal kit P/N G32292

1шт.

35

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8"), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

Part of seal kit P/N G32292

1шт.

36

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

37

D32143

EYE

ROD - piston (1-1/2" dia.) Service with G33487 rod, G33150 piston and G33485 gland assembly - Ref. 5 above, G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket, Includes: Ref:# 38

1шт.

38

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod, G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

2шт.

39

D28365

PISTON

- split (rod end) (w/out identification ring), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

40

D28366

PISTON

- split (bolt end), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

41

G33151

PACKING

- piston (Not shown), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket, Includes: Ref.#42 & 43

1шт.

Part of seal kit P/N G32292

1шт.

42

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

2шт.

43

NSS

NOT SOLD SEPARAT

RING - center bearing, G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

44

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

45

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64"), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.

46

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

2шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10, 16, 31, 32, 33, 34, 35 and 41, G32160 & 32161 clam cylinders used on D46899 4-in-1 bucket

1шт.
