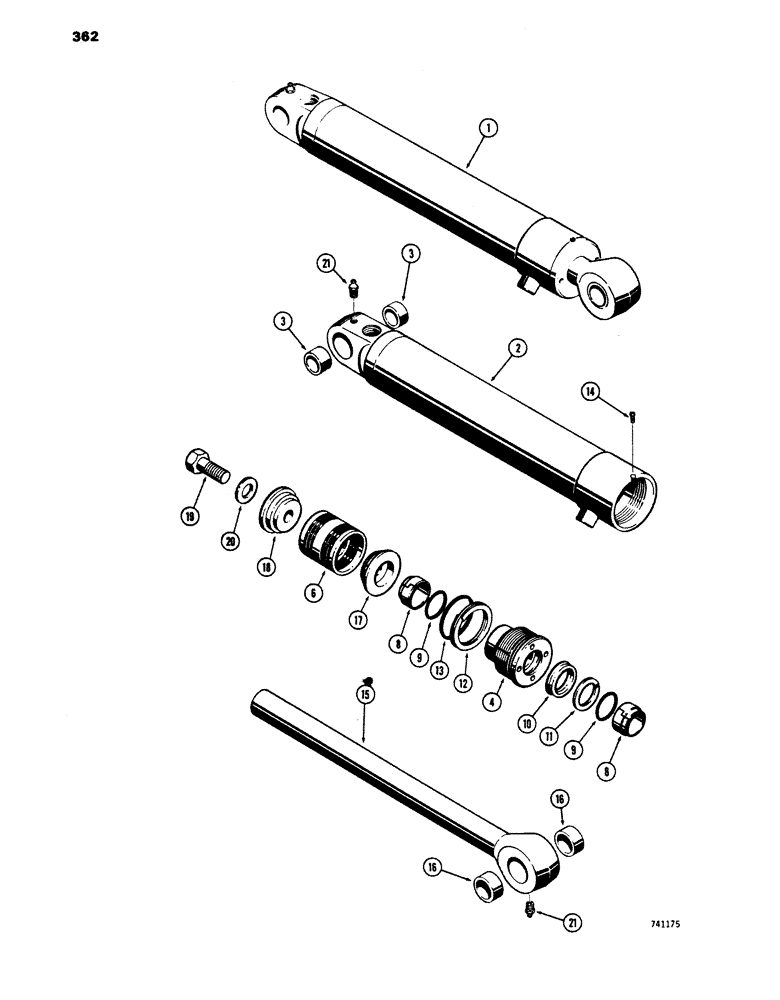

Запчасти Case 450 (362) - D46918 AND D46919 CLAM CYLINDERS, USED ON D46899 4-IN-1 BUCKET, GLAND HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D46918

CYLINDER - clam, R.H. (3" dia. x 10-1/2" stroke), Includes: Ref.#2 - 21

1шт.

1

D46919

CYLINDER - clam, L.H. (3" dia. x 10-1/2" stroke), Includes: Ref.#2 - 21

1шт.

2

D46911

CYLINDER

TUBE ASSY. - cylinder body, right hand, Includes: Ref.#3

1шт.

2

D46910

TUBE

ASSY. - cylinder body, left hand, Includes: Ref.#3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

D45067

GLAND

- cylinder (Service with G32734 gland assembly - parts list Fig. 364)

1шт.

D42870

GASKET KIT

KIT - packing, Includes: Ref.#6

1шт.

6

G33151

PACKING

ASSY. - piston (Replaces D28374)

1шт.

D42870

GASKET KIT

KIT - gland repair, Includes: Ref.#8 - 14

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner & outer (split type)

2шт.

9

D27878

O-RING,1.609" ID x 1.887" OD

"O" RING - wiper seal

2шт.

10

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

11

D28498

RING

- piston seal back-up

1шт.

12

D28049

RING

- gland "O" ring back-up

1шт.

13

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

15

D32143

EYE

ROD - piston (1-1/2" dia.) Service with G33467 rod, G33150 piston and G33485 gland assembly - parts list Fig. 364, Includes: Ref.#16

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

17

D28365

PISTON

- split (rod end) (w/o identification ring)

1шт.

18

D28366

PISTON

- split (bolt end)

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.)

1шт.

20

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.
