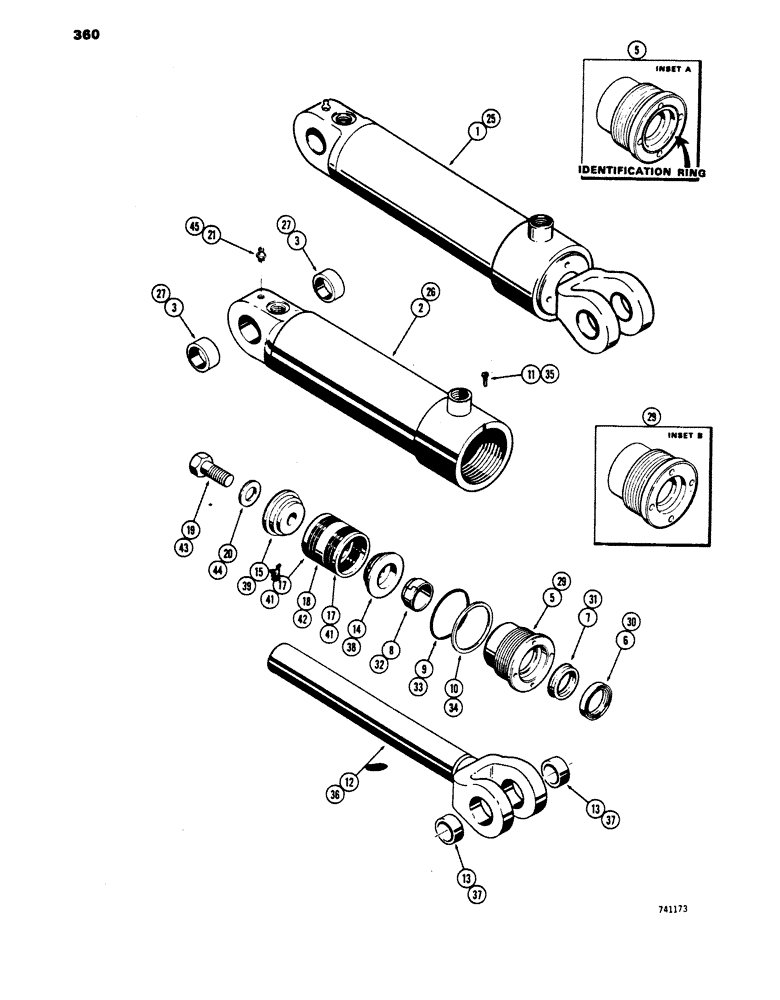

Запчасти Case 450 (360) - G33555 LOADER HYDRA-LEVELING CYLINDER, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33555

CYLINDER

- hydra-leveling (3" dia. x 7-1/4" stroke), Includes: Ref.#2 - 21

2шт.

2

G101225

CYLINDER

TUBE ASSY. - cylinder body (Replaces D35129), Includes: Ref.#3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

4

1542986C1

CYLINDER END CAP

GLAND ASSEMBLY - not shown (Replaces G33579), Includes: Ref.#5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)(See Inset A)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit P/N G32289

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of seal kit P/N G32289

1шт.

8

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of seal kit P/N G32289

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G32289

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32289

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33556

ROD

ASSY. - piston (1-3/4" dia.)(w/identification ring), Includes: Ref.#13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

G33331

PISTON

- split (rod end)(w/identification ring)

1шт.

15

D28896

PISTON

- split (bolt end)

1шт.

16

G33151

PACKING

ASSEMBLY - piston (Not shown), Includes: Ref.#17 & 18

1шт.

Part of seal kit P/N G32289

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32289

SEAL

KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10, 16, 30, 31, 32, 33, 34 and 40

1шт.

25

G32141

CYLINDER

- hydra-leveling (3" dia. 7-1/4" stroke), G32141 cylinder, gland has solid outer rod wiper, Includes: Ref.#26 - 45

1шт.

26

D35129

CYLINDER

TUBE ASSY. - cylinder body, G32141 hydra-leveling cylinder, gland has solid outer rod wiper, Includes: Ref.#27

1шт.

27

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube, G32141 hydra-leveling cylinder, gland has solid outer rod wiper

2шт.

28

G32735

ASSEMBLY - not shown, G32141 hydra-leveling cylinder, has solid outer rod wiper, Includes: Ref.#29 - 45

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring)(See Inset B), G32141 hydra-leveling cylinder, has solid outer rod wiper

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16"), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

31

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

Part of seal kit P/N G32289

1шт.

32

D27432

SHIM

- piston rod, inner (split type), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

Part of seal kit P/N G32289

1шт.

33

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8"), G32141 hydra-leveling cylinder, has solid outer rod wiper

1шт.

Part of seal kit P/N G32289

1шт.

34

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up, G32141 hydra-leveling cylinder, has solid outer rod wiper

1шт.

Part of seal kit P/N G32289

1шт.

35

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32141 hydra-leveling cylinder, has solid outer rod wiper

1шт.

36

D35126

ROD

ASSY. - piston (1-3/4" dia.)(w/o identification ring), G32141 hydra-leveling cylinder, gland has solid outer rod wiper, Includes: Ref.#37

1шт.

37

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod, G32141 hydra-leveling cylinder, gland has solid outer rod wiper

2шт.

38

D28897

PISTON

- split (rod end)(w/o identification ring), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

39

D28896

PISTON

- split (bolt end), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

40

G33151

PACKING

ASSEMBLY - piston (Not shown), G32141 hydra-leveling cylinder, gland has solid outer rod wiper, Includes: Ref.#41 & 42

1шт.

Part of seal kit P/N G32289

1шт.

41

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

2шт.

42

NSS

NOT SOLD SEPARAT

RING - center bearing, G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

43

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, retaining, G32141 hydra-leveling cylinder, gland has solid outer rod wiper Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

44

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64"), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.

G32289

SEAL

KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10, 16, 30, 31, 32, 33, 34 and 40, G32141 hydra-leveling cylinder, gland has solid outer rod wiper

1шт.
