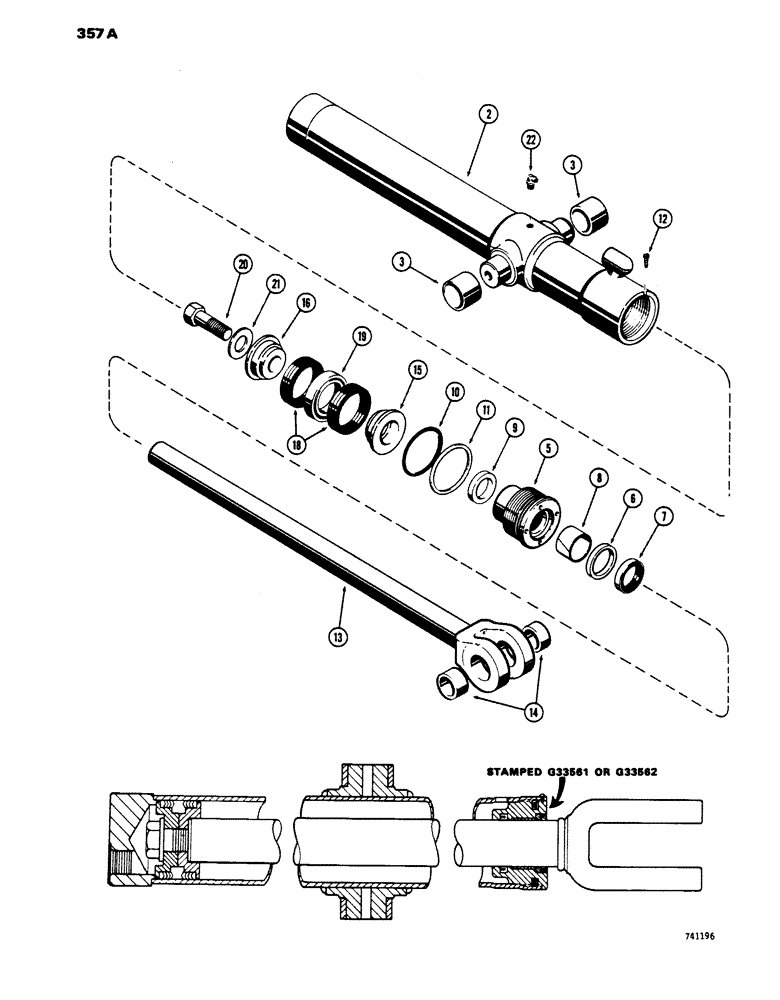

Запчасти Case 450 (357A) - G33561 AND G33562 LOADER DUMP CYLINDERS, GLAND IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G33561

CYLINDER

- lift, L.H. (3" dia. x 23-1/2" stroke) Not shown

1шт.

1

G33562

CYLINDER

- lift, R.H. (3" dia. x 23-1/2" stroke) Not shown, Includes: Ref.#2 - 22

1шт.

2

D35103

TUBE

ASSY. - cylinder body, left hand

1шт.

2

D35102

TUBE

ASSY. - cylinder body, right hand, Includes: Ref.#3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

G34633

GLAND

ASSY. - (hand stamp for identification), Includes: Ref.#5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit P/N G34643

1шт.

8

PG34621

WASHER

BEARING - center

1шт.

Part of seal kit P/N G34643

1шт.

9

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of seal kit P/N G34643

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G34643

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G34643

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33563

ROD

ASSY. - piston (1-3/4" dia.), Includes: Ref.#14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33331

PISTON

- split (rod end)

1шт.

16

D28896

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref.#18 & 19

1шт.

Part of seal kit P/N G34643

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

1шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x1/8")

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 degree)

1шт.

G34643

GASKET KIT

SEAL KIT - cylinder repair, Includes Refs. 7, 8, 9, 10, 11 and G33151

1шт.
