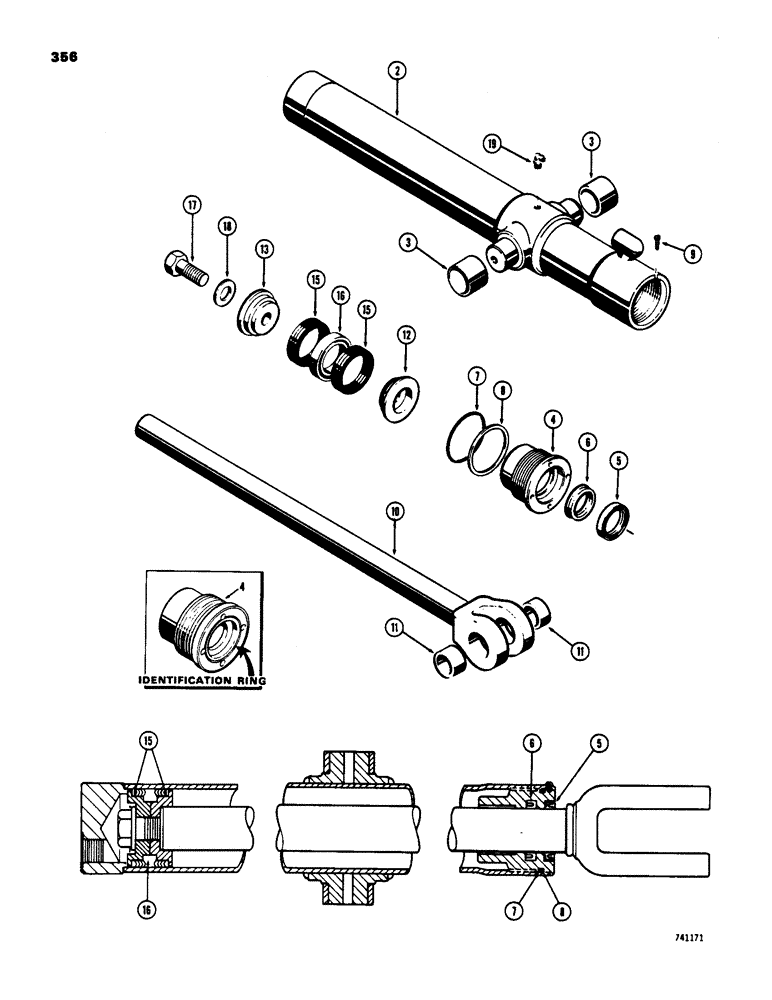

Запчасти Case 450 (356) - G33561 AND G33562 LOADER DUMP CYLINDERS, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33561

CYLINDER

- lift, L.H. (3" dia. 23-1/2" stroke)

1шт.

1

G33562

CYLINDER

- lift, R.H. (3" dia. x 23-1/2 " stroke), Includes: Ref.#2 - 19

1шт.

2

D35103

TUBE

ASSY. - cylinder body, left hand

1шт.

2

D35102

TUBE

ASSY. - cylinder body, right hand, Includes: Ref.#3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

4

G33570

GLAND

ASSY. - w/bushing (w/identification ring), Includes: Ref.#5 - 8

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit P/N G33572

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of seal kit P/N G33572

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G33572

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G33572

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

G33563

ROD

ASSY. - piston (1-3/4" dia.)(w/identification ring), Includes: Ref.#11

1шт.

11

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

12

G33331

PISTON

- split (rod end)(w/identification ring)

1шт.

13

D28896

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref.#15 & 16

1шт.

Part of seal kit P/N G33572

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 degree)

1шт.

G33572

SEAL

KIT - cylinder repair, Includes Refs. 5, 6, 7, 8 and G33151

1шт.
