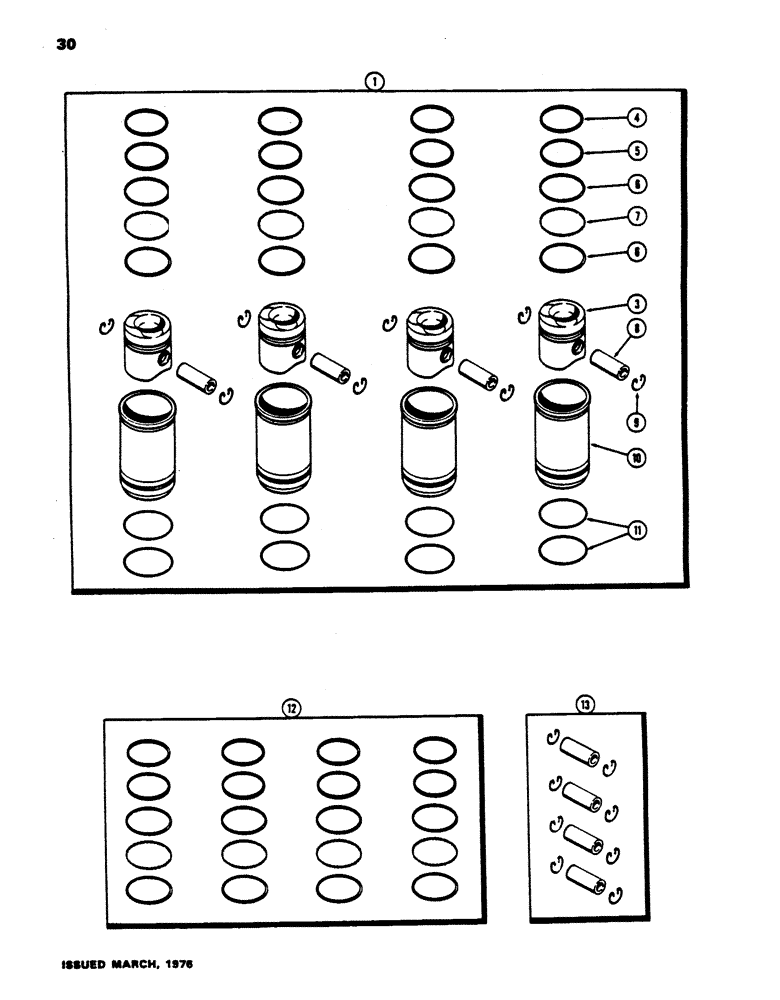

Запчасти Case 450 (030) - PISTONS, (188) DIESEL ENGINE (01) - ENGINE

1

A42813

PISTON

ASSY. - (Set of 4) (Replaces A37764, A42002 & A42014) (it is recommended valve grind kit A42001 also be ordered), Includes: Ref.#3 - 13 and P/N A42812

1шт.

A42812

SLEEVE

PISTON ASSY. - (Set of 1) (Replaces A37769, A42003 & A42015) (it is recommended valve grind kit A42001 also be ordered), Includes: Ref.#3 - 10

4шт.

3

A38424

PISTON

1шт.

4

G4819

RING

- compression, 1st groove (Ref.# 12)

1шт.

5

G4817

RING

- compression, 2nd groove (Ref.#12)

1шт.

6

G47155

RAIL

RING - oil control, 3rd groove (See Ref.# 12)

2шт.

7

G47174

SPRING

SPACER - oil control ring (Rer.# 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. #13)

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining (Ref.#13)

2шт.

10

A39006

SLEEVE

- piston (Replaces A38638)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve sealing

2шт.

12

G37075

RING

KIT - piston re-ring (Set of 4)

1шт.

13

A35771

KIT

PIN SET - (Set of 4 pins & 8 rings)

1шт.
