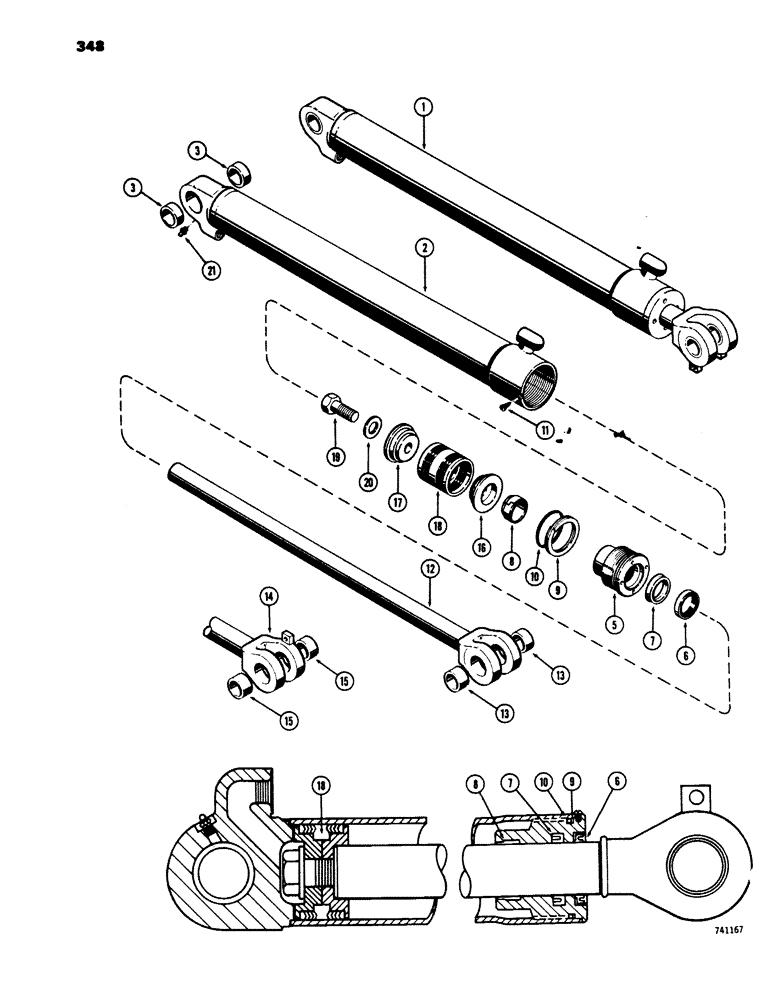

Запчасти Case 450 (348) - G32138, G32139 AND G32164 LOADER LIFT CYLINDERS, GLAND HAS SOLID OUTER ROD WIPER - NO I.D. RING (07) - HYDRAULIC SYSTEM

1

G32139

CYLINDER - lift, L.H. (3-1/2" dia. x 31" stroke), Includes: Ref.#2 - 21

1шт.

1

G32138

CYLINDER - lift, R.H. (3-1/2" dia. x 31" stroke) Models without anti-rollback feature, Includes: Ref.#2 - 21

1шт.

1

G32164

CYLINDER

- lift, R.H. (3-1/2" dia. x 31" stroke) Models with anti-rollback feature, Includes: Ref.#2 - 21

1шт.

2

D35063

TUBE

ASSY. - cylinder body, left hand, Includes: Ref.#3

1шт.

2

D35064

TUBE

ASSY. - cylinder body, right hand, Includes: Ref.#3

1шт.

3

D35071

BUSHING

- tube

2шт.

G32736

GLAND

ASSY. - (w/o identification ring), Includes: Ref.#5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit P/N G32290

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of seal kit P/N G32290

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of seal kit P/N G32290

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32290

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit P/N G32290

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D35057

PISTON ROD

ROD - piston (2" dia.) G32139 and G32138 cylinders, Includes: Ref.#13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

D42739

ROD ASSY.

ROD - piston (2" dia.) G33599 cylinder, Includes: Ref.#15

1шт.

15

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

1шт.

16

D28368

PISTON

- split (rod end)(w/o identification ring)

1шт.

17

D28357

PISTON - split (bolt end)

1шт.

18

G33237

PACKING

ASSY. - piston

1шт.

Part of seal kit P/N G32290

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, retaining Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32290

SEAL

KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10 and 18

1шт.
