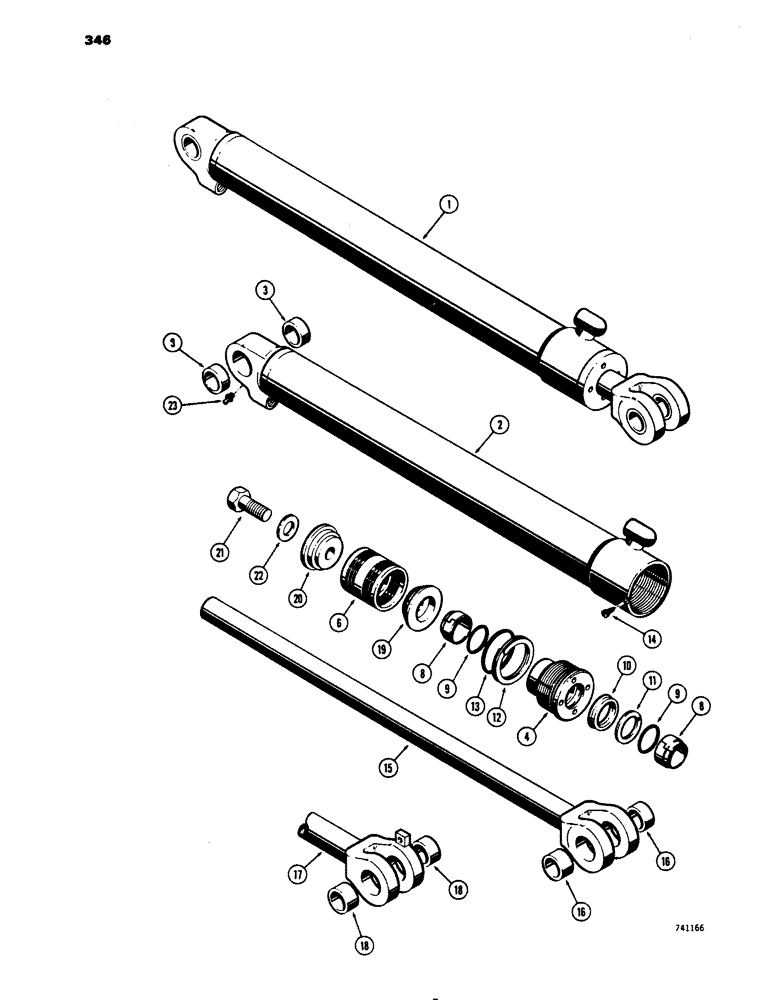

Запчасти Case 450 (346) - D34741, D34742 AND D42738 LOADER LIFT CYLINDERS, GLAND HAS (07) - HYDRAULIC SYSTEM

1

D34742

CYLINDER

- lift, L.H. (3-1/2" dia. x 31" stroke), Includes: Ref.#2 - 23

1шт.

1

D34741

HYDRAULIC CYLINDER

CYLINDER - lift, R.H. (3-1/2" dia. x 31" stroke) Models without anti-rollback feature, Includes: Ref.#2 - 23

1шт.

1

D42738

CYLINDER ASSY.

CYLINDER - lift, R.H. (3-1/2" dia. x 31" stroke) Models with anti-rollback feature, Includes: Ref.#2 - 23

1шт.

2

D35063

TUBE

ASSY. - cylinder body, left hand, Includes: Ref.#3

1шт.

2

D35064

TUBE

ASSY. - cylinder body, right hand, Includes: Ref.#3

1шт.

3

D35071

BUSHING

- tube

2шт.

4

D45070

GLAND

- cylinder (Service with G32736 gland assembly - parts list Fig. 348)

1шт.

D37357

KIT

- packing, Includes: Ref.#6

1шт.

6

D36963

PACKING

ASSY. - piston

1шт.

D42874

PACKING GLAND

KIT - gland repair, Includes: Ref.#8 - 14

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (split type)

2шт.

9

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - wiper seal (2-1/8 x 2-3/8 x 1/8")

2шт.

10

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- piston seal back-up

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

13

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8 - 32 x 1/4" self tapping)

1шт.

15

D35057

PISTON ROD

ROD ASSY. - piston (2" dia.) (w/o identification ring) (used with D34741 & D34742 cylinders), Includes: Ref.#16

1шт.

16

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

17

D42739

ROD ASSY.

- piston (2" dia.) (used w/D42738 cylinder) (w/o identification ring), Includes: Ref.#18

1шт.

18

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

19

D28368

PISTON

- split (rod end) (w/o identification ring)

1шт.

20

D28367

PISTON

- split (bolt end)

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, retaining Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

22

G32351

WASHER

- piston bolt

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
