Запчасти Case 450 (344) - D42415 ULRICH CLAM CYLINDER (07) - HYDRAULIC SYSTEM

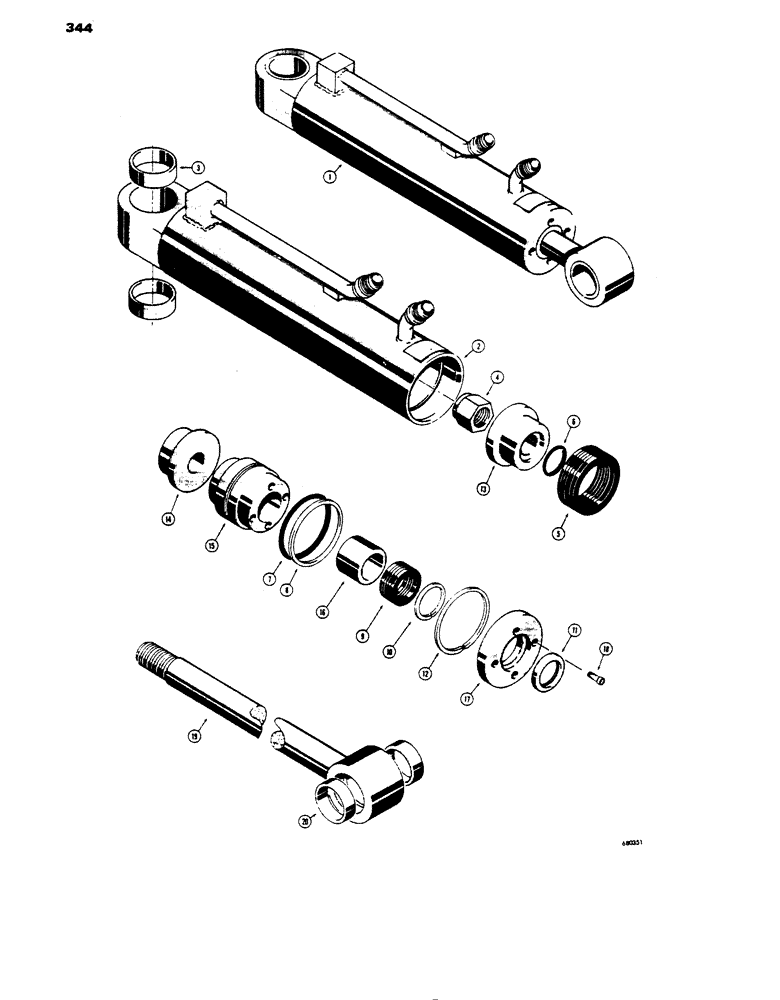

Схема запчастей Case 450 - (344) - D42415 ULRICH CLAM CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D42415

CYLINDER - hydraulic, clam (3" I.D. x 7-3/4" stroke), Includes: Ref.#2 - 20

1шт.

2

D42425

TUBE - cylinder, Includes: Ref.#3

1шт.

3

D42423

BUSHING

- tube

2шт.

D39113

KIT

- packing, Includes: Ref.#4 - 12

1шт.

4

131-39

NUT,1"-14

NUT - hex., lock (1" - 14 NF)

1шт.

5

D39106

MISC PACKAGING

PACKING - piston, "V"

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

7

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

8

D39108

WASHER

RING - backup

1шт.

9

D39104

MISC PACKAGING

PACKING - rod, "V"

1шт.

10

D39099

SHIM,.030" Thk

4шт.

11

D39107

SEAL

- rod wiper

1шт.

12

D39111

SNAP RING,#300, 3.188", Int, Spiral

RING - retaining

1шт.

13

D39110

PISTON - half, nut end

1шт.

14

D39109

PISTON - half, eye end

1шт.

15

D39103

GLAND - cylinder

1шт.

16

D39098

BUSHING

1шт.

17

D39097

CAP - cylinder, tube

1шт.

18

165-127

HHCS - socket head, self locking (#10 - 24 NC x 1/2")

4шт.

19

D42424

ROD - piston (1-1/4"), Includes: Ref.#20

1шт.

20

D42423

BUSHING

- rod

2шт.

Выбрано товаров: 21
