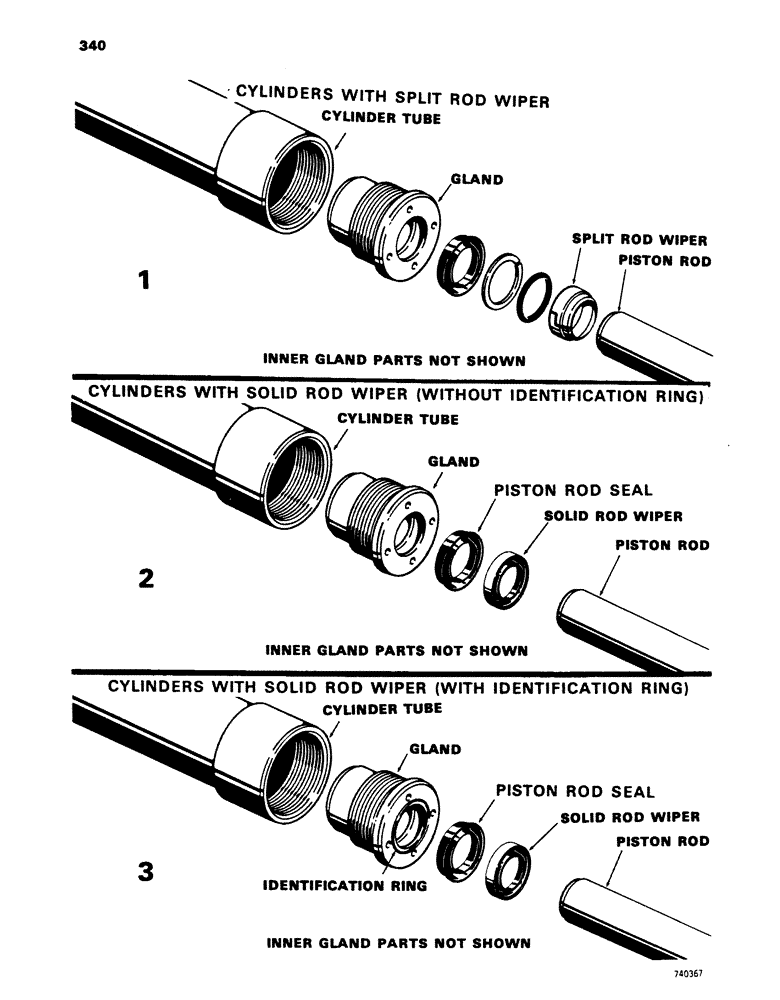

Запчасти Case 450 (340) - CYLINDER IDENTIFICATION, DOZER TILT CYLINDERS (07) - HYDRAULIC SYSTEM

1

D34792

CYLINDER - Angle Tilt Dozer Models with 95.5" wide dozing blade (Outer rod wiper is split) Parts list Fig. 384

2шт.

2

G32170

CYLINDER - Angle Tilt Dozer Models with 95.5" wide dozing blade (Outer rod wiper is solid) Parts list Fig. 386

2шт.

3

G33609

CYLINDER - Angle Tilt Dozer Models with 95.5" wid dozing blade (Gland has identification ring) Parts list Fig. 386

2шт.

3

G34345

HYDRAULIC CYLINDER

CYLINDER - Angle Tilt Dozer Models with 87.7" wide dozing blade (Gland has identification ring and/or is stamped with part no.) Parts list Figs. 388 and 389A

2шт.

1

D35124

CYLINDER - outer rod wiper is split, parts list Fig. 390, ripper cylinders

1шт.

2

G32468

CYLINDER

- outer rod wiper is solid, parts list Fig. 392, ripper cylinders

1шт.

3

G33466

HYDRAULIC CYLINDER

CYLINDER - gland has identification ring and/or is stamped with part no. Parts list Figs. 392 and 393A, ripper cylinders

1шт.
