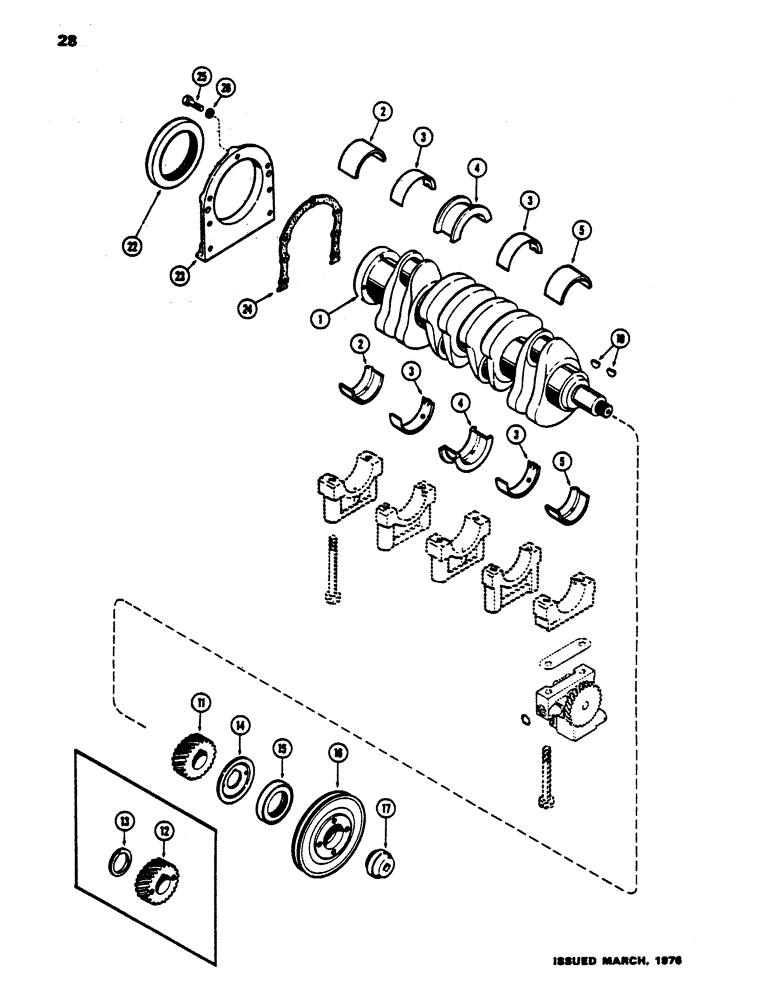

Запчасти Case 450 (028) - CRANKSHAFT, (188) DIESEL ENGINE (01) - ENGINE

1

A39146

CRANKSHAFT

- engine (Replaces A37211)

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER SET - rear main brg., (Std.) (Set of 2)

1шт.

2

A36496

LINING

LINER SET - rear main brg., (-.002') (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER SET - rear main brg., (-.010") (Set of 2)

1шт.

2

A36498

KIT

LINER SET - rear main brg., (-.020") (Set of 2)

1шт.

2

A36499

BEARING LINER

LINER SET - rear main brg., (-.030") (Set of 2)

1шт.

3

A36485

LINING

LINER SET - intermediate main brg. (Std.) (Set of 2)

2шт.

3

A36486

LINING

LINER SET - intermediate main brg. (-.002") (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER SET - intermediate main brg. (-.010") (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER SET - intermediate main brg. (-.020") (Set of 2)

2шт.

3

A36489

LINING

LINER SET - intermediate main brg. (-.030") (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER SET - center main brg. (Std.) (Set of 2)

1шт.

4

A36491

LINING

LINER SET - center main brg. (-.002") (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - center main brg. (-.010") (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - center main brg. (-.020") (Set of 2)

1шт.

4

A36494

LINING

LINER SET - center main brg. (-.030") (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER SET - front main brg. (Std.) (Set of 2)

1шт.

5

A36481

LINING

LINER SET - front main brg. (-.002") (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER SET - front main brg. (-.010") (Set of 2)

1шт.

5

A36483

LINING

LINER SET - front main brg. (-.020") (Set of 2)

1шт.

5

A36484

LINING

LINER SET - front main brg. (-.030") (Set of 2)

1шт.

10

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft (1/4 x 1-1/16" Hi-Pro)

2шт.

11

A39288

GEAR

- crankshaft (1st used eng. ser. no. 2718083) (1/5/32" wide) (do not use spacer w/this gear)

1шт.

12

A29263

GEAR

- crankshaft (1-1/16" wide) (must use spacer w/this gear), Serial Range: -2718083

1шт.

13

A29294

BUSHING

SPACER - thrust, crankshaft (3/32") (used w/A29263 gear), Serial Range: -2718083

1шт.

14

A29259

SLINGER

- oil

1шт.

15

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (2 x 3 x 1/2") (Replaces A36609)

1шт.

16

A50962

PULLEY

- fan & generator drive (Replaces G11342 & A39931)

1шт.

17

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

22

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2") (Replaces A36610 & A39027)

1шт.

23

A38390

RETAINER

- rear oil seal

1шт.

24

A39188

GASKET

- retainer, rear oil seal (Replaces A38196)

1шт.

25

113-25

X

BOLT - 1/4 x 3/4" N.C. hex

4шт.

25

113-26

BOLT

- 1/4 x 1" N.C. hex

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.
