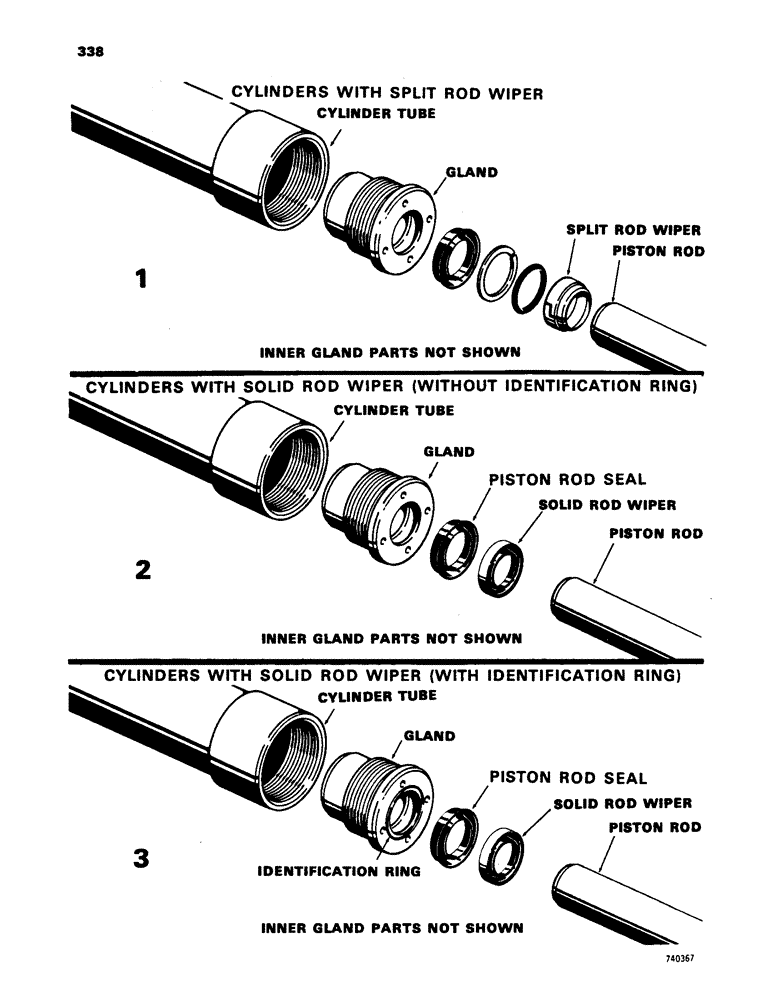

Запчасти Case 450 (338) - CYLINDER IDENTIFICATION, BUCKET CLAM CYLINDERS (07) - HYDRAULIC SYSTEM

D39218

CYLINDER

- 2-3/4" I.D., Fig.342 for visual identification (Parts list Fig. 342)

1шт.

D42415

CYLINDER - 3" I.D., Fig. 344 for visual identification (Parts list Fig. 344)

1шт.

1

D46918

CYLINDER - 3" I.D., R.H. (Outer rod wiper is split) Parts list Fig. 362

1шт.

2

G32160

CYLINDER - 3" I.D., R.H. (Outer rod wiper is solid) Parts list Fig. 364

1шт.

3

G33770

HYDRAULIC CYLINDER

CYLINDER - 3" I.D., R.H. (Gland has identification ring and/or is stamped with part no.) Parts list Figs. 364 and 365A

1шт.

1

D46919

CYLINDER - 3" I.D., L.H. (Outer rod ripper is split) Parts list Fig. 362

1шт.

2

G32161

CYLINDER - 3" I.D., L.H. (Outer rod wiper is solid) Parts list Fig. 364

1шт.

3

G33771

CYLINDER BLOCK

CYLINDER - 3" I.D., L.H. (Gland has identification ring and/or is stamped with part no.) Parts list Figs. 364 and 365A

1шт.

1

D34301

NO LONGER SERVICED

CYLINDER - Angle Dozer (Outer rod wiper is split) Parts list Fig. 366

2шт.

1

D34301

NO LONGER SERVICED

CYLINDER - Angle Dozer (Outer rod wiper is split) Parts list Fig. 366,dozer lift cylinders

2шт.

2

G32475

CYLINDER

- Angle Dozer (Outer rod wiper is solid) Parts list Fig. 368, dozer lift cylinders

2шт.

3

G33359

CYLINDER

- Angle Dozer (Gland has identificaiton ring and/or is stamped with cylinder part no.) Parts list Figs. 368 and 369A, dozer lift cylinders

2шт.

1

D34790

CYLINDER ASSY.

CYLINDER - Angle Tilt Dozer Models with 95.5" wide dozing blade (Outer rod wiper is solid) Parts list Fig. 366, dozer lift cylinders

2шт.

2

G32172

CYLINDER - Angle Tilt Dozer Models with 95.5" wide dozing blade (Outer rod wiper is solid) Parts list Fig. 370, dozer lift cylinders

2шт.

3

G33346

CYLINDER BLOCK

CYLINDER - Angle Tilt Dozer Models with 95.5" wide dozing blade (Gland has identification ring) Parts list Fig. 370,dozer lift cylinders

2шт.

3

G34344

CYLINDER

- Angle Tilt Dozer Models with 87.8" wide dozing blade (Gland has identification ring) Parts list Fig. 372, dozer lift cylinders

2шт.

1

D34302

CYLINDER - Angle Dozer (Outer rod wiper is split) Parts list Fig. 374

2шт.

2

G32461

CYLINDER - Angle Dozer (Outer Rod wiper is solid) Parts list Fig. 376

2шт.

3

G33764

CYLINDER BLOCK

CYLINDER - Angle Dozer (Gland identification ring) Parts list Fig. 376

2шт.

1

D34791

CYLINDER - Angle Tilt Dozer Models with 95.5" wide dozing blade (Outer rod wiper is split) Parts list Fig. 378

2шт.

2

G32583

CYLINDER - Angle Tilt Dozer Models with 95.5" wide dozing blade (Outer rod wiper is solid) Parts list Fig. 380

2шт.

3

G33620

CYLINDER

- Angle Tilt Dozer Model with 95.5" wide dozing blade (Gland has identification ring) Parts list Fig. 380

2шт.

3

G34343

HYDRAULIC CYLINDER

CYLINDER - Angle Tilt Dozer Models with 87.8" wide dozing blade (Gland identification ring and/or is stamped with part no.) Parts list Figs. 382 and 383A

2шт.
