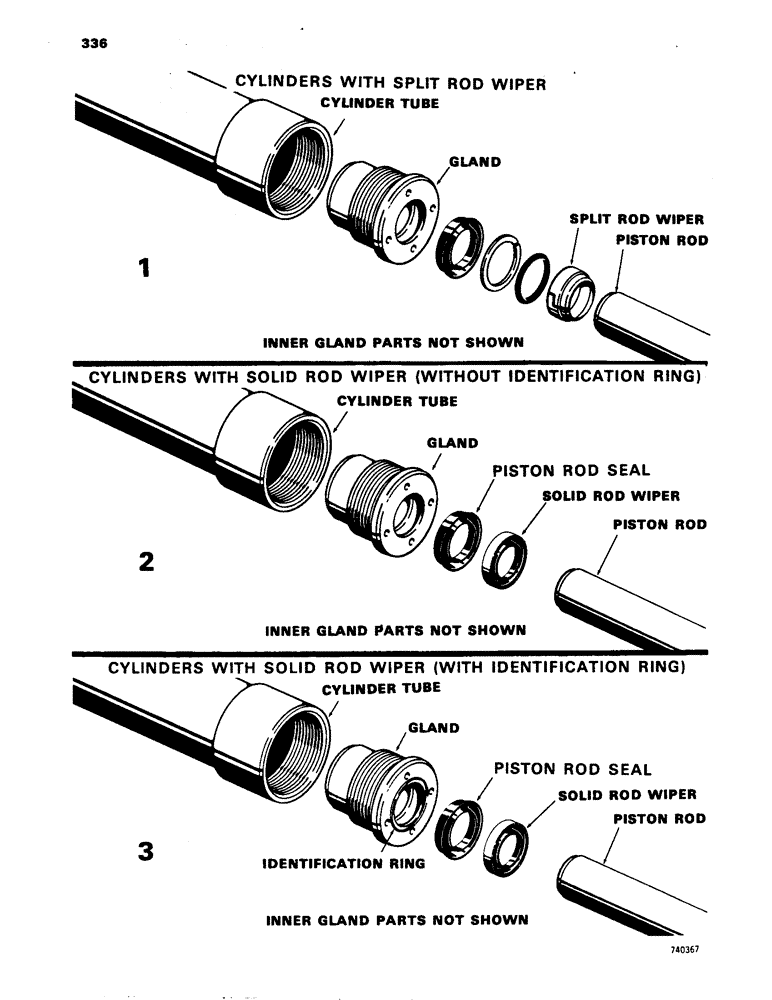

Запчасти Case 450 (336) - CYLINDER IDENTIFICATION, LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

1

D34741

HYDRAULIC CYLINDER

CYLINDER - R.H., without anti-rollback (Outer rod wiper is split) Parts list Fig. 346

1шт.

1

D42738

CYLINDER ASSY.

CYLINDER - R.H., with anti-rollback (Outer rod wiper is split) Parts list Fig. 346

1шт.

2

G32138

CYLINDER - R.H., without anti-rollback (Outer rod wiper is solid) Parts list Fig. 348

1шт.

2

G32164

CYLINDER

- R.H., with anti-rollback (Outer rod wiper is solid) Parts list Fig. 348

1шт.

3

G33599

CYLINDER

- R.H., with anti-rollback (Gland has identification ring and/or is stamped with part no.) Parts list Figs. 350 and 351A

1шт.

3

G33602

CYLINDER

- R.H., without anti-rollback (Gland has identification ring and/or is stamped with part no.) Parts list Figs. 350 and 351A

1шт.

1

D34742

CYLINDER

- L.H. (Outer rod wiper is split) Parts list Fig. 346

1шт.

2

G32139

CYLINDER - L.H. (Outer rod wiper is solid) Parts list Fig. 348

1шт.

3

G33603

CYLINDER

- L.H. (Gland has identification ring and/or is stamped with part no.) Parts list Figs. 350 and 351A

1шт.

1

D34739

HYDRAULIC CYLINDER

CYLINDER - R.H. (Outer rod wiper is split) Parts list Fig. 352, loader dump cylinders

1шт.

2

G32140

CYLINDER

- R.H. (Outer rod wiper is solid) Parts list Fig. 354, loader dump cylinders

1шт.

3

G33562

CYLINDER

- R.H. (Gland has identification ring and/or is stamped with part no.) Parts list Figs.356 and 357A, loader dump cylinders

1шт.

1

D34740

HYDRAULIC CYLINDER

CYLINDER - L.H. (Outer rod wiper is split) Parts list Fig. 352, loader dump cylinders

1шт.

2

G32137

CYLINDER

- L.H. (Outer rod wiper is solid) Parts list Fig. 354, loader dump cylinders

1шт.

3

G33561

CYLINDER

- L.H. (Gland has identification ring and/or is stamped with part no.) Parts list Figs.356 and 357A, loader dump cylinders

1шт.

1

D34738

CYLINDER

- outer rod wiper is split, Parts list Fig. 358

2шт.

2

G32141

CYLINDER

- outer rod wiper is solid, Parts list Fig. 360

2шт.

3

G33555

CYLINDER

- gland has identification ring and/or is stamped with part no. (Parts list Figs.360 and 361A)

2шт.

1

D39720

CYLINDER - grapple, parts list Fig. 342

1шт.
