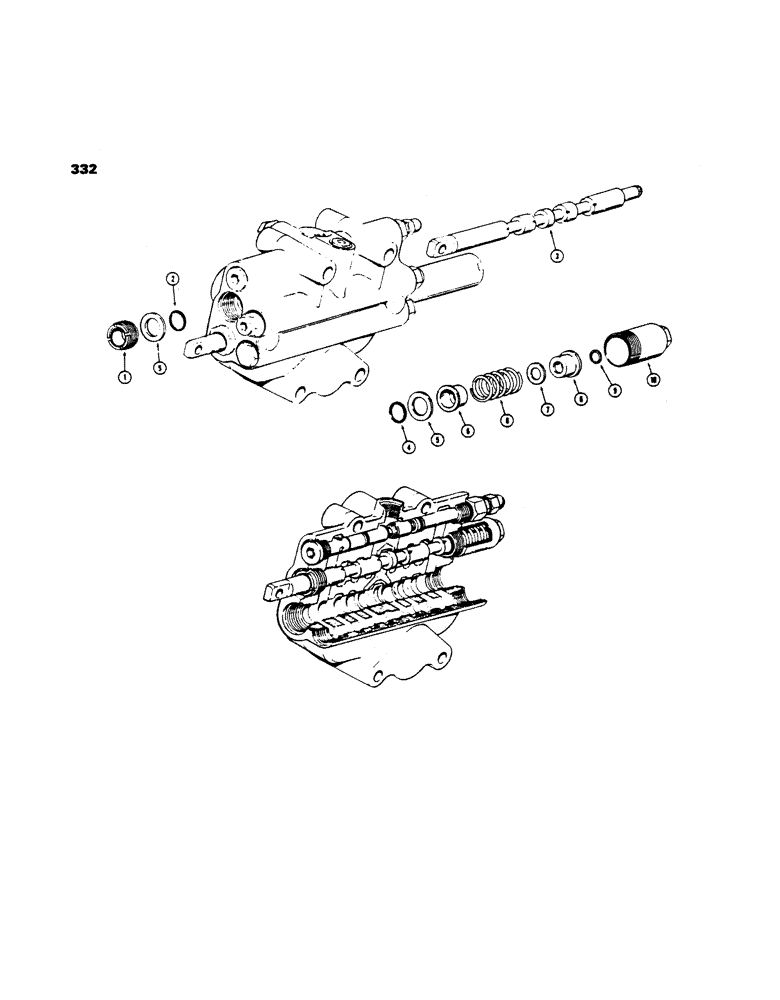

Запчасти Case 450 (332) - THREE POSITION SPOOLS - DOUBLE ACTING, USED ON MODELS W/O RETURN-TO-DIG FEATURE (07) - HYDRAULIC SYSTEM

D37050

SPOOL

ASSEMBLY - three position (Color code - black or letter code - W) .73700" to .73709", Includes: Ref.#1 - 10

1шт.

D37051

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X) .73710" to 73719", Includes: Ref.#1 - 10

1шт.

D37052

SPOOL

ASSEMBLY - three position (Color code - yellow or letter code - Y) .73720" to 73729", Includes: Ref.#1 - 10

1шт.

D37053

SPOOL

ASSEMBLY - three position (Color code - green or letter code - Z) .73730" to .73740", Includes: Ref.#1 - 10

1шт.

1

L30744

GLAND

AND WIPER - spool

1шт.

2

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O"ring, gland

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O"ring

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

7

A25286

WASHER

- special

1шт.

8

A14534

SPRING

- spool return

1шт.

9

A27020

RING

SNAP RING - spring retainer

1шт.

10

A14529

CAP

- spool

1шт.
