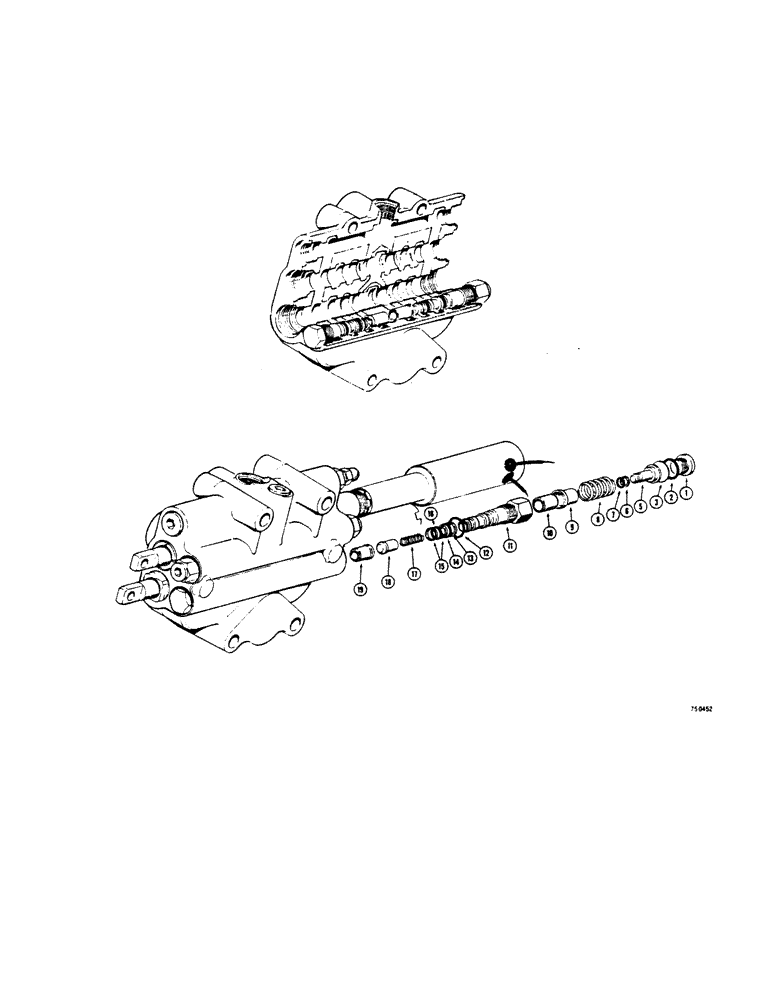

Запчасти Case 450 (331A[1]) - SECONDARY RELIEF VALVE USED ON MODELS WITH LOGGING ATTACHMENT (07) - HYDRAULIC SYSTEM

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Secondary relief, Incl Ref 2 Hex Soc, 3/4"-16 ORB

1шт.

3

R33411

SHIM,.0105" Thk

Spring guide .0105" Thk

1шт.

5

D37073

GUIDE

- spring

1шт.

6

D40357

RING

- backup, spring guide

1шт.

7

D40356

O-RING

SEAL - "O"ring, spring guide

1шт.

8

D40609

SPRING

- plunger

1шт.

9

D37074

PLUNGER

- relief valve

1шт.

10

D37075

SEAT

- plunger

1шт.

11

D37072

CAP

BODY - secondary relief valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, valve body (Large)

1шт.

13

D37071

RING

- backup, center "O"ring

1шт.

14

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O"ring, relief body (Center)

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small "O"ring

2шт.

16

D26872

O-RING

SEAL - "O"ring, relief body (Small)

1шт.

17

D37067

SPRING

- poppet

1шт.

18

D37068

VALVE POPPET

POPPET - check valve

1шт.

19

D37069

SLEEVE

SEAT - poppet

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, plug

1шт.
