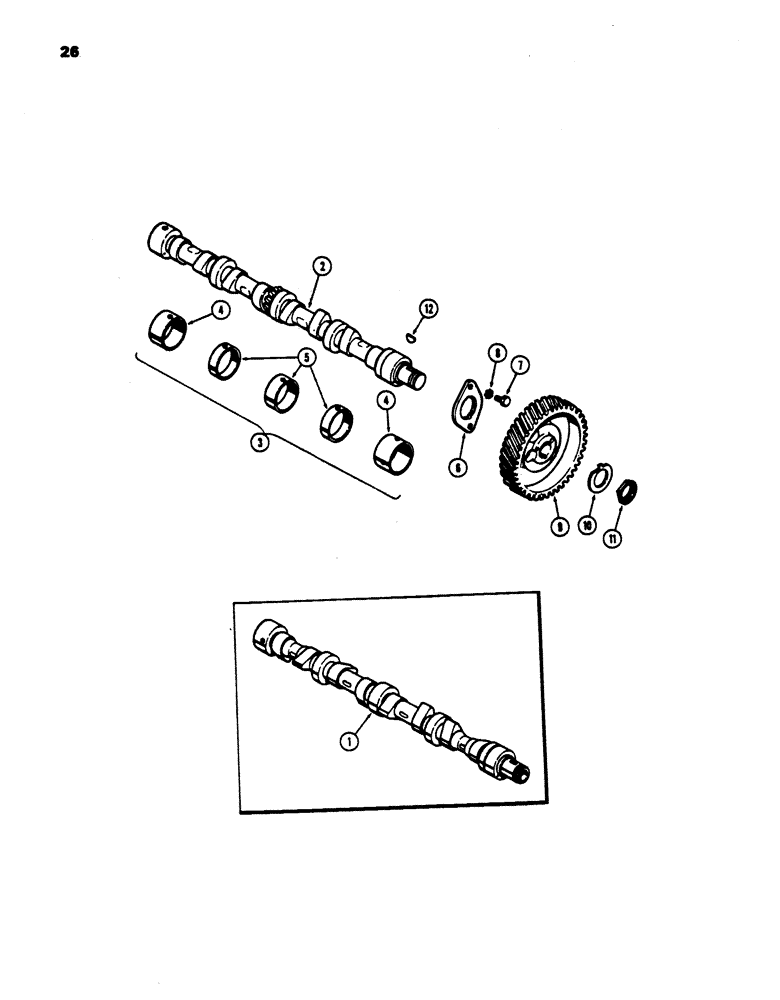

Запчасти Case 450 (026) - CAMSHAFT, (188) DIESEL ENGINE (01) - ENGINE

1

A38932

CAMSHAFT

- (1st used Eng. Ser. No. 2675028) (Order A39013 camshaft)

1шт.

1

A36853

X

CAMSHAFT - (Used prior to Eng. Ser. No 2675028) (Order 1-A39013 camshaft & 1-A38931 gear)

1шт.

2

A39013

CAM

SHAFT - (w/tach. drive gear)

1шт.

3

A42746

CAM

BUSHING SET - camshaft, Includes: Ref.#4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - front and rear (1-7/32" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1/2" wide)

3шт.

6

A29290

PLATE

- thrust, camshaft

1шт.

7

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

9

A38931

GEAR

- camshaft (1st used Eng. Ser. No. 2675028) (with 2 core holes)

1шт.

9

G2066

X

GEAR - camshaft (Used prior to Eng. Ser. No. 2675028) (with 1 core hole) (Order A38931), Serial Range: -2675028

1шт.

10

A29438

LOCK NUT

WASHER - lock, gear nut (tab)

1шт.

11

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.
