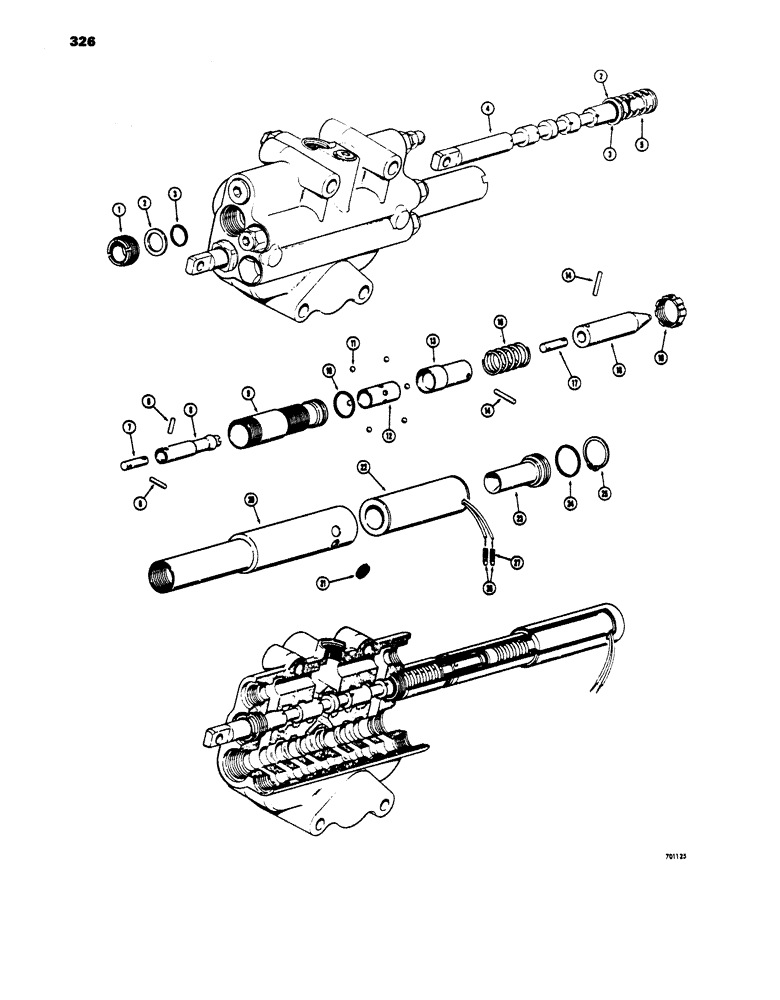

Запчасти Case 450 (326) - 3POSITION SPOOLS-DOUBLE ACTING, WIRES ENTER END OF COIL HOUSING USED ON MDLS W/RETURN-TO-DIG FEATURE (07) - HYDRAULIC SYSTEM

D46020

SPOOL

ASSEMBLY - three position (Color code - black or letter code - W) .73700" to .73709", Includes: Ref.#1 - 24

1шт.

D46021

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X) .73710" to .73719", Includes: Ref.#1 - 24

1шт.

D46022

SPOOL

ASSEMBLY - three position (Color code - yellow or letter code - Y) .73720" to .73729", Includes: Ref.#1 - 24

1шт.

D46023

SPOOL

ASSEMBLY - three position (Color code - green or letter code - Z) .73730" to 73740", Includes: Ref.#1 - 24

1шт.

1

L30744

GLAND

AND WIPER - spool

1шт.

2

A14535

RETAINER

- seal

2шт.

3

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O"ring, spool

1шт.

D46030

SPOOL KIT - D46020 spool assembly only, Includes: Ref.#4 - 8

1шт.

D46031

KIT

SPOOL KIT - D46021 spool assembly only, Includes: Ref.#4 - 8

1шт.

D46032

SPOOL KIT - D46022 spool assembly only, Includes: Ref.#4 - 8

1шт.

D46033

SPOOL KIT - D46023 spool assembly only, Includes: Ref.#4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - three position

1шт.

5

A14534

SPRING

- centering

1шт.

6

138-2012

PIN,1/8" x 1/2", Coiled

Link to spool and detent barrel 1/8" x 1/2", Coiled

2шт.

7

D33858

LINK

- spool to detent barrel

2шт.

8

D46041

CYLINDER

DETENT BARREL - spool

1шт.

9

L30643

HOUSING - detent

1шт.

10

L30644

O-RING,1.114" ID x 1.254" OD x 0.07"

SEAL - "O"ring

1шт.

11

211-5

BALL,3/16" Dia

- detent, . 3/16" Dia

6шт.

12

L30645

RETAINER

- detent balls

1шт.

13

L30760

HOLDER

- detent cam

1шт.

14

138-2035

PIN,1/8" x 11/16", Coiled

Link to cam holder and solenoid plunger 1/8" x 11/16", Coiled

2шт.

16

L30646

SPRING

- detent

1шт.

17

D33858

LINK

- detent cam to solenoid plunger

1шт.

18

L30649

PLUNGER - solenoid

1шт.

19

L30650

NUT - special

1шт.

20

D46040

HOUSING - solenoid

1шт.

21

L30759

GROMMET

- solenoid housing

2шт.

22

L30652

COIL

- solenoid

1шт.

23

L30653

STOP

- solenoid plunger

1шт.

24

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O"ring

1шт.

25

L30654

RING, SNAP

SNAP RING - stop retaining

1шт.

26

L11778

CONNECTOR, ELEC

TERMINAL - electrical, bullet type

2шт.

27

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

SLEEVE - insulating

2шт.
