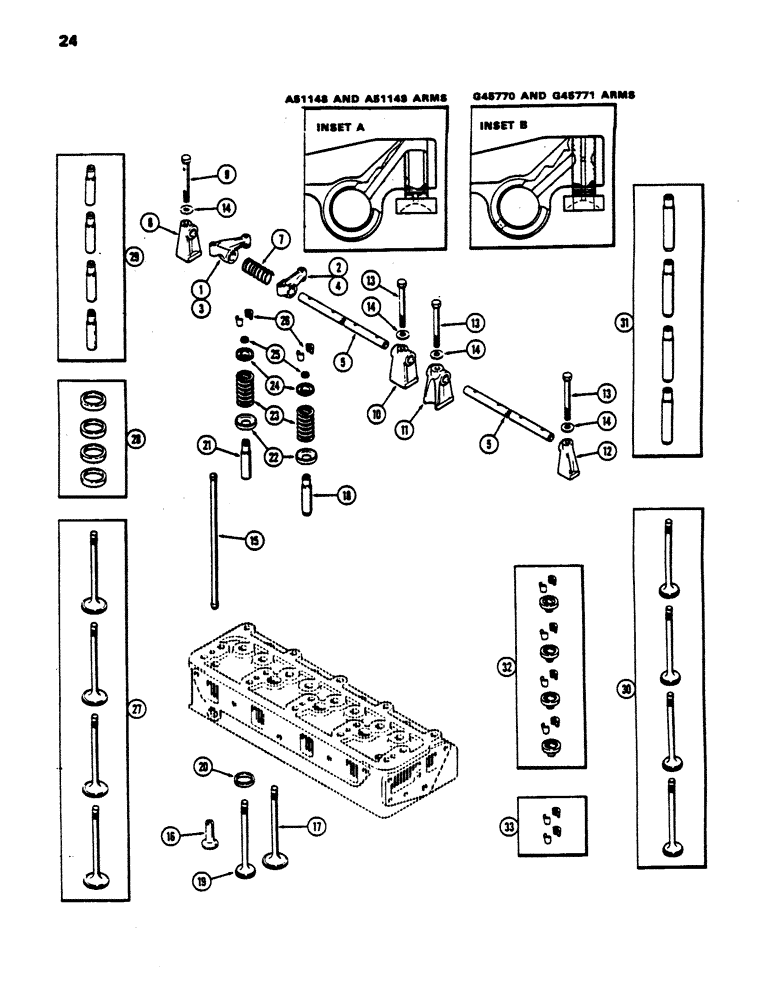

Запчасти Case 450 (024) - VALVE MECHANISM, (188) DIESEL ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A51149
ARM
ASSY. - rocker, left hand, w/adj. screw (1st used Eng. Ser. No. 2715764) (See Inset A)
4шт.
2
A51148
ARM
ASSY. - rocker, right hand, w/adj. screw (1st used Eng. Ser. No. 2715764) (See Inset A)
4шт.
3
G45771
ARM
ASSY. - rocker, left hand, w. adj. screw (See Inset B), Serial Range: -2715764
4шт.
4
G45770
ARM
ASSY. - rocker, right hand, w/adj. screw (See (Inset B), Serial Range: -2715764
4шт.
5
A38181
SHAFT
- rocker arm
2шт.
7
G48501
SPRING
- rocker arm shaft
4шт.
8
A36615
BRACKET
- rear, rocker arm shaft
1шт.
9
G49067
BOLT
- drilled, rear bracket
1шт.
10
G2101
BRACKET
- center
1шт.
11
A51084
BRACKET
- intermediate (Replaces G2102)
2шт.
12
G2100
BRACKET
- front
1шт.
13
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- (3/8 x 2-1/2" N.C. hex.)
4шт.
14
A30058
WASHER
- bracket bolt
5шт.
15
G47079
ROD
- push
8шт.
16
G47077
TAPPET
LIFTER - push rod
8шт.
17
NSS
NOT SOLD SEPARAT
VALVE - intake (Order ref. 30)
4шт.
18
NSS
NOT SOLD SEPARAT
GUIDE - intake valve (Order ref. 31)
4шт.
19
NSS
NOT SOLD SEPARAT
VALVE - exhaust (Order ref. 27)
4шт.
20
NSS
NOT SOLD SEPARAT
INSESRT - exhaust valve seat (Order ref. 28)
4шт.
21
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve (Order ref. 29)
4шт.
22
G49065
SEAT
- valve spring
8шт.
23
A30025
SPRING
- valve
8шт.
24
NSS
NOT SOLD SEPARAT
RETAINER - valve spring (Order ref. 32)
8шт.
25
G46851
SEAL
- rubber, valve stem
8шт.
26
NSS
NOT SOLD SEPARAT
LOCK - retainer (Order ref. 33)
16шт.
27
A41727
VALVE
KIT - exhaust (Set of 4) (Replaces G11948)
1шт.
28
A43048
KIT
INSERT KIT - exhaust valve seat (Set of 4) (Replaces G11986)
1шт.
29
G11946
GUIDE
KIT - exhaust valve stem (Set of 4)
1шт.
30
A41726
VALVE
KIT - intake (Set of 4) (Replaces G11947)
1шт.
31
G11945
GUIDE
KIT - intake valve stem (Set of 4)
1шт.
32
G11927
RETAINER
KIT - valve spring (Set of 4 w/locks)
2шт.
33
G11929
LOCK
KIT - retainer (Set of 4)
4шт.
Выбрано товаров: 32
