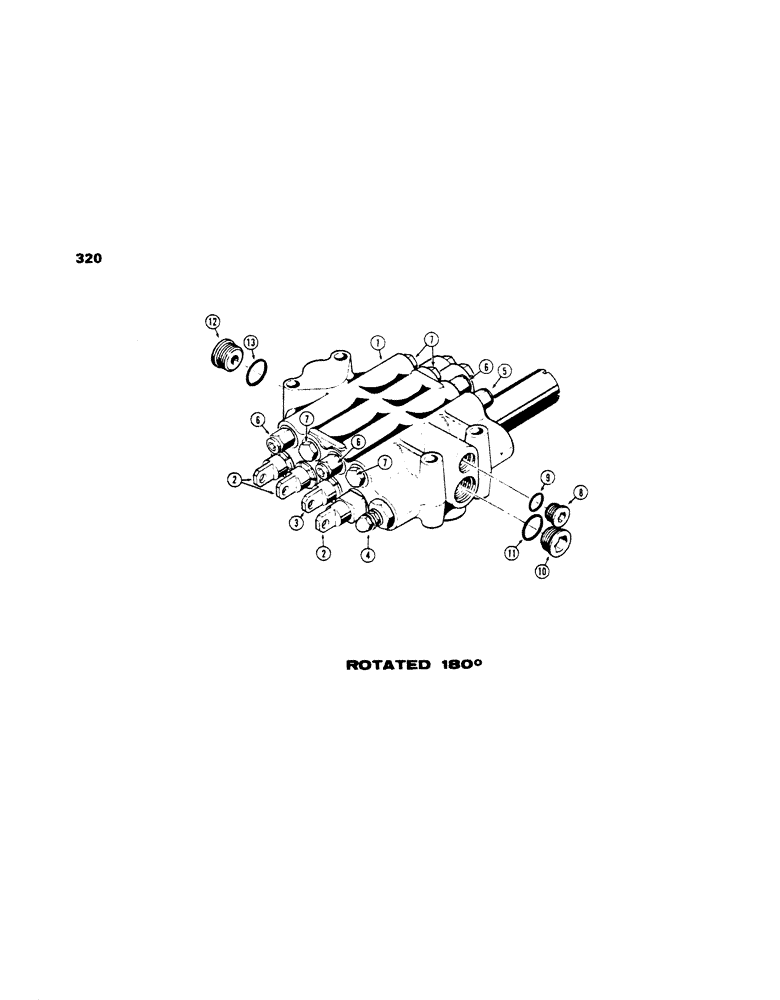

Запчасти Case 450 (320[1]) - D45476 LOADER CONTROL VALVE, 4 SPOOL, USED ON MODELS WITHOUT RETURN TO DIG FEATURE (07) - HYDRAULIC SYSTEM

1

D45476

VALVE, CHECK

VALVE - equipment control, four spool, Includes: Ref.#2 - 13

1шт.

2

D37050

SPOOL

- three position (Parts list Fig.333)

3шт.

2

D37051

SPOOL

- three position (Parts list Fig.333)

3шт.

2

D37052

SPOOL

- three postion (Parts list Fig. 333)

3шт.

2

D37053

SPOOL

- three position (Parts list Fig. 333)

3шт.

3

D46024

SPOOL

- four position (Parts list Fig. 325)

1шт.

3

D46025

SPOOL

- four position (Parts list Fig. 325)

1шт.

3

D46026

PLUG

SPOOL - four position (Parts list Fig. 325)

1шт.

3

D46027

SPOOL

- four position (Parts list Fig. 325)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Fig. 333)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig.329)

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig.331)

3шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Fig. 331)

4шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 9 Hex Soc, 3/4"-16 ORB

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref 11 Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

12

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 13 Hex Soc, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
