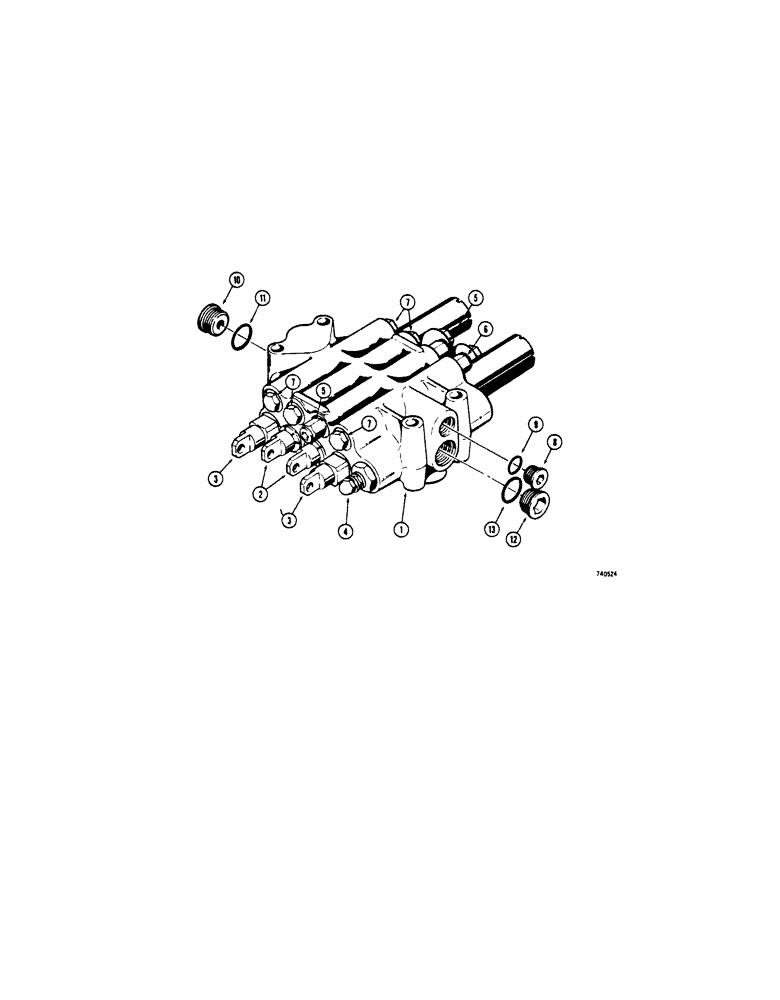

Запчасти Case 450 (316[1]) - D46971 ANGLE DOZER CONTROL VALVE (4 SPOOL) USED WITH DUAL PULL BEHIND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D46971

VALVE

- equipment control (Four spool), Includes: Ref.#2 - 13

1шт.

2

D37050

SPOOL

- three position (Parts list Fig. 332)

2шт.

2

D37051

SPOOL

- three position (Parts list Fig. 332)

2шт.

2

D37052

SPOOL

- three position (Parts list Fig. 332)

2шт.

2

D37053

SPOOL

- three position (Parts list Fig. 332)

2шт.

3

D46024

SPOOL

- four position (Parts list Fig. 324)

2шт.

3

D46025

SPOOL

- four position (Parts list Fig. 324)

2шт.

3

D46026

PLUG

SPOOL - four position (Parts list Fig. 324)

2шт.

3

D46027

SPOOL

- four position (Parts list Fig. 324)

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Fig. 332)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig. 330)

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig. 328)

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Fig. 330)

5шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 9 Hex Soc, 3/4"-16 ORB

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref 11 Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

12

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 13 Hex Soc, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
