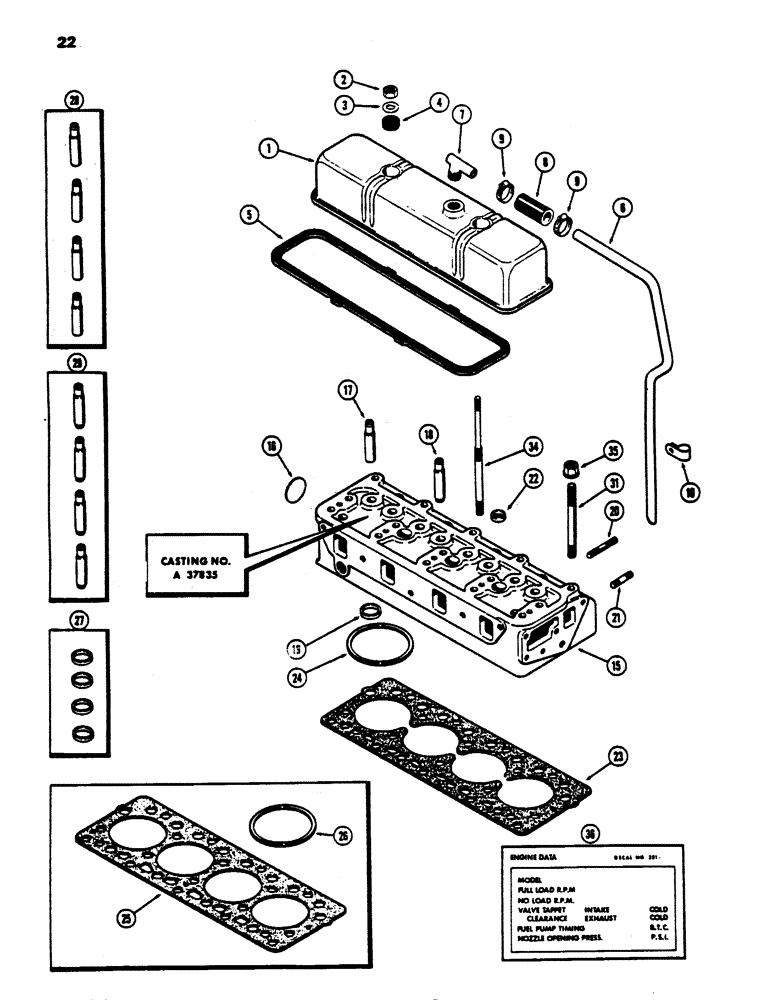

Запчасти Case 450 (022) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE, W/CYLINDER HEAD STUDS, USED PRIOR TO ENG. S.N. 2711005 (01) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

3

G49400

WASHER

- cover nut (3/8 x 1-1/8 x 1/8")

2шт.

4

A142098

GROMMET

- rubber (Replaces G46867)

2шт.

5

A43030

GASKET,3.05mm Thk

- cover to head (Replaces G46866)

1шт.

6

D35014

TUBE

- breather

1шт.

7

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

-, Serial Range: tube-engine

1шт.

15

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting No. A37835), Includes: Ref.#16 - 22

1шт.

16

A39242

PLUG

- rear (1-3/4" expansion)

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 28)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 29)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 27)

4шт.

20

A39129

STUD

- manifold clamp (3/8" N.C. x 2-1/16")

6шт.

21

A29431

STUD

- manifold ends (3/8" N.C. x 1-3/4")

4шт.

22

41-1016

PLUG,Cup, 1"

- top (1" cup type)

3шт.

23

13490891C1

- cyl. head (1st used eng. ser. No. 2656844)

1шт.

24

A38639

RING

- fire, cylinder head gasket (Standard) (4-5/16" I.D. x 4-9/16" O.D. x .070" w/orange code mark) (used w/A38640 cylinder head gasket)

4шт.

24

A38651

RING

- fire, cylinder head gasket (oversize) (4-5/16" I.D. x 4-9/16" O.D. x .075" w/black code mark) (used w/A38640 cylinder head gasket)

4шт.

25

A36877

GASKET

- cyl. head (used prior to eng. ser. no. 2656844)

1шт.

26

A36900

RING, PISTON

RING - fire, cylinder head gasket (Standard) (4-3/16" I.D. x 4-7/16" O.D. x 0.70" w/orange code mark) (used w/A36877 cylinder head gasket)

4шт.

26

A37031

RING

- fire, cylinder head gasket (oversize) (4-3/16" I.D. x 4-7/16" O.D. x .075" w/black code mark) (used w/A36877 cylinder head gasket)

4шт.

27

A43048

KIT

INSERT KIT - exhaust valve seat (Set of 4) (Replaces G11986)

1шт.

28

G11946

GUIDE

KIT - exhaust valve stem (Set of 4)

1шт.

29

G11945

GUIDE

KIT - intake valve stem (Set of 4)

1шт.

31

A36902

STUD

- head to block (1/2" N.C. x 5-5/8")

11шт.

31

A36905

STUD

- head to block (1/2" N.C. x 6-1/8")

2шт.

31

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

34

A36903

STUD

- head and cover (1/2" N.C. & 3/8" N.C. x 9-7/16")

2шт.

35

A37030

FLANGE NUT

- head studs (1/2" N.C. flanged)

19шт.

36

321-1635

DECAL - engine data (on cyl. head cover)

1шт.
