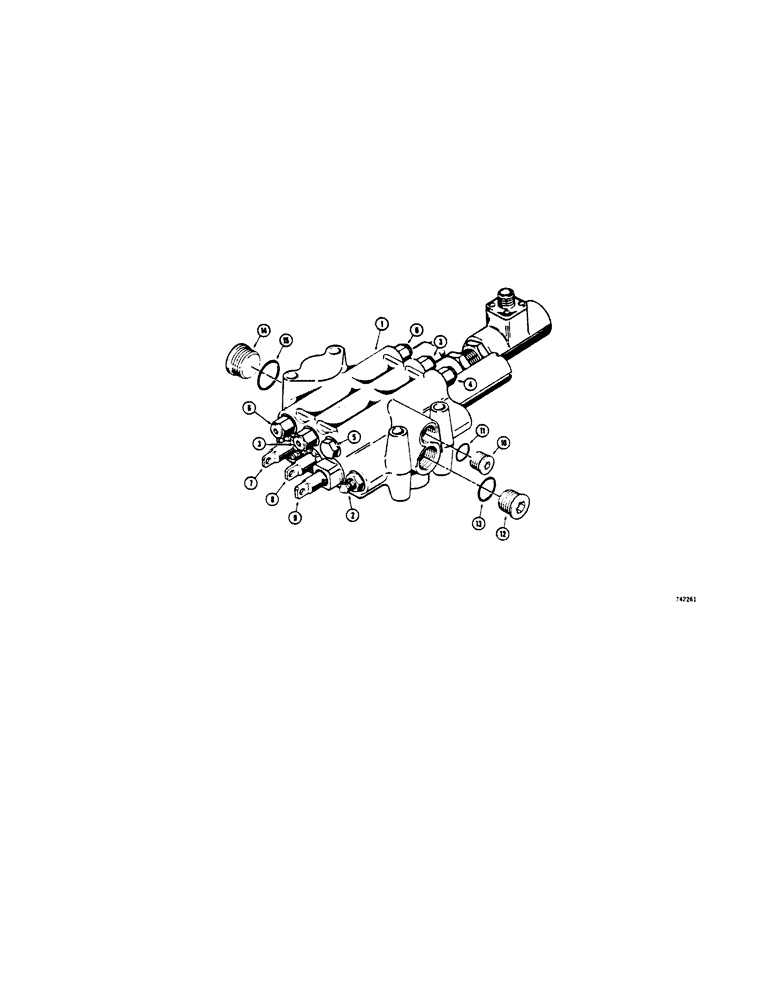

Запчасти Case 450 (311C[1]) - R29817 LOADER CONTROL VALVE (3 SPOOL) USED ON MODELS WITH RETURN-TO-DIG FEATURE AND LOGGING ATTACHMENT (07) - HYDRAULIC SYSTEM

1

R29817

VALVE - loader control, 3 spool, Includes: Ref.#2 - 15

1шт.

2

W16129

VALVE PRESSURE RELIE

VALVE - main relief (Parts list Fig. 332)

1шт.

3

L15141

VALVE

- secondary relief (Parts list Fig. 331A)

2шт.

4

L15141

VALVE

- secondary relief (Parts list Fig. 331A)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Fig. 330)

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig. 331A)

2шт.

7

D37050

SPOOL

- three position (Parts list Fig.332)

1шт.

7

D37051

SPOOL

- three position (Parts list Fig.332)

1шт.

7

D37052

SPOOL

- three position (Partslist Fig. 332)

1шт.

7

D37053

SPOOL

- three position (Parts list Fig.332)

1шт.

8

R29704

SPOOL

- three position (Parts list Fig. 334)

1шт.

8

R29705

SPOOL

- three position (Parts list Fig. 334)

1шт.

8

R29706

SPOOL

- three position (Parts list Fig. 334)

1шт.

8

R29707

SPOOL

- three position (Parts list Fig. 334)

1шт.

9

D46024

SPOOL

- four position (Parts list Fig. 324)

1шт.

9

D46025

SPOOL

- four position (Parts list Fig. 324)

1шт.

9

D46027

SPOOL

- four position (Parts list Fig. 324)

1шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 11 Hex Soc, 3/4"-16 ORB

1шт.

12

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref 13 Hex Soc, 1 1/16"-12 ORB

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

14

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 15 Hex Soc, 1 5/16"-12 ORB

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
