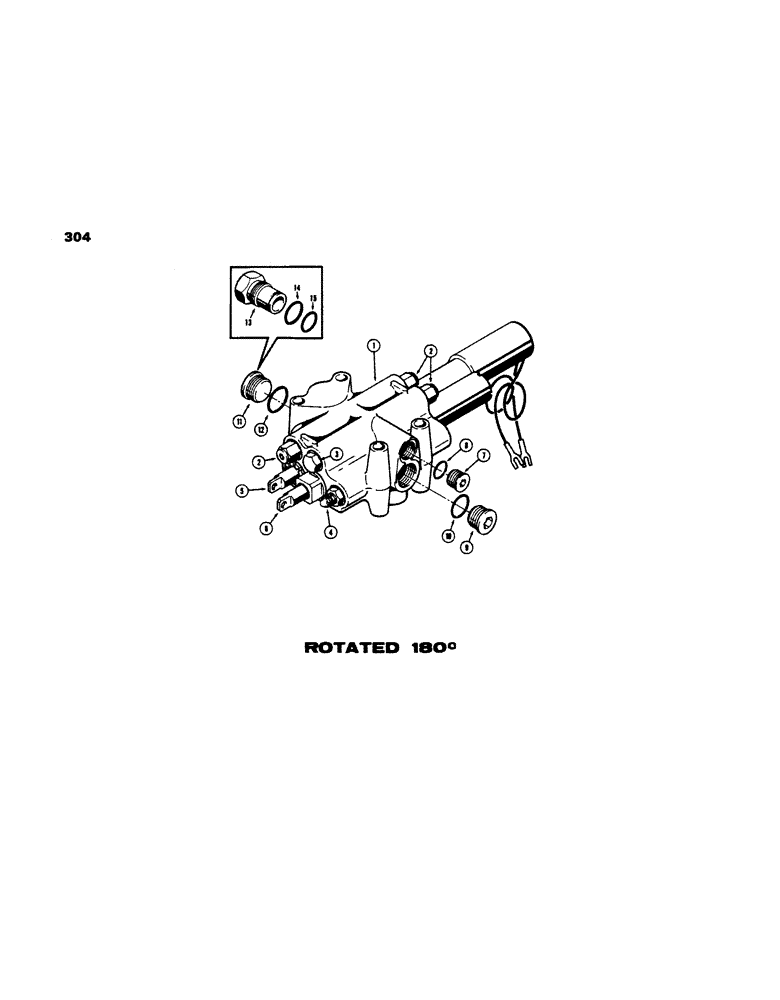

Запчасти Case 450 (304) - D44215 LOADER CONTROL VALVE (2 SPOOL), USED ON MODELS WITH RETURN-TO-DIG FEATURE (07) - HYDRAULIC SYSTEM

1

D44215

NO LONGER SERVICED

VALVE - loader control, 2 spool, Includes: Ref.#2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig. 330)

3шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Fig. 330)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Fig. 332)

1шт.

5

D46020

SPOOL

- three position (Parts list Fig. 326)

1шт.

5

D46021

SPOOL

- three position (Parts list Fig. 326)

1шт.

5

D46022

SPOOL

- three position (Parts list Fig. 326)

1шт.

5

D46023

SPOOL

- three position (Parts list Fig. 326)

1шт.

6

D46024

SPOOL

- four position (Parts list Fig. 324)

1шт.

6

D46025

SPOOL

- four position (Parts list Fig. 324)

1шт.

6

N6592

VALVE

SPOOL - four position (Parts list Fig. 324)

1шт.

6

D46027

SPOOL

- four position (Parts list Fig. 324)

1шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 8 Hex Soc, 3/4"-16 ORB

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref 10 Hex Soc, 1 1/16"-12 ORB

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

11

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 12 Hex Soc, 1 5/16"-12 ORB

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

13

D35401

FITTING

- carry over (Backhoe models), Includes: Ref.#14 & 15

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

15

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O"ring, small

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, plug

1шт.
