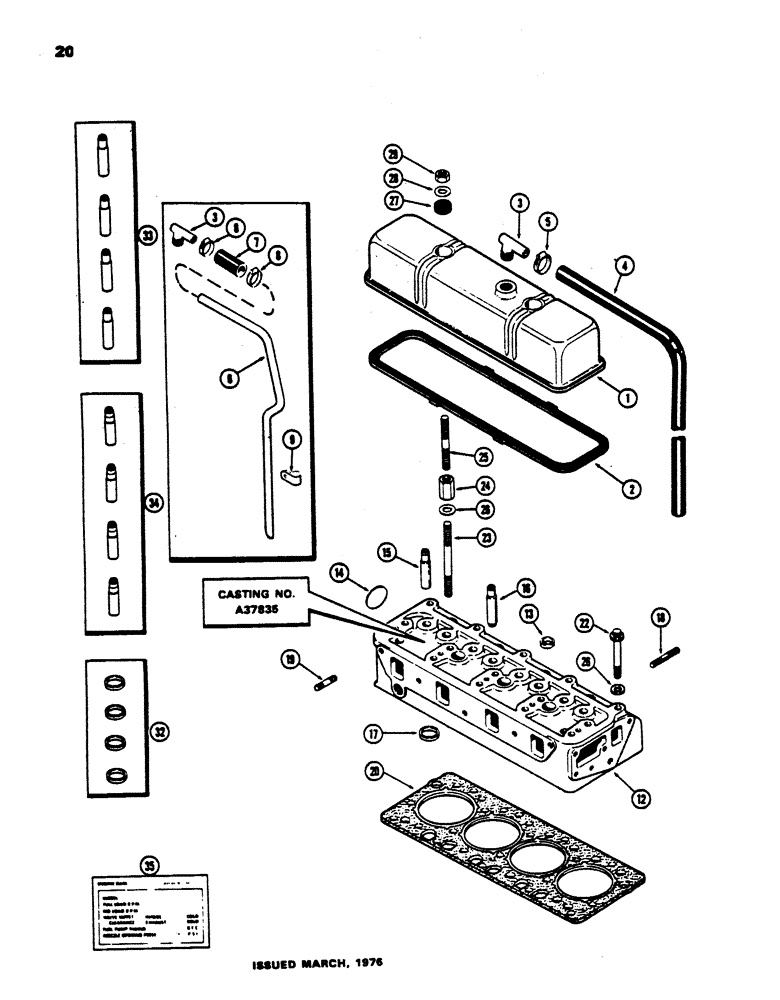

Запчасти Case 450 (020) - CYLINDER HEAD AND COVER, (188) DIESEL ENG., W/CYLINDER HEAD STUDS, USED PRIOR TO ENG. S.N. 2711005 (01) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

-, Serial Range: cover-head

1шт.

3

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

4

A39570

HOSE

HOSE - breather (rubber) (See ref. 6)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - breather hose (9/16" to 1-1/16")

1шт.

6

D35014

TUBE

- breather (metal) (See ref. 4)

1шт.

7

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

9

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- breather tube

1шт.

12

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting No. A37835), Includes: Ref.#13 - 19

1шт.

13

41-1016

PLUG,Cup, 1"

- top (1" cup type)

3шт.

14

A39242

PLUG

- rear (1-3/4" expansion)

1шт.

15

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 33) (3-1/8" long)

4шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 34) (3-1/4" long)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 32)

4шт.

18

A39129

STUD

- manifold clamps (3/8" N.C. x 2-1/16")

6шт.

19

A29431

STUD

- manifold ends (3/8" N.C. x 1-3/4")

4шт.

20

A39279

GASKET

- cylinder, Serial Range: head-block

1шт.

22

A39047

12 PT SCREW

BOLT - cyl. head (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

22

A39048

12 PT SCREW

BOLT - cyl. head (1/2 x 5-1/8" N.C., 12 pt. hd.)

11шт.

22

A39049

12 PT SCREW

BOLT - cyl. head (1/2 x 5-5/8" N.C., 12 pt. hd.)

2шт.

23

A36902

STUD

- cyl. head (1/2" N.C. x 5-5/8")

2шт.

24

A51114

NUT

- head studs (1/2" N.C. & 3/8" N.C.)

2шт.

25

A51271

STUD

- cyl. head cover (3/8" N.C. x 3-3/4")

2шт.

26

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- cyl. head bolts (1/2 x 7/8 x 1/8")

19шт.

27

A142098

GROMMET

- cover (rubber) (Replaces G46867)

2шт.

28

G49400

WASHER

- cover nut (3/8 x 1-1/8 x 1/8")

2шт.

29

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

32

A43048

KIT

INSERT KIT - exhaust valve seat (Set of 4) (Repl. G11986)

1шт.

33

G11946

GUIDE

KIT - exhaust valve stem (Set of 4)

1шт.

34

G11945

GUIDE

KIT - intake valve stem (Set of 4)

1шт.

35

321-2256

DECAL - engine data (used w/A51234 nozzle) (1st used eng. ser. no. 2734508) (Fig. 53)

1шт.

35

321-1635

DECAL - engine data (used w/A37836 nozzle) (Used prior to eng. ser. no. 2734508) (Fig. 53), Serial Range: -2734508

1шт.
