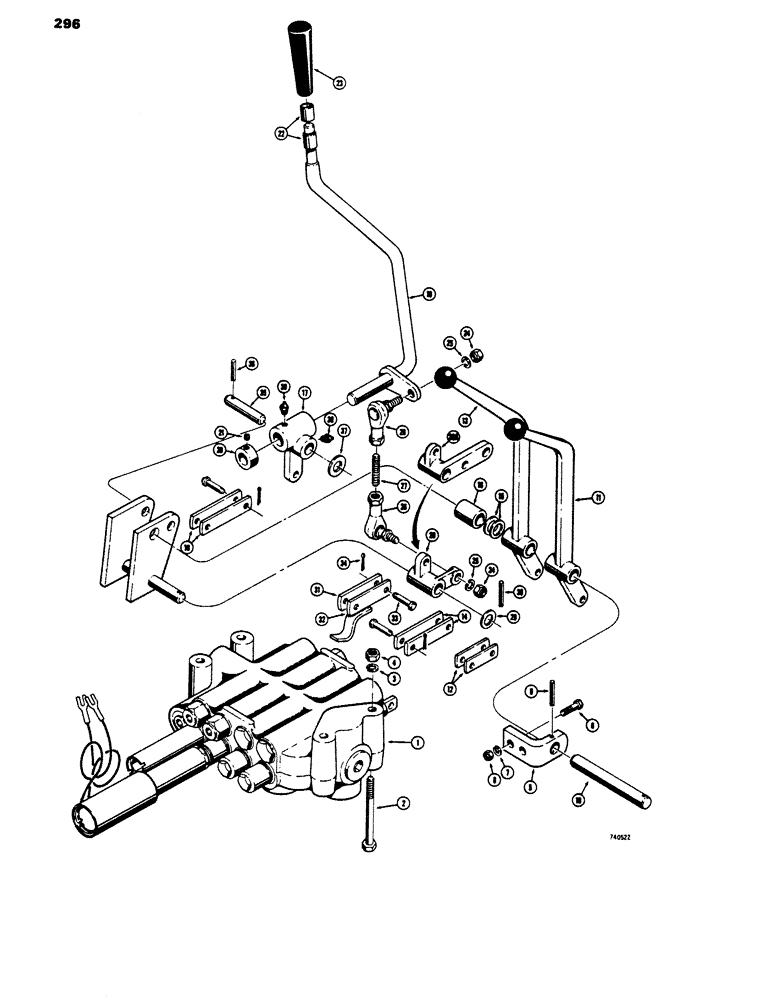

Запчасти Case 450 (296) - FOUR SPOOL VALVES AND LEVERS, ALL VALVES HAVE PART NUMBER ON VALVE IDENTIFICATION PLATE (07) - HYDRAULIC SYSTEM

1

D36185

VALVE - four spool (Use on Power Angle - Tilt Dozer Models with ripper or pull behind hydraulics) Parts list Fig. 318 (Use D45046 valve for service)

1шт.

D45046

HYDRAULIC VALVE

VALVE - four spool (Use on Power Angle-Tilt Dozer Models with ripper or pull behind hydraulics) Parts list Fig. 320

1шт.

R30045

VALVE

- four spool (Used on Power Angle-Tilt Dozers Models with ripper or pull behind hydraulics) Parts list Fig. 321A

1шт.

D46971

VALVE

- four spool (Used on Power Angle Dozers with Dual Pull Behind Hydraulics) parts list Fig. 316

1шт.

NLS

NO LONGER SERVICED

- four spool (Use on Power Angle Dozers with Dual Pull Behind Hydraulics) Parts list Fig. 321A

1шт.

D35085

VALVE - four spool (Use on Loader Ripper Models, Loader Pull Behind Models with Clam Type Bucket or Logging Attachment without return-to-dig feature) Parts list Fig.312(1) (Used D45476 valve for service)

1шт.

D45476

VALVE, CHECK

VALVE - four spool (Use on Loader Ripper Models, Loader Pull Behind Models With Clam type Bucket or Logging Attachment without return-to-dig feature) Parts list Fig. 320

1шт.

D44217

NO LONGER SERVICED

VALVE - four spool (Used on Return-to-Dig Loader Ripper Models and Loader Pull Behind Models with Clam Type Bucket or Logging attachment before tractor sn. 3048572. Parts list Fig. 318 (Use R24136 valve and R24133 harness)

1шт.

R24136

VALVE

- four spool (Used on Return-to-Dig Loader Ripper Models and Loader Pull Behind Models with Clam Type Bucket or Logging Attachment tractor sn. 3048572 and after) Parts list Fig. 314

1шт.

R29818

VALVE - four spool (Use on Return-to-Dig Loader Models with logging attachment and dual pull behind hydraulics) Parts list Fig. 321C

1шт.

2

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

3

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

4шт.

5

D35396

BRACKET

- valve lever mounting

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 13-616) 3/8"-16, G5

2шт.

7

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

D43490

PIN

SHAFT - pivot

1шт.

11

D36086

LEVER

- valve control, R.H.

1шт.

12

D35397

LINK

- long (4 used on all valves except D36185, D36085 and D46971 which use 2 links)

2-4шт.

12

D34624

LINK

- short (Used on D36185, D36085 and D46971 valve)

2шт.

13

D35395

LEVER

- valve control, center

1шт.

14

D35397

LINK

- long, use with all valves

2шт.

15

A26411

WASHER

- special

1шт.

16

D37548

SLEEVE

SPACER - lever

1шт.

17

D43451

LEVER

- pivot

1шт.

18

D43453

LINK

- long, use with all valves

2шт.

19

D43450

LEVER

- valve control, L.H.

1шт.

20

D43620

COLLAR

- control lever

1шт.

21

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

22

D38662

RING

BUSHING - spacer

2шт.

23

D37550

KNOB

- control lever

1шт.

24

129-123

NUT,3/8"-24, G5

(Replaces 25-116) 3/8"-24, G5

2шт.

25

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

26

D40908

BALL JOINT

2шт.

27

D37549

STUD

BOLT - stud (3/8" - 24 NF)

1шт.

28

D37574

CRANK

LEVER - bell crank

1шт.

28a

R30508

LEVER

- bell crank

1шт.

29

A26411

WASHER

- special

1шт.

30

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

31

D43454

LINK

- long, all valves (D44217 valve uses 1)

1-2шт.

32

D44268

LINK

- switch bar, use with D44217 valve

1шт.

33

D45388

PIN

- link retaining

8шт.

34

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

8шт.

35

D43452

PIN,12.72mm OD x 61.91mm L

- retaining, pivot lever

1шт.

36

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

37

195-2065

WASHER,33/64" x 7/8" x .049"

- spacer

1шт.

38

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) If used

2шт.
