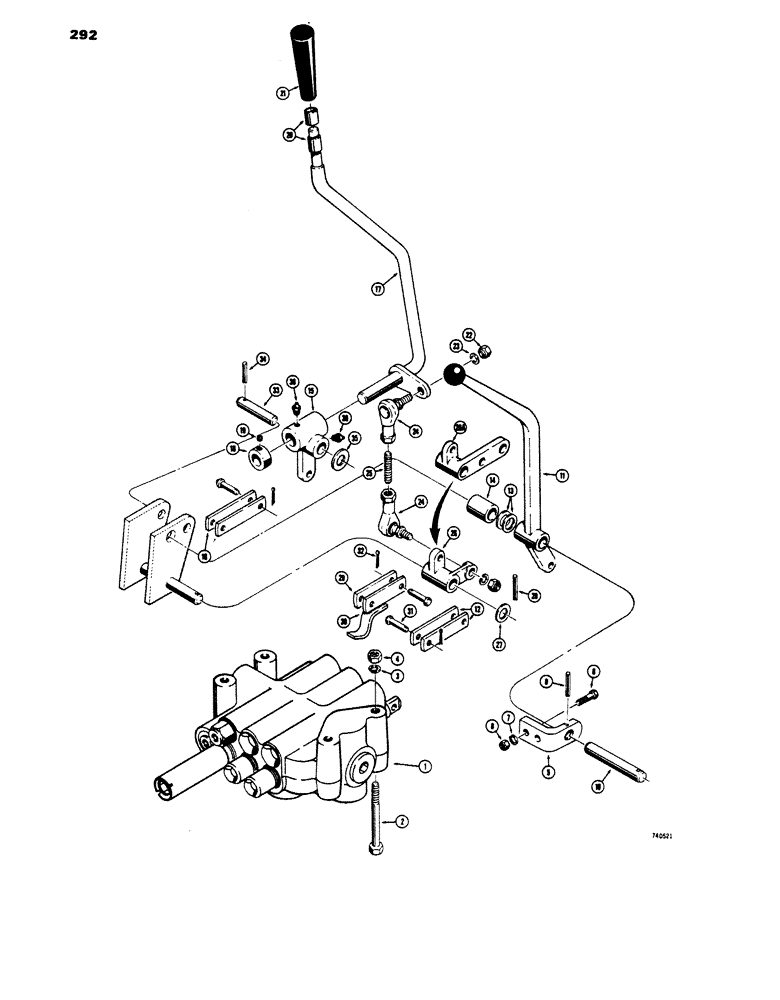

Запчасти Case 450 (292) - THREE SPOOL VALVES AND LEVERS, ALL VALVES HAVE PART NUMBER ON VALVE IDENTIFICATION PLATE (07) - HYDRAULIC SYSTEM

1

D35215

VALVE - three spool (Use on Power Angling Dozer Models with ripper or pull behind hydraulics) Parts list Fig. 308 (Use D45042 valve for service)

1шт.

D45042

VALVE - three spool (Use on Power Angling Dozer Models with ripper or pull behind hydraulics) Parts list Fig. 310

1шт.

R30044

VALVE

- three spool (Use on Power Angling Dozer Models with ripper pull behind hydraulics) Parts list Fig. 311A

1шт.

D36184

VALVE

- three spool (Use on Power Angle-Tilt Dozer Models and Power Angling Dozer Models with ripper or pull behind hydraulics) parts list Figure 312 (Use D45043 valve for service)

1шт.

D45043

VALVE

- three spool (Use on Power Angle-Tilt Dozers and Power Angling Dozers with ripper or pull behind hydraulicd before tractor serial no. 3040902) Parts list Figure 314

1шт.

D47978

VALVE

- three spool (Used on Pwer Angle-Tilt Dozers and Power Angling Dozers with ripper or pull behind hydraulics on tractor serial no. 3040902 and after) Parts list Figure 316

1шт.

R30046

VALVE

- three spool (Use on Power Angle-Tilt Dozers and Power Angling Dozers with Ripper or pull behind hydraulics on tractor Sn. 3040902 and after) Parts list Figure 311A

1шт.

D35213

VALVE - three spool (Use on Loader Models with ripper, pull behind hydraulics, clam type bucket or logging attachment without return-to-dig feature) parts list Figure 308 (Use D45041 valve for service)

1шт.

D45041

LOCK VALVE

VALVE - three spool (Use on Loader models with ripper, pull behind hydraulics, clam type bucket or logging attachment without return-to-dig feature) Parts list Figure 310

1шт.

D44216

VALVE

- three spool (Used on Return-to-Dig Loader Models with ripper pull behind hydraulics, clam type bucket or logging attachment before tractor sn. 3048572) Parts list Figure 304 (Use R24135 valve and R24133 harness for service)

1шт.

R24135

VALVE

- three spool (Used on Return-to-Dig Loader Models with ripper, pull behind hydraulics, clam type bucket or logging attachment tractor sn. 3048572 and after) Parts list Figure 306

1шт.

R29817

VALVE - three spool (Used on Return-to-Dig Loader Models)(Parts list Fig. 311C)

1шт.

R29819

VALVE - three spool (Used on Loader Models with logging Return- to-Dig feature) Parts list Fig. 311C

1шт.

2

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 1-1/4"

4шт.

3

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

4шт.

5

D35396

BRACKET

- valve lever mounting (When stock is exhausted, use D47126 bracket for service)

1шт.

5

D47216

BRACKET

- valve lever mounting

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces 13-616) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

2шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

D43459

PIN

SHAFT - pivot

1шт.

11

D35395

LEVER

- valve control, R.H.

1шт.

12

D34624

LINK

- short (Use on D35213, D35215 and D36184 valve)

2шт.

12

D35397

LINK

- long (Used on all valves except D35213, D35215 and D36184)

2шт.

13

A26411

WASHER

- special

1шт.

14

D37548

SLEEVE

SPACER - lever

1шт.

15

D43451

LEVER

- pivot

1шт.

16

D43453

LINK

- long, used with all valve

2шт.

17

D43450

LEVER

- valve control, L.H.

1шт.

18

D43620

COLLAR

- control lever

1шт.

19

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

2шт.

20

D38662

RING

BUSHING - spacer

2шт.

21

D37550

KNOB

- control lever

1шт.

22

129-123

NUT,3/8"-24, G5

(Replaces 25-116) 3/8"-24, G5

2шт.

23

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

24

D40908

BALL JOINT

2шт.

25

D37549

STUD

BOLT - stud (3/8" - 24 NF)

1шт.

26

D37574

CRANK

LEVER - bell crank

1шт.

26a

R30508

LEVER

- bell crank

1шт.

27

A26411

WASHER

- special

1шт.

28

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

29

D43454

LINK

- long, all valves (D44216 valve uses 1)

1-2шт.

30

D44268

LINK

- long use with D44216 valve

1шт.

31

D45388

PIN

- link, retaining

6шт.

32

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

33

D43452

PIN,12.72mm OD x 61.91mm L

- retaining, pivot lever

1шт.

34

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

35

195-2065

WASHER,33/64" x 7/8" x .049"

- spacer

1шт.

36

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) If used

2шт.
