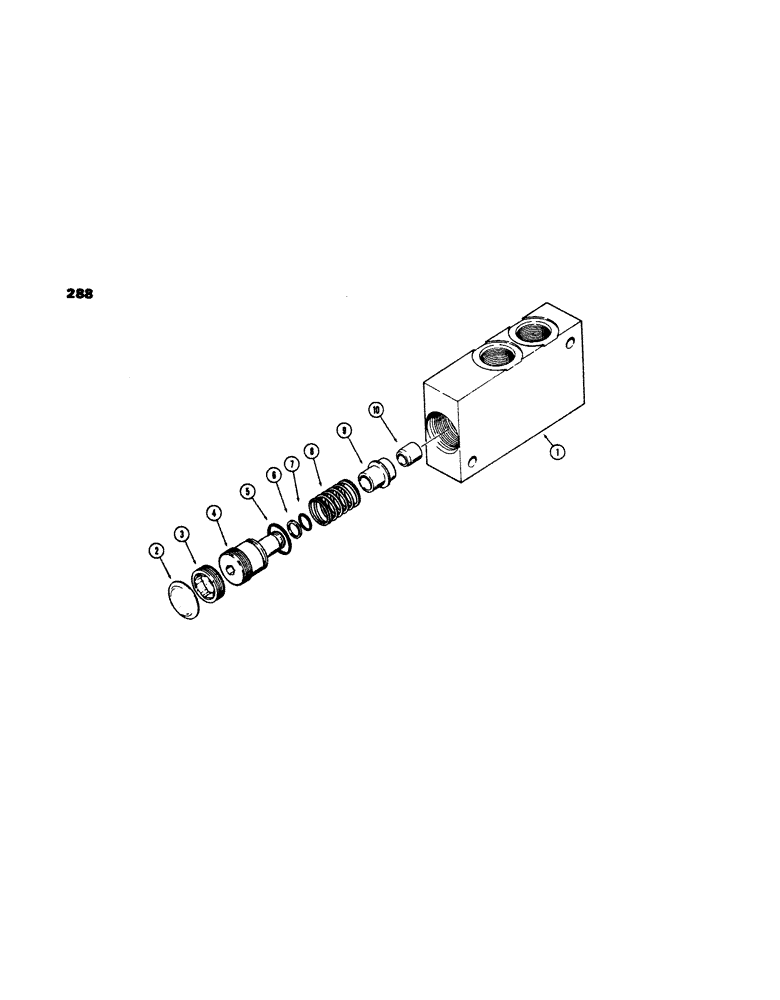

Запчасти Case 450 (288) - D46850 RELIEF VALVE (07) - HYDRAULIC SYSTEM

D46850

VALVE

- relief, anti-rollback (Parker No. VPRD 5x-1-A-3101), Includes: Ref.#1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

41-20

PLUG,Exp, 1 1/4"

- welch, 1-1/4"

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - lock, special

1шт.

4

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

5

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O"ring, large

1шт.

6

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- backup

1шт.

7

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

SEAL - "O"ring, small

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

9

NSS

NOT SOLD SEPARAT

POPPET

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.
