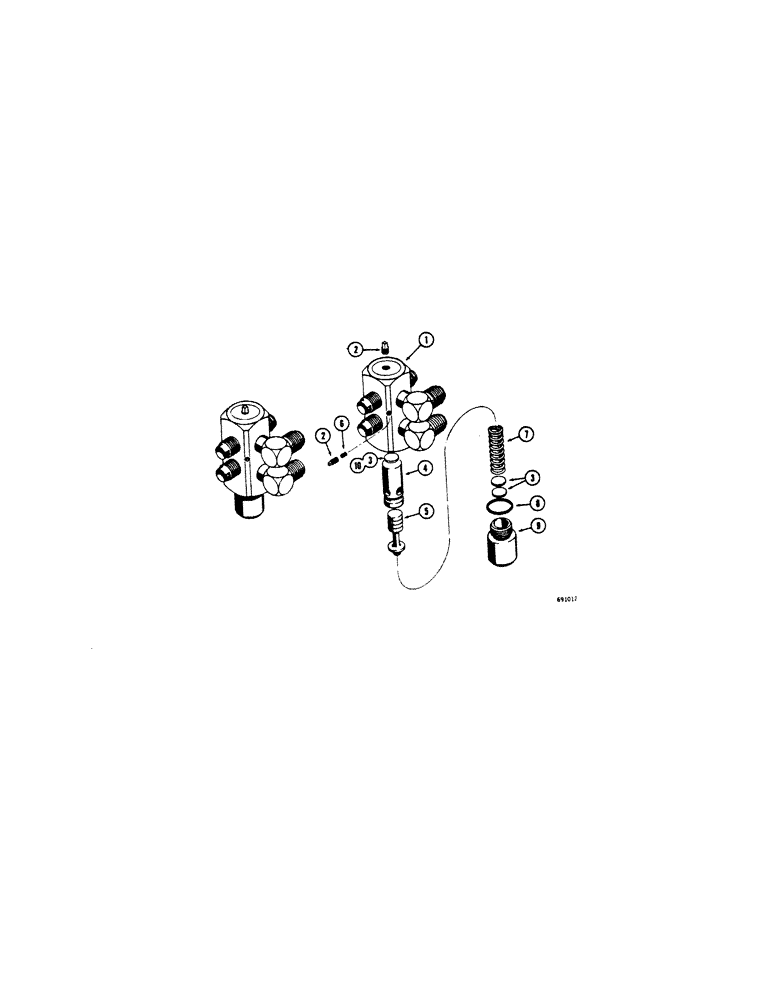

Запчасти Case 450 (288[2]) - D39297 RELIEF VALVE (07) - HYDRAULIC SYSTEM

D39297

RELIEF VALVE ASSEMBLY - Drott clam, Includes: Ref.#1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE BODY

1шт.

2

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" NPT)

2шт.

3

A17707

PLUG

SHIM

1шт.

4

A17703

SEAT

- valve

1шт.

5

A17704

PLUNGER

1шт.

6

83-65

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

SCREW - set (5/16" - 18 NC x 3/8")

1шт.

7

A17705

SPRING

- plunger

1шт.

8

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O"ring

1шт.

9

A17708

CAP - valve

1шт.

10

D38831

PLUG

SHIM

1шт.
