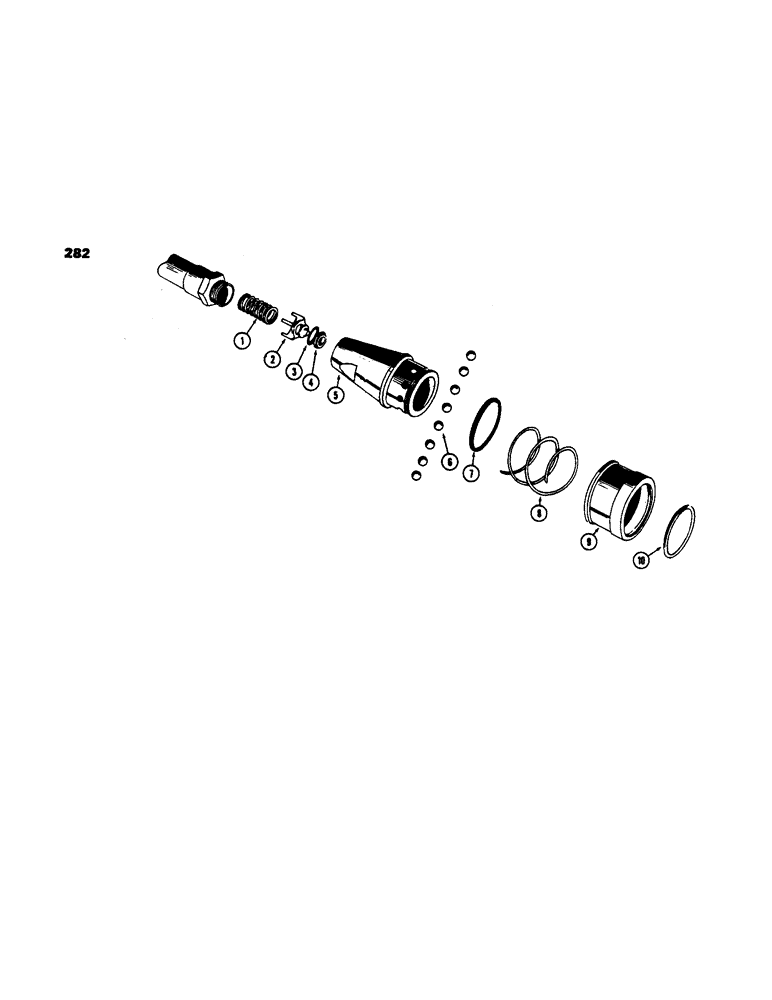

Запчасти Case 450 (282) - A28542 COUPLING - FEMALE (07) - HYDRAULIC SYSTEM

A28542

COUPLING, QUICK, FEM

COUPLING - pull - behind, female (Service kit parts listed below), Includes: Ref.#1 - 10

2шт.

1

A11324

SPRING

- coupling piston

1шт.

2

A26215

PISTON

- socket

1шт.

3

A27350

X

SEAL - piston (For service, use A33964 seal)

1шт.

A33964

SEAL

- piston

1шт.

A33964

SEAL

- piston

1шт.

4

A11325

X

RETAINER - seal (Used with A27350 seal only)

1шт.

5

A27349

BODY

- female coupling

1шт.

6

211-7

BALL,1/4" Dia

- steel, socket locking 1/4" Dia

8шт.

7

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O"ring, socket body

1шт.

8

A27354

SPRING

- ball retaining sleeve

1шт.

9

A27353

SLEEVE

SLEEVE - ball retaining

1шт.

10

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - retaining, socket

1шт.
