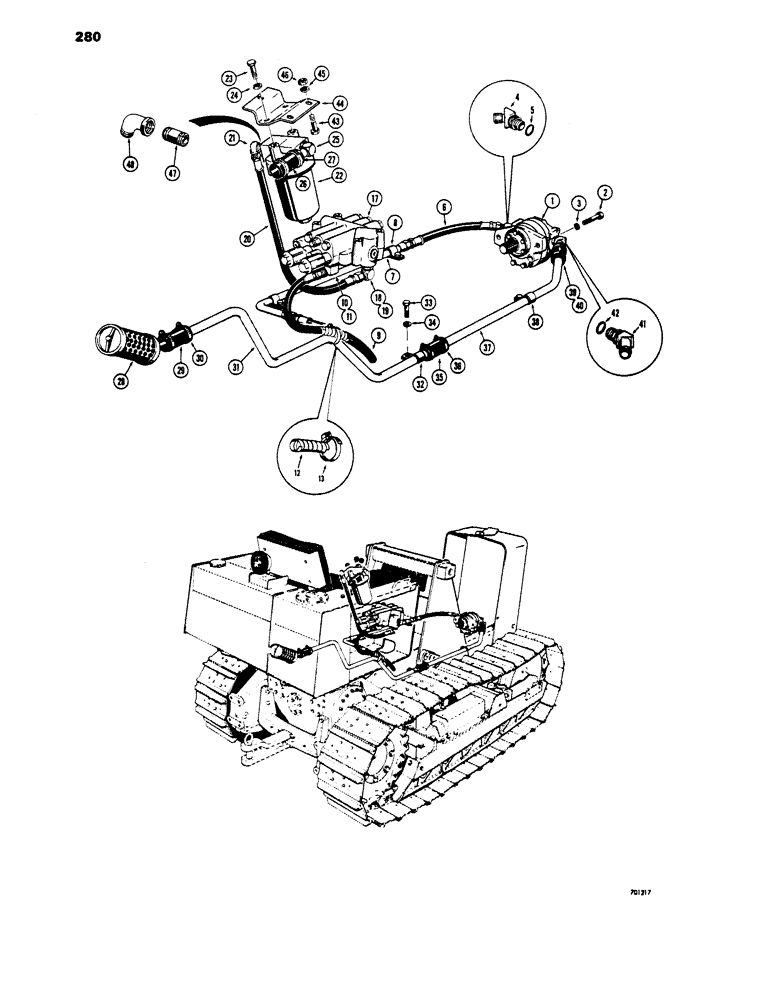

Запчасти Case 450 (280) - LOADER AND DOZER PRIMARY HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

PUMP - hydraulic (Parts list Fig. 284)

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

87644746R

REMAN-HYD PUMP

450, (S/N 3038436 TO 3060306), Reman For New P/N D41390 & 87644746

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

LOCK WASHER, , med. sect. 1/2"

2шт.

4

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ELBOW - male, 45 degree, Includes: Ref.#5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

6

D35040

HOSE

HOSE - pump to valve (15" long)

1шт.

7

D35038

TUBE

TUBE -, Serial Range: pump-valve

1шт.

8

R14668

CLAMP

CLAMP - tube

2шт.

9

D37601

HOSE

HOSE - pump to valve (43" long)

1шт.

10

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW - male, 45 degree, Includes: Ref.#11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

12

R12586

TAPE

WRAP - hose

1шт.

13

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

1шт.

17

REF

INSTRUCTION

VALVE - hydraulic, control (See Figs.290, 292 and 296 for proper valve)

1шт.

18

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , Male, Includes Ref.#19 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

20

D35045

LARGE HOSE

HOSE,LARGE HOSE - valve to return line filter (22" long)

1шт.

21

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

ELBOW - 90 degree

1шт.

22

D43567

FILTER ASSY

FILTER - return line (Parts list Fig. 286)

1шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

LOCK WASHER, , med. sect. 1/2"

2шт.

25

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose

1шт.

26

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

HOSE - return line filter to reservoir (3-1/2" long)

1шт.

27

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

28

D33557

FILTER, ELEMENT

ELEMENT, FILTER FILTER - suction line

1шт.

29

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

connecting, suction line to pump

1шт.

30

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

31

D35044

TUBE

TUBE - suction line

1шт.

32

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

CLAMP - tube

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

34

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

35

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

HOSE, - suction line to pump 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

36

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

37

D35020

TUBE

TUBE - suction line

1шт.

38

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

CLAMP - tube

1шт.

39

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

HOSE, - suction line to pump 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

40

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

41

D35019

ELBOW

ELBOW - male, 45 degree, Includes: Ref.#42

1шт.

42

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

43

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, , Used on models w/ return-to-dig feature Hex, 3/8"-16 x 7/8", G5, Full Thd

3шт.

44

D44233

SPARE PART BRACKET - filter mounting, used on models w/ return to dig feature

1шт.

45

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock , used on models w/ return to dig feature 3/8"

3шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106), Used on models w/ return to dig feature 3/8"-16, G5

3шт.

47

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - male, used on models w/ return to dig feature

1шт.

48

221-379

ELBOW,90 Degree, 1" NPT

ELBOW - 90 degree, used on models w/ return to dig feature

1шт.
