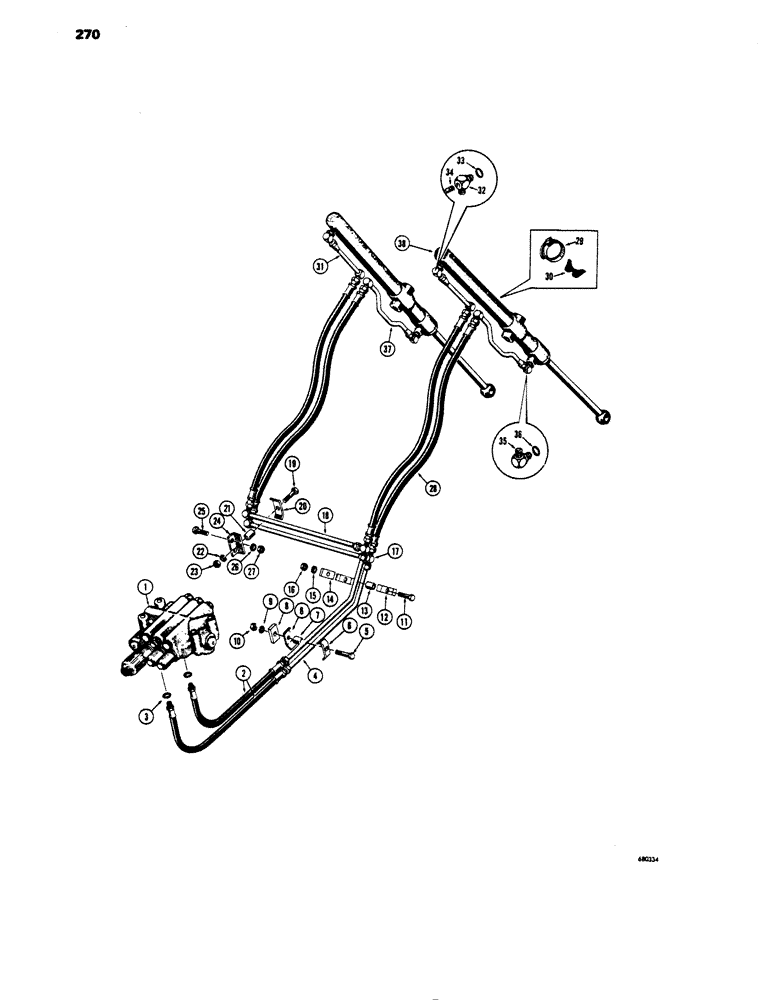

Запчасти Case 450 (270) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (See Figs. 290, 292 and 296 for proper valve)

1шт.

2

D34759

HOSE

- valve to crossover tubes (25" long), Includes: Ref.#3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D34753

TUBE

- valve to crossover tubes

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

1шт.

6

D31782

FIXING BRACKET

CLAMP - tube

2шт.

7

D35228

SPACER

- clamp

1шт.

8

D35229

BLOCK - clamp (Used on crawlers without step plate)

1шт.

9

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

1шт.

11

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(Before tractor S/N 3049198 except ROPS models) Hex, 5/16"-18 x 2 1/2", G5, Serial Range: -3049198

1шт.

11

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

HHCS - 5/16" - 18 NC x 1-3/8" (Tractor Sn. 3049198 and after/or previous ROPS models), Start Serial: 3049198

1шт.

12

R17319

CLAMP

- tube

2шт.

13

D33552

BUSHING

SPACER - clamp

1шт.

14

D35211

BLOCK - clamp (Before tractor Sn. 3049198 except ROPS models), Serial Range: -3049198

1шт.

15

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) If used

1шт.

17

218-595

TEE,7/8"-14, 37 Degree

- tube, crossover

2шт.

18

D34749

TUBE

- crossover

2шт.

19

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

20

R16916

CLAMP - tube

2шт.

21

D33552

BUSHING

SPACER - tube

1шт.

22

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

24

D35164

BRACKET - tube mounting

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

2шт.

28

19178

HOSE

- lift cylinders (33-1/2" long)

4шт.

29

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube to cylinder

4шт.

30

D38648

BLOCK

SADDLE - tube, rubber

4шт.

31

D34747

TUBE

- lift cylinder, closed end

2шт.

32

R19576

FITTING

ELBOW - special, 90 degree, Includes: Ref.#33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

34

221-11

PLUG,Sq Hd, 1/8"-27

- square head (1/8" NPT)

1шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref.#36

3шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

37

D34745

TUBE

- lift cylinder, rod end (Used on Power Angling Dozer Models)

2шт.

D36138

HOSE ASSY.

TUBE - lift cylinder, rod end (Used on Power Angle-Tilt Dozer Models)

2шт.

38

REF

INSTRUCTION

CYLINDER - lift (See Fig. 338 for proper cylinders)

2шт.
