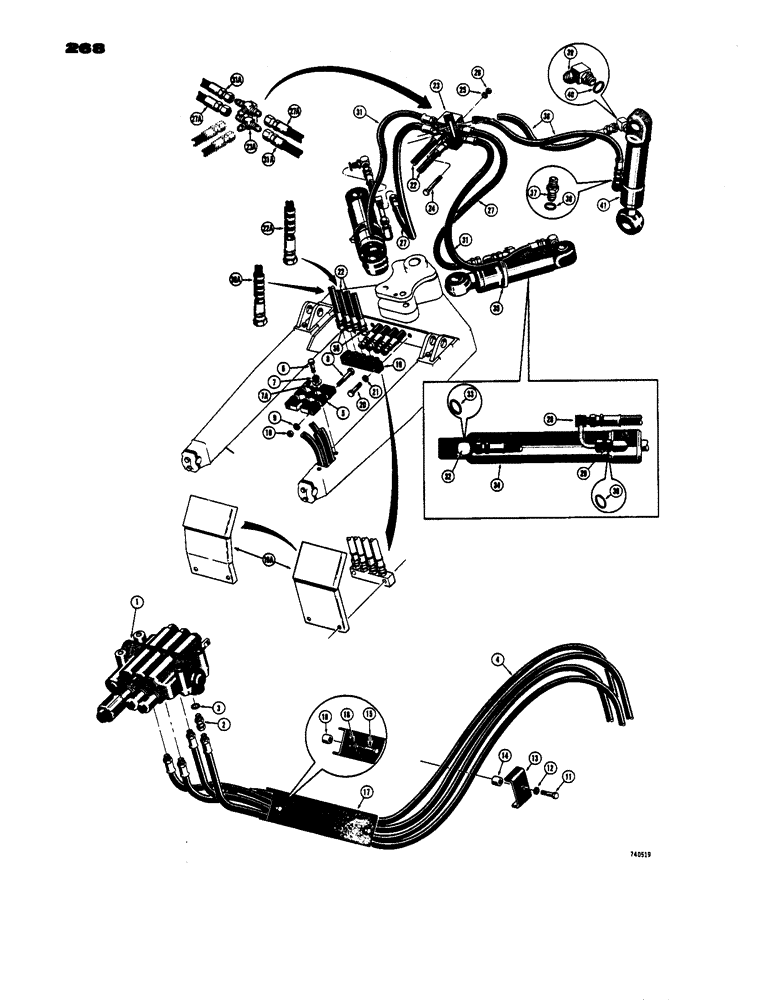

Запчасти Case 450 (268) - POWER ANGLE-TILT DOZER HYDRAULICS, (ANGLE AND TILT CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (See Fig. 290, 292 and 296 for proper valve)

1шт.

2

D37118

ADAPTER

CONNECTOR - special, straight, Includes: Ref.#3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D36128

HOSE,9.53mm ID x 141mm L, SAE 100R2

- valve to manifold (141" long)

4шт.

5

D36131

SET

BLOCK - clamp, hose

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

7a

195-25

WASHER,3/8"

- flat () 3/8"

2шт.

8

13-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

HHCS - 1/4" - 20 NC x 4-1/2"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1-2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

1-2шт.

13

D36134

CLAMP

- hose

1-2шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - tapped

1-2шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

17

D36132

GUARD - hose

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK - tapped

2шт.

19

D36130

BLOCK

- manifold, rear

1шт.

19a

D51267

GUARD

- hoses at manifold (Non-forestry grille models)

1шт.

19a

R24127

GUARD

- hoses at manifold (Forestry grille models)

1шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

22

D36126

HOSE

- manifold to D36202 manifold, 22" long

2шт.

22a

R30879

HOSE

- manifold to R30914 manifold, 22" long

2шт.

23

D36202

BLOCK

MANIFOLD - dozer blade (Has female ports)

1шт.

23a

R30914

MANIFOLD

- dozer blade (Has male ports)

1шт.

24

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3" (D36202 manifold)

1шт.

24

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (R30914 manifold)

1шт.

25

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

1шт.

27

R26164

HOSE ASSY.

HOSE - at angle cylinder, rod end (20" long) D36202 manifold

2шт.

27a

R30835

HOSE ASSY.

HOSE - at angle cylinder, rod end (19" long) R30914 manifold

2шт.

28

D28205

PIPE

TUBE - angling cylinder, rod end

2шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 30 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

31

R26163

HOSE

- at angle cylinder, closed end (29-1/2" long) D36202 manifold

2шт.

31a

R30836

HOSE

- at angle cylinder, closed end (28" long) R30914 manifold

2шт.

32

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- special, 90 degree, Includes: Ref.#33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

34

REF

INSTRUCTION

CYLINDER - angling (See Fig.38 for cylinders)

2шт.

35

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose and tube to cylinder, Includes: Ref.#36

2шт.

36

D36129

HOSE ASSY.

HOSE - at tilt cylinder (57" long) D36202 manifold

2шт.

36a

30953

HOSE - at tilt cylinder (57" long) R30914 manifold

2шт.

37

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 38 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

39

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 45 degree, Includes: Ref.#40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

41

REF

INSTRUCTION

CYLINDER - tilt (See Fig. 340 for cylinders)

1шт.
