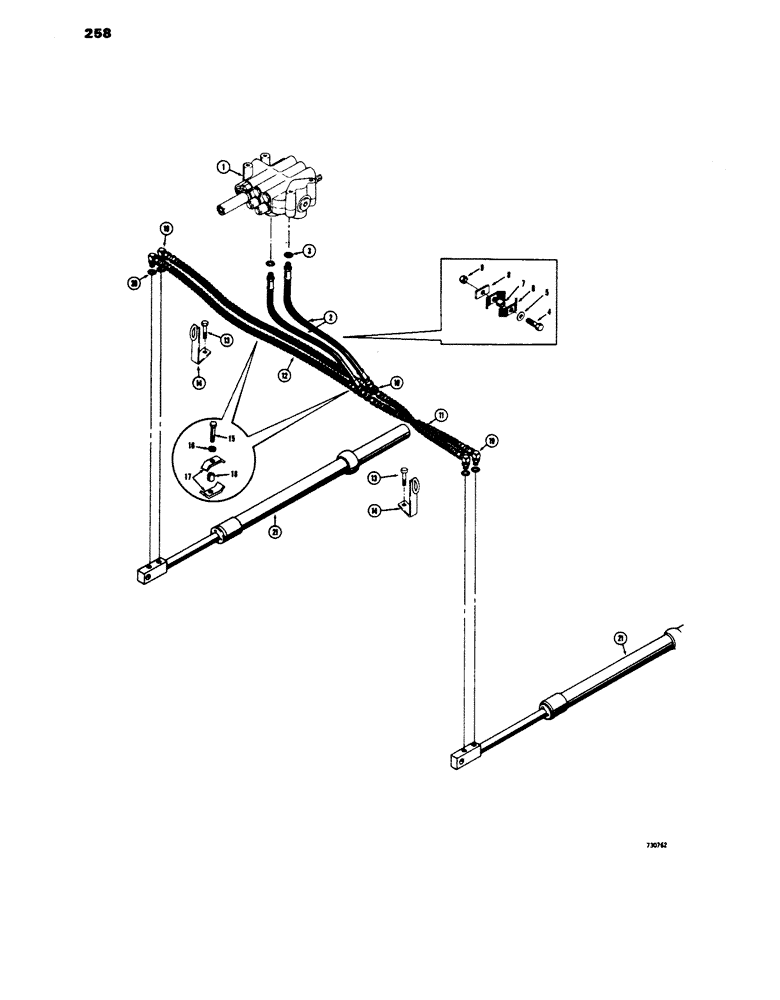

Запчасти Case 450 (258) - POWER ANGLING DOZER HYDRAULICS, (ANGLING CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (See Figs. 290, 292, and 296 for proper valve)

1шт.

2

D34838

HOSE

- valve to tee (33" long), Includes: Ref.#3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

HHCS - 5/16" - 18 NC x 2-1/2"

1шт.

5

195-21

WASHER,5/16"

- std. wrot () 5/16"

1шт.

6

D33316

CLAMP

- hose

2шт.

7

D33829

BUSHING

SPACER - clamp

1шт.

8

D35211

BLOCK - clamp

1шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

10

218-595

TEE,7/8"-14, 37 Degree

- hose

1шт.

11

D34834

HOSE

- tee to angling cylinder, R.H. (23" long)

2шт.

12

D34836

HOSE

- tee to angling cylinder, L.H. (49" long)

2шт.

13

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

14

D40793

GUIDE - hose

2шт.

15

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

17

R17319

CLAMP

- hose

4шт.

18

D33829

BUSHING

SPACER - clamp

2шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref.#20

4шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

21

REF

INSTRUCTION

CYLINDER - angling (See Fig. 338 for proper cylinders)

2шт.
