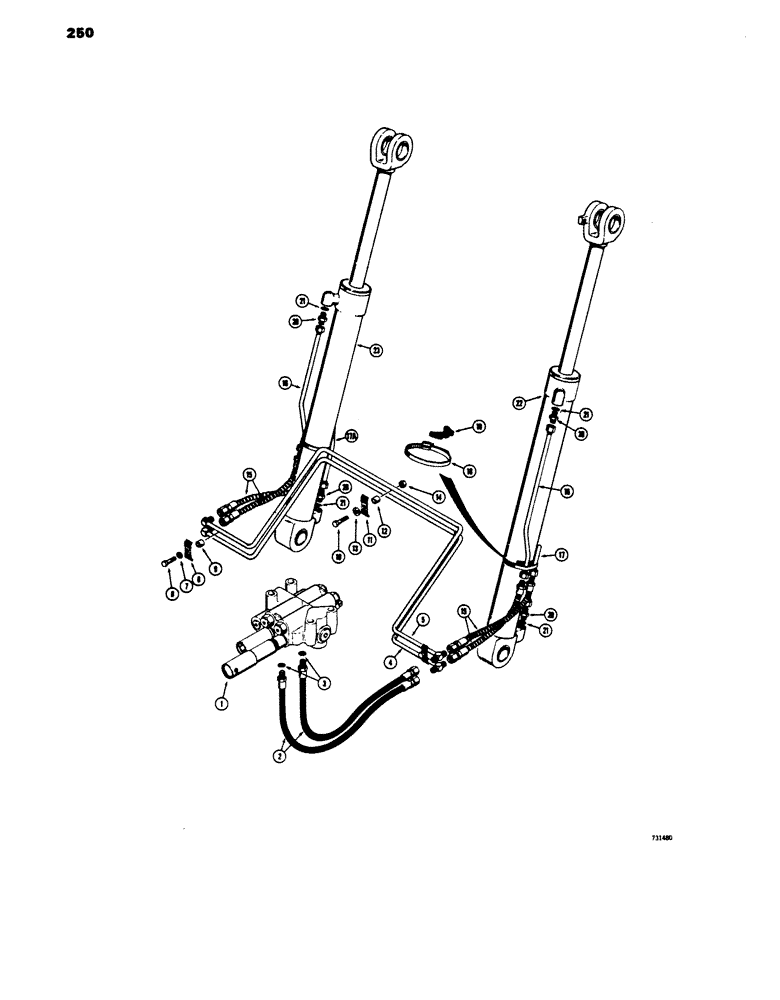

Запчасти Case 450 (250) - LOADER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - loader control (See Figs. 290, 292 and 296 for proper valve)

1шт.

2

D34782

HOSE

- valve to crossover (20" long), Includes: Ref.#3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D34774

TUBE

- crossover, lift (Lower)

1шт.

5

D34830

TUBE

- crossover, lift (Upper)

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

7

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

8

R17319

CLAMP

- tube

2шт.

9

D33552

BUSHING

SPACER - clamp

2шт.

10

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

11

R17319

CLAMP

- tube

1шт.

12

D33552

BUSHING

SPACER - clamp

1шт.

13

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

15

D34780

HOSE

- crossover tube to lift cylinder (19" long)

4шт.

16

R31355

TUBE,0.625" OD x 21.2" L

- lift cylinder, rod end

2шт.

17

R31353

TUBE

- lift cylinder, closed end (R.H.)

1шт.

17a

R31352

TUBE,0.625" OD x 15, 4.64" L

- lift cylinder, closed end (L.H.)

1шт.

18

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - rod to lift cylinder (Replaces 214-268)

2шт.

19

R24703

SUPPORT

SADDLE - tube, rubber (Replaces D39502)

2шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref#21

4шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

22

REF

INSTRUCTION

CYLINDER - lift (R.H.) See Fig. 336 for cylinders

1шт.

23

REF

INSTRUCTION

CYLINDER - lift (L.H.) See Fig. 336 for cylinders

1шт.
