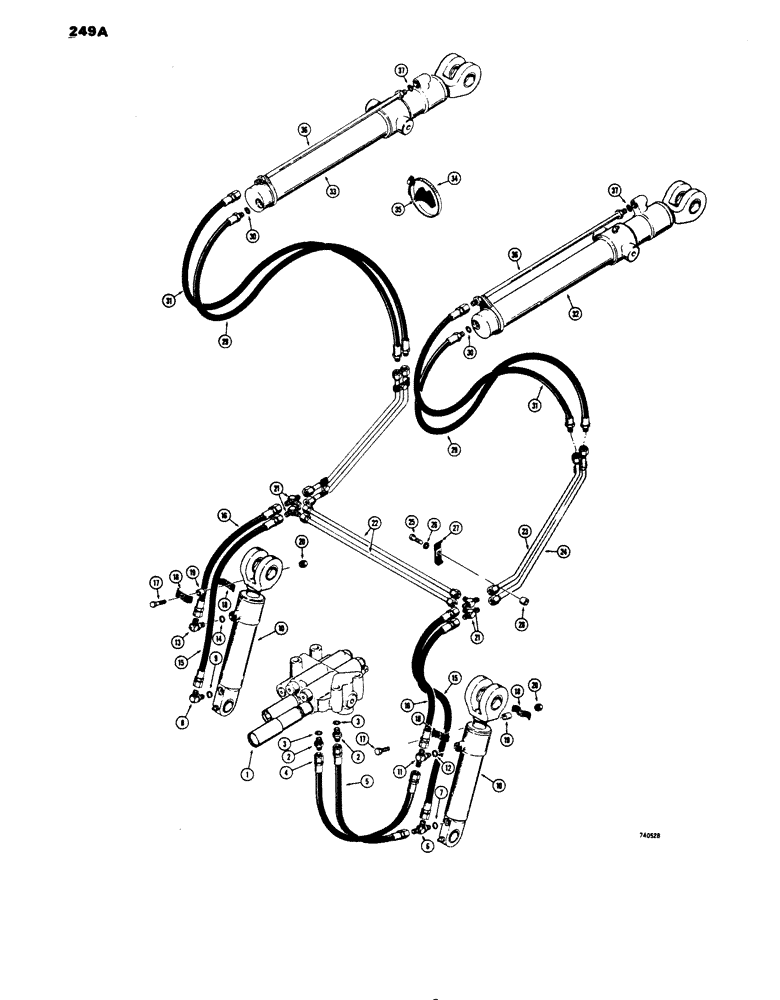

Запчасти Case 450 (249A) - LOADER DUMP AND HYDRA-LEVELING HYDRAULICS, USED TRACTOR SN 3056521 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control (See Fig. 290, 292, and 296 for proper valve)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref.#3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

L51198

HOSE,0.50" ID x 28.00", SAE 100R2 Type A

ASSY, 0.50" ID x 28.00", SAE 100R2, At Valve, Rear Port

1шт.

5

D30537

HOSE

- at valve, front port (19-3/8" long)

1шт.

6

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, Includes: Ref.#7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref.#9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

10

REF

INSTRUCTION

CYLINDER - hydra-leveling (See Fig. 336 for cylinders)

2шт.

11

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, male, Includes: Ref.#12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref.#14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

L46723

HOSE

- closed end of cylinder, 42" long

2шт.

16

D27978

HOSE

- rod end of cylinder, 30-3/4" long

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

18

R15257

CLAMP

- hose

4шт.

19

D36524

BUSHING

SPACER - clamp

2шт.

20

REF

INSTRUCTION

NUT - hex., lock (3/8" - 16 NC)

2шт.

21

218-595

TEE,7/8"-14, 37 Degree

- male

4шт.

22

D34768

TUBE

- crossover

2шт.

23

R30528

TUBE,0.625" OD x 14.75, 17.58" L

- lift arm, upper

2шт.

24

R30530

TUBE,0.625" OD x 16.3, 19.4" L

- lift arm, lower

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

26

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

27

D33316

CLAMP

- tube

4шт.

28

D33552

BUSHING

SPACER - clamp

4шт.

29

L13750

HOSE

- closed end of cylinder, 35" long, Includes: Ref.#30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

31

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- rod end of cylinder, 40" long

1шт.

32

REF

INSTRUCTION

CYLINDER - dump, R.H. (See Fig. 336 for cylinders)

1шт.

33

REF

INSTRUCTION

CYLINDER - dump, L.H. (See Fig. 336 for cylinders)

1шт.

34

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

35

R24703

SUPPORT

SADDLE - tube, rubber

2шт.

36

L13737

TUBE

- cylinder, rod end

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

2шт.
