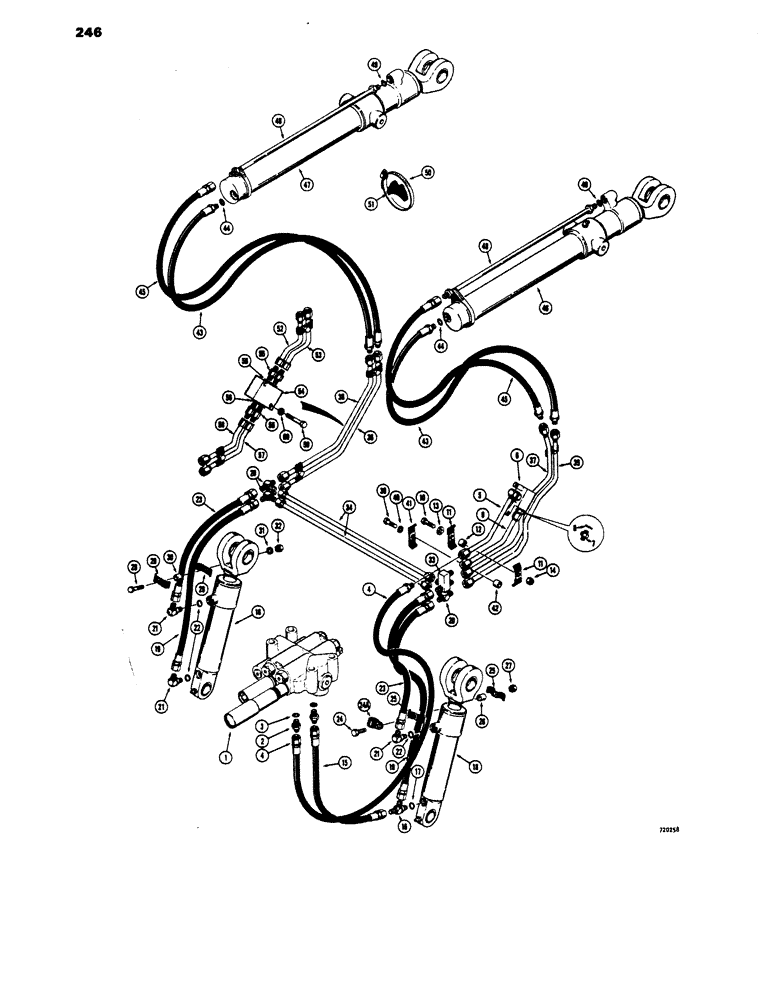

Запчасти Case 450 (246) - LOADER DUMP AND HYDRA-LEVELING HYDRAULICS, USED BEFORE TRACTOR S/N 3056521 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (See Figs. 290, 292 and 296 for proper valve)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref.#3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D21700

HOSE

- valve to lock valve (65" long) Used on models with return-to-dig feature

1шт.

R15559

HOSE - valve to lock valve (62-1/2" long) used on models without return-to-dig feature

1шт.

5

D43566

TUBE

- valve to lock valve

1шт.

6

D43550

VALVE

- hydraulic lock (Parts list Fig. 242)

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref.#8

1шт.

9

D43556

TUBE

- lock valve to crossover (Before tractor Sn. 3049198 except ROPS models), Serial Range: -3049198

1шт.

9

R27946

TUBE - lock valve to crossover (Tractor Sn. 3049198 and after/or previous ROPS models), Start Serial: 3049198

1шт.

10

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

11

D33316

CLAMP

- hose

2шт.

12

D33552

BUSHING

SPACER - clamp

1шт.

13

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

15

D30537

HOSE

- valve to cylinder (19-3/8" long)

1шт.

16

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- special, adjustable

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

18

REF

INSTRUCTION

CYLINDER - hydra-leveling (See Fig. 336 for cylinders)

2шт.

19

D23062

HOSE

- closed end of leveling cylinder, 38" long (Before tractor Sn. 3049198 except ROPS models), Serial Range: -3049198

2шт.

19

L46723

HOSE

- closed end of leveling cylinder, 42" long (Tractor Sn. 3049198 and after/or previous ROPS models), Start Serial: 3049198

3шт.

20

218-595

TEE,7/8"-14, 37 Degree

- crossover

3шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree

3шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

23

D25670

FLEXIBLE HOSE

HOSE - rod end of leveling cylinder, 26" long (Models without return-to-dig feature)

2шт.

23

D28115

HOSE

- rod end of leveling cylinder, 27-1/2" long (Return-To-Dig models before tractor Sn. 3049198 except ROPS models), Serial Range: -3049198

2шт.

23

D27978

HOSE

- rod end of leveling cylinder, 30-3/4" long (Return-To-Dig Models tractor Sn. 3049198 and after/or previous ROPS models), Start Serial: 3049198

2шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

24a

R15257

CLAMP

- hose, "P"

1шт.

25

R15257

CLAMP

- hose

2шт.

26

D38524

SPACER

- clamp

2шт.

27

131-179

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

1шт.

28

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

29

D33316

CLAMP

- hose

2шт.

30

D36524

BUSHING

SPACER - clamp

1шт.

31

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

32

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

33

D45340

ADAPTER

FITTING - special

1шт.

34

D34768

TUBE

- crossover

2шт.

35

D43552

TUBE

- lower, R.H. (Before Tractor Sn. 3049198 except ROPS models), Serial Range: -3049198

1шт.

35

R27944

TUBE - lower, R.H. (Tractor Sn. 3049198 and after/or previous ROPS models), Start Serial: 3049198

1шт.

36

D43445

TUBE - lower, L.H. (Models without relief valve)

1шт.

37

D43553

TUBE

- upper, R.H. (Before tractor Sn. 3049198 except ROPS models), Serial Range: -3049198

1шт.

37

R27945

TUBE - upper, R.H. (Tractor Sn. 3049198 and after/or previous ROPS models), Start Serial: 3049198

1шт.

38

D43555

TUBE

- upper, L.H. (Models without relief valve)

1шт.

39

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

40

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

41

D33316

CLAMP

- tube

4шт.

42

D33552

BUSHING

SPACER - clamp

4шт.

43

L13750

HOSE

- dump cylinder, closed end (35" long)

2шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

45

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- dump cylinder, rod end (40" long)

2шт.

46

REF

INSTRUCTION

CYLINDER - dump, R.H. (See Fig. 336 for cylinders)

1шт.

47

REF

INSTRUCTION

CYLINDER - dump, L.H. (See Fig. 336 for cylinders)

1шт.

48

L13737

TUBE

- dump cylinder, rod end

2шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

50

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

51

R24703

SUPPORT

SADDLE - tube, rubber

2шт.

52

D46998

TUBE

- upper, L.H. (Relief valve to cylinder), anti-rollback used on trac s/n 3040800 & after, Start Serial: 3040800

1шт.

53

D47000

TUBE

- lower, L.H. (Relief valve to cylinder), anti-rollback used on trac s/n 3040800 & after, Start Serial: 3040800

1шт.

54

D46850

VALVE

- relief (Parts list Fig. 288), anti-rollback used on trac s/n 3040800 & after, Start Serial: 3040800

1шт.

55

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, anti-rollback w/ relief valve used on trac s/n 3040800 & after, Start Serial: 3040800

4шт.

56

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, anti-rollback w/ relief valve used on trac s/n 3040800 & after, Start Serial: 3040800

1шт.

57

D47004

TUBE

- lower, L.H. (At relief valve) Before tractor Sn. 3049198 except ROPS models), anti-rollback used on trac s/n 3040800 & after, Serial Range: -3049198

1шт.

57

R27943

TUBE - upper, L.H. (At relief valve) Tractor Sn. 3049198 and after/or previous ROPS models, anti-rollback used on trac s/n 3040800 & after, Start Serial: 3049198

1шт.

58

R47002

TUBE - upper, L.H. (At relief valve) Before tractor Sn. 3049198 except ROPS models, anti-rollback used on trac s/n 3040800 & after, Serial Range: -3049198

1шт.

58

R27942

HOSE

TUBE - upper, L.H. (At relief valve) Tractor Sn. 3049198 and after/or previous ROPS models, anti-rollback used on trac s/n 3040800 & after, Start Serial: 3049198

1шт.

59

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Anti-rollback w/ relief valve used on trac S/N 3040800 & after Hex, 3/8"-16 x 2", G5, Serial Range: -3040800

2шт.

60

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, , anti-rollback w/ relief valve used on trac s/n 3040800 & after 3/8", Start Serial: 3040800

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
