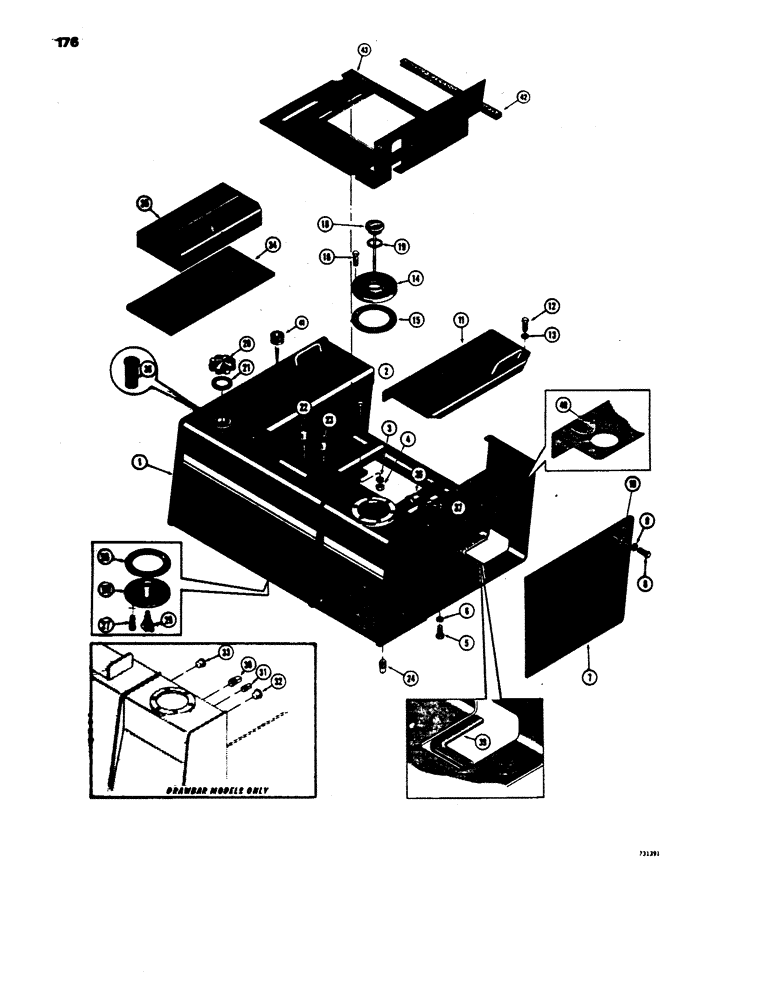

Запчасти Case 450 (176) - FUEL AND HYDRAULIC TANK ASSEMBLY (07) - HYDRAULIC SYSTEM

1

D43640

TANK

- fuel and hydraulic oil

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

7шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Ripper hose clamp - not shown)

1шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

8шт.

5

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

1шт.

7

D34941

COVER - side, R.H. (See D37251)

1шт.

D37251

COVER - side, R.H. (Backhoe Models with 3 spool valve)

1шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

195-33

WASHER,1/2"

- plain

4шт.

11

D34943

COVER - top, R.H. (Used without return-to-dig feature)

1шт.

D44324

HOSE

COVER - top, R.H. (Used with return-to-dig feature) (Replaces D44243)

1шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

13

92-8

LOCK WASHER,1/2"

3шт.

14

D34977

CAP

- hydraulic tank

1шт.

15

D50547

GASKET,1.52mm Thk

- hydraulic, tank cap

1шт.

16

D50550

BOLT

- special

6шт.

18

D34945

DIPSTICK

1шт.

19

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - "O"ring, dipstick

1шт.

20

D31747

COVER

CAP - fuel tank

1шт.

21

D34975

GASKET

- fuel tank cap

1шт.

22

D33027

BREATHER

AIR INLET

1шт.

23

D33028

VALVE

- relief, fuel tank

1шт.

24

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. head (1/2" NPT)

2шт.

25

D34979

COVER

TRAP - water, if used

1шт.

26

D50547

GASKET,1.52mm Thk

- fuel tank, water trap

1шт.

27

D50550

BOLT

- special, water trap

6шт.

28

R27578

PLUG

- tank (If used - Not shown)

1шт.

29

217-81

VALVE

DRAIN COCK - 1/8" NPT

1шт.

30

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe (3/8" NPT) Drawbar Models only

1шт.

31

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" NPT) Drawbar Models only

1шт.

32

353-16

PLUG,Cap, .848" OD

CAPLUG - Drawbar Models only

1шт.

33

353-21

PLUG,Cap, 1.220" OD

CAPLUG - Drawbar Models only

1шт.

34

D35022

GUARD

SHIELD - battery

1шт.

35

R31452

BOX - tool

1шт.

36

R15538

VALVE

AIR INLET - hydraulic tank

1шт.

37

R15536

VALVE

- relief, hydraulic

1шт.

38

D36346

STRAINER ELEMENT

STAINER - fuel

1шт.

39

D38500

LINING

TRIM - hose guard, rubber composition (9-13/16")

1шт.

40

D43403

LINING

TRIM - hose guard, quick edge

1шт.

Use F42827 and cut to fit.

1шт.

41

A23870

GROMMET

- rubber

1шт.

42

D35424

LINING

TRIM - quick edge

1шт.

43

R26140

PANEL

PLATE - under seat

1шт.
