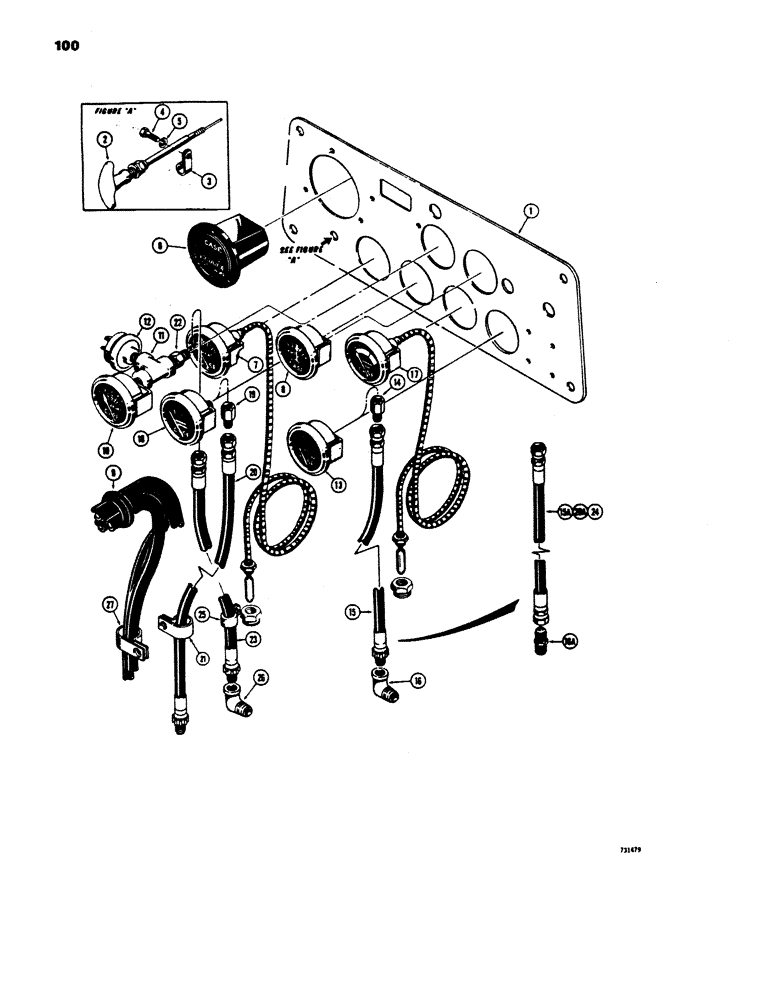

Запчасти Case 450 (100) - INSTRUMENTS AND FUEL SHUT-OFF, LOADER MODELS S.N. 3040774 AND AFTER (06) - ELECTRICAL SYSTEMS

1

D43660

PANEL

- instrument

1шт.

2

R42067

CABLE

CONTROL - engine shut-off

1шт.

Ref. 2A, L33717 Knob for the (Ref 2) Engine Shut Off Control.

1шт.

3

A26673

CLIP

CLAMP - engine shut-off control

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

REF

INSTRUCTION

HOURMETER - Fig. 92

1шт.

7

10839

ELECTRICAL GAUGE

GAUGE - heat indicator, engine

1шт.

8

R18748

AMMETER

GAUGE - ammeter

1шт.

9

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

1шт.

10

D22853

GAUGE

- engine oil pressure

1шт.

11

217-10

TEE,1/8" - 27 NPTF Fem

- pipe (1/8" NPT)

1шт.

12

REF

INSTRUCTION

SWITCH - pressure (Parts list Fig. 92)

1шт.

13

D29570

GAUGE

- transmission oil pressure

1шт.

14

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

CONNECTOR - straight

1шт.

15

D95004

HOSE

- transmission to pressure gauge (When stock is exhausted, use D95114 hose and 218-441 adapter)

1шт.

15a

D95114

HOSE

- transmission to pressure gauge

1шт.

16

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (D95004 hose) 90º, 1/8"-27, NPT

1шт.

16a

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male (Use on D95114, D95116 and D95117 hose)

3шт.

17

D44005

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

18

R15953

GAUGE

- converter oil pressure

1шт.

19

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

CONNECTOR - straight

1шт.

20

D95006

HOSE

- torque converter to pressure gauge (When stock is exhausted use D95116 hose and 218-441 adapter), Serial Range: -3041799

1шт.

20a

D95116

HOSE

- torque converter to pressure gauge, Start Serial: 3041799

1шт.

21

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- converter temperature line, engine temperature line and converter pressure hose

1шт.

22

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight

1шт.

23

D95007

HOSE

- engine to oil pressure gauge(When stock is exhausted, use D95117 hose and 218-441 adapter), Serial Range: -3041799

1шт.

24

D95117

HOSE

- engine oil pressure gauge, Start Serial: 3041799

1шт.

25

49838

CLAMP

- D95007 hose

1шт.

26

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (D95007 hose) 90º, 1/8"-27, NPT

1шт.

27

R14668

CLAMP

- D95007 and D95004 hose

1шт.
