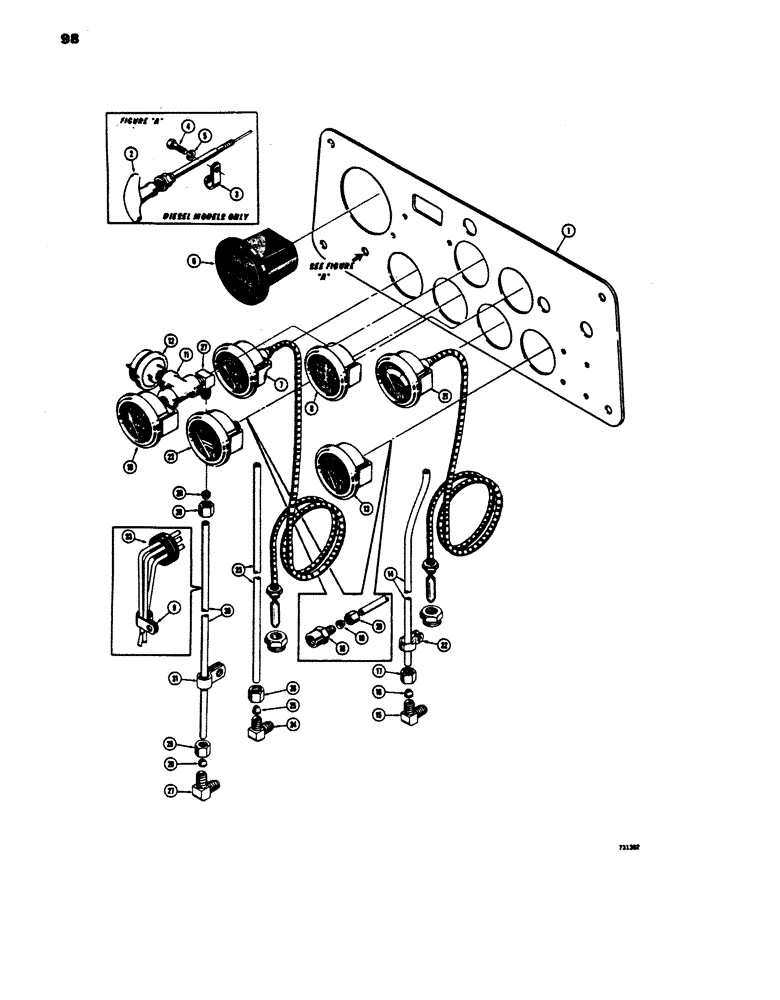

Запчасти Case 450 (098) - INSTRUMENTS AND FUEL SHUT-OFF, LOADER MODELS BEFORE S.N. 3040774 (06) - ELECTRICAL SYSTEMS

1

D43660

PANEL

- instrument

1шт.

2

R30306

SEAL

CONTROL - engine shut-off

1шт.

Ref. 2A, L33717 Knob for the (Ref 2) Engine Shut Off Control.

1шт.

3

A26673

CLIP

CLAMP - engine shut-off

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

REF

INSTRUCTION

HOURMETER - Fig. 92

1шт.

7

D22768

ELECTRICAL GAUGE

GAUGE - heat indicator, engine

1шт.

8

R18748

AMMETER

GAUGE - ammeter

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tubes, use existing hardware

1шт.

10

D22853

GAUGE

- oil pressure, engine

1шт.

11

221-421

TEE,1/8" NPT

- pipe () 1/8" NPT

1шт.

12

REF

INSTRUCTION

SWITCH - pressure assembly (Parts list Fig. 92)

1шт.

13

D29570

GAUGE

- transmission oil pressure

1шт.

14

D35089

TUBE

- transmission to pressure gauge (To convert from tube to hose, order D95004 hose, 218-461 connector and 211-411 elbow for service)

1шт.

15

D35081

FITTING

ELBOW - male, special, Includes: Ref.#16 & 17

1шт.

16

D37176

SLEEVE

- elbow

1шт.

17

D373762

NUT - elbow

1шт.

18

D35091

PIPE FITTING

CONNECTOR - female, special, Includes: Ref.#19 & 20

2шт.

19

D37176

SLEEVE

- connector

1шт.

20

D37362

TUBE NUT

- connector

1шт.

21

D44005

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

22

R15953

GAUGE

- converter oil pressure

1шт.

23

D35089

TUBE

- torque converter to pressure gauge (To convert from tube to hose, order D95006 hose and 218-461 connector for service)

1шт.

24

D35081

FITTING

ELBOW - male, special, Includes: Ref.#25 & 26

1шт.

25

D37176

SLEEVE

- elbow

1шт.

26

D37362

TUBE NUT

- elbow

1шт.

27

D35081

FITTING

ELBOW - male, special, Includes: Ref.#28 & 29

2шт.

28

D37176

SLEEVE

- elbow

1шт.

29

D37362

TUBE NUT

- elbow

1шт.

30

D35090

TUBE

- engine to oil pressure gauge (To convert from tube to hose, order D95007 hose, 221-411 elbow and 218-441 connector for service)

1шт.

31

80049853

YOKE

- pressure tube

1шт.

32

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- transmission oil pressure tube

1шт.

33

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- tubes

1шт.
