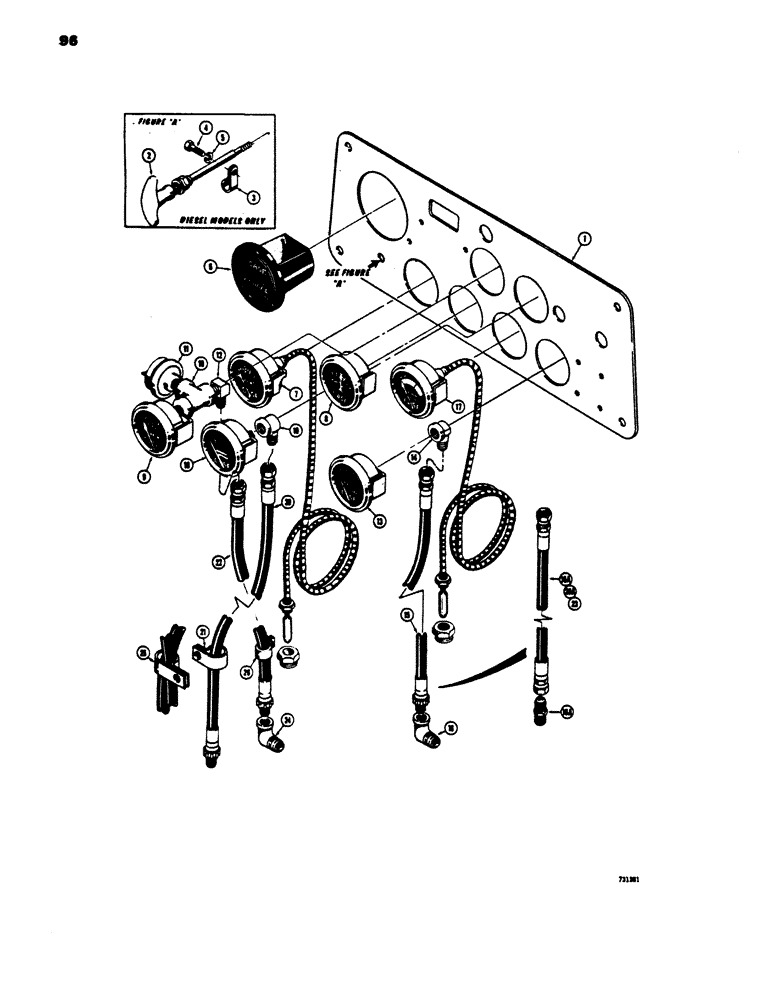

Запчасти Case 450 (096) - INSTRUMENTS AND FUEL SHUT-OFF, DOZER AND DRAWBAR MODELS S.N. 3040774 AND AFTER (06) - ELECTRICAL SYSTEMS

1

D43660

PANEL

- instrument

1шт.

2

R30305

CABLE

CONTROL - engine shut-off

1шт.

Ref. 2A, L33717 Knob for the (Ref 2) Engine Shut Off Control.

1шт.

3

A26673

CLIP

CLAMP - engine shut-off

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

REF

INSTRUCTION

HOURMETER - see Fig. 92

1шт.

7

D22768

ELECTRICAL GAUGE

GAUGE - heat indicator, engine

1шт.

8

R18748

AMMETER

GAUGE - ammeter

1шт.

9

D22853

GAUGE

- engine oil pressure

1шт.

10

217-10

TEE,1/8" - 27 NPTF Fem

- pipe (1/8" NPT)

1шт.

11

REF

INSTRUCTION

SWITCH - pressure (Parts list Fig. 92)

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree

1шт.

13

D29570

GAUGE

- transmission oil pressure

1шт.

14

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- female, 90 degree

1шт.

15

D95001

HOSE

- transmission to oil pressure gauge (When stock is exhausted, use D95111 hose and 218-441 adapter)

1шт.

15a

D95111

HOSE

- transmission to oil pressure gauge

1шт.

16

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (D95001 hose only) 90º, 1/8"-27, NPT

1шт.

16a

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, 90 degree (D95111, D95112 and D95115 hose)

3шт.

17

D44500

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

18

R15953

GAUGE

- converter oil pressure

1шт.

19

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- female, 90 degree

1шт.

20

D95002

HOSE

- torque converter to oil pressure gauge (When stock is exhausted, used D95112 hose and 218-441 adapter), Serial Range: -3041797

1шт.

20a

D95112

HOSE

- torque convert to oil pressure gauge, Start Serial: 3041797

1шт.

21

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- D95002 hose, converter temperature line and engine temperature line

1шт.

22

D95005

HOSE

- engine to oil pressure gauge (When stock is exhausted, use D95115 hose and 218-441 adapter), Serial Range: -3041797

1шт.

23

D95115

HOSE

- engine to oil pressure gauge, Start Serial: 3041797

1шт.

24

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (D95005 hose only) 90º, 1/8"-27, NPT

1шт.

25

R14668

CLAMP

- hose (D95005 and D95001 hoses)

1шт.

26

49838

CLAMP

- hose, engine oil pressure

1шт.
