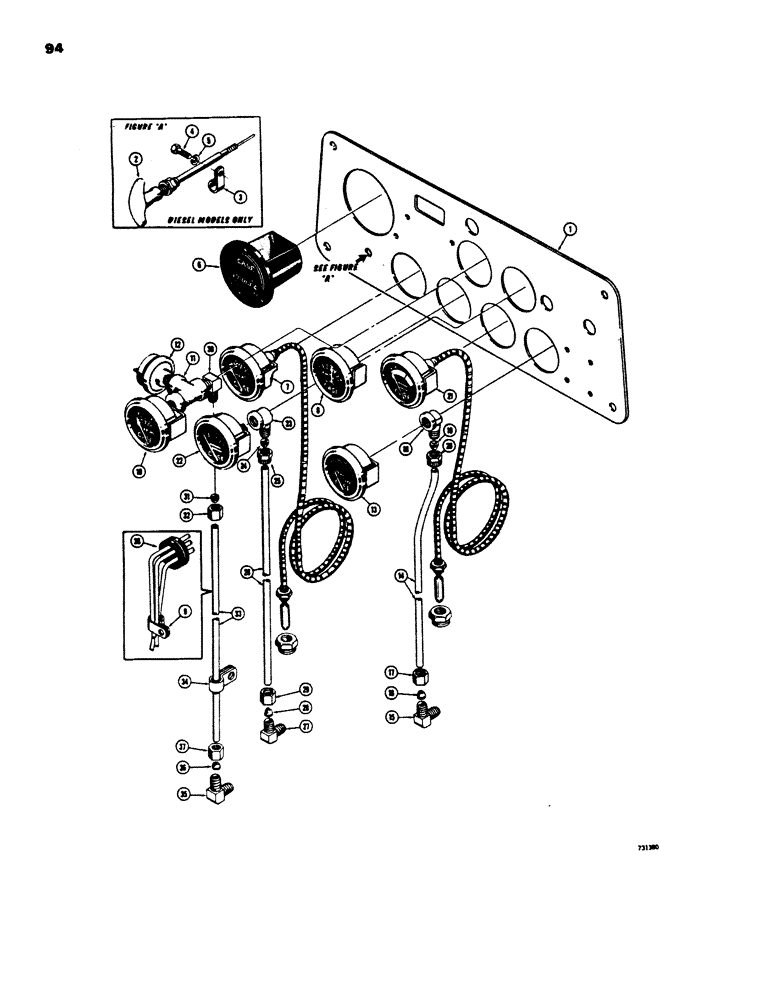

Запчасти Case 450 (094) - INSTRUMENTS AND FUEL SHUT-OFF, DOZER AND DRAWBAR MODELS BEFORE A.N. 3040774 (06) - ELECTRICAL SYSTEMS

1

D43660

PANEL

- instrument

1шт.

2

R30305

CABLE

CONTROL - engine shut-off

1шт.

Ref. 2A, L33717 Knob for the (Ref 2) Engine Shut Off Control.

1шт.

3

A26673

CLIP

CLAMP - engine shut-off

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

REF

INSTRUCTION

HOURMETER - Fig. 92

1шт.

7

D22768

ELECTRICAL GAUGE

GAUGE - heat indicator, engine

1шт.

8

R18748

AMMETER

GAUGE - ammeter

1шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tubes, use existing hardware

1шт.

10

D22853

GAUGE

- oil pressure

1шт.

11

221-421

TEE,1/8" NPT

- pipe () 1/8" NPT

1шт.

12

REF

INSTRUCTION

SWITCH - pressure assembly (Parts list Fig. 92)

1шт.

13

D29570

GAUGE

- transmission oil pressure

1шт.

14

D35275

TUBE

- transmission to pressure gauge (To convert from tube to hose, order D95001 hose, 221-411 elbow and 218-511 elbow for service)

1шт.

15

D35081

FITTING

ELBOW - male, special, Includes: Ref.#16 & 17

1шт.

16

D37176

SLEEVE

- elbow

1шт.

17

D37362

TUBE NUT

- elbow

1шт.

18

D35895

FITTING

ELBOW - female, special, Includes: Ref.#19 & 20

1шт.

19

D37177

SLEEVE

- elbow

1шт.

20

D37178

NUT

- elbow

1шт.

21

D44500

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

22

R15953

GAUGE

- converter oil pressure

1шт.

23

D35895

FITTING

ELBOW - female, special, Includes: Ref.#24 & 25

1шт.

24

D37177

SLEEVE

- elbow

1шт.

25

D37178

NUT

- elbow

1шт.

26

D35275

TUBE

- torque converter to pressure gauge (To convert from tube to hose, order D95002 hose and 218-511 elbow for service)

1шт.

27

D35081

FITTING

ELBOW - male, special, Includes: Ref.#28 & 29

1шт.

28

D37176

SLEEVE

- elbow

1шт.

29

D37362

TUBE NUT

- elbow

1шт.

30

D35081

FITTING

ELBOW - male, special

1шт.

31

D37176

SLEEVE

- elbow

1шт.

32

D37362

TUBE NUT

- elbow

1шт.

33

D35090

TUBE

- engine to oil pressure gauge (To convert from tube to hose, order D95005 hose, 221-411 elbow and 218-481 elbow for service)

1шт.

34

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- pressure tube

1шт.

35

D35081

FITTING

ELBOW - male, special, Includes: Ref.#31 & 32

1шт.

36

D37176

SLEEVE

- elbow

1шт.

37

D37362

TUBE NUT

- elbow

1шт.

38

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

1шт.
