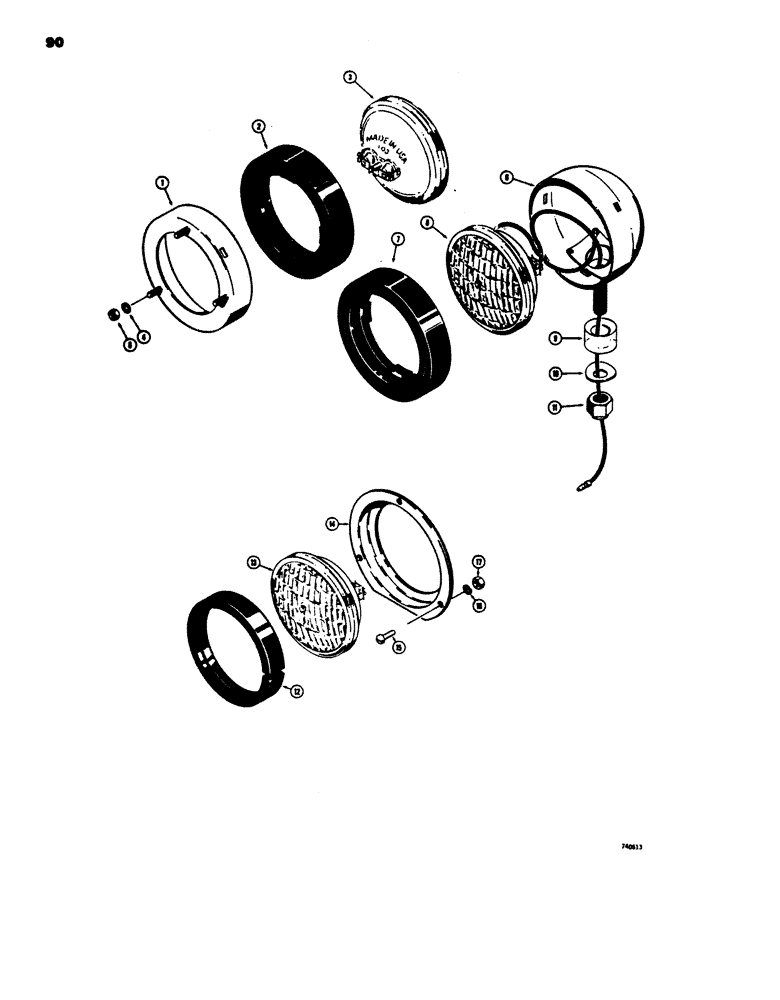

Запчасти Case 450 (090) - D30243 HEADLIGHT ASSEMBLY, EARLY PRODUCTION, MOUNTING RETAINED BY STUDS (06) - ELECTRICAL SYSTEMS

D30243

LAMP

HEADLIGHT ASSEMBLY, Includes: Ref.#1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - lamp retaining

1шт.

2

D31441

RETAINER

- rubber (Guide Lamp)

1шт.

A25213

RETAINER

- rubber (Hobbs)

1шт.

3

D33182

LAMP

- sealed unit

1шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex. (No. 10-24 NC) Zinc plated

6шт.

D34934

LAMP

TAILLIGHT ASSEMBLY, Includes: Ref.# 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL - lamp, tail assembly

1шт.

7

A25213

RETAINER

- lamp, rubber, tail assembly

1шт.

8

A24572

LAMP

- sealed unit, tail assembly

1шт.

9

D37048

BUSHING

- pivot, taillight assembly

1шт.

10

D37049

WASHER

- special, taillight assembly

1шт.

11

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock, hex. (1/2" - 20 NF), taillight assembly

1шт.

12

D57287

RETAINER

SEAL - light (Rubber retainer), head late production mounting retained by bolts

2шт.

13

D33182

LAMP

- sealed unit, headlight late production mounting retained by bolts

2шт.

14

D57288

RING

RETAINER - headlight late production mounting retained by bolts

2шт.

15

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head (#10 - 24 NC x 1/2"), headlight late production mounting retained by bolts

6шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Headlight late production mounting retained by bolts #10

6шт.

17

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) plated, headlight late production mounting retained by bolts

6шт.
