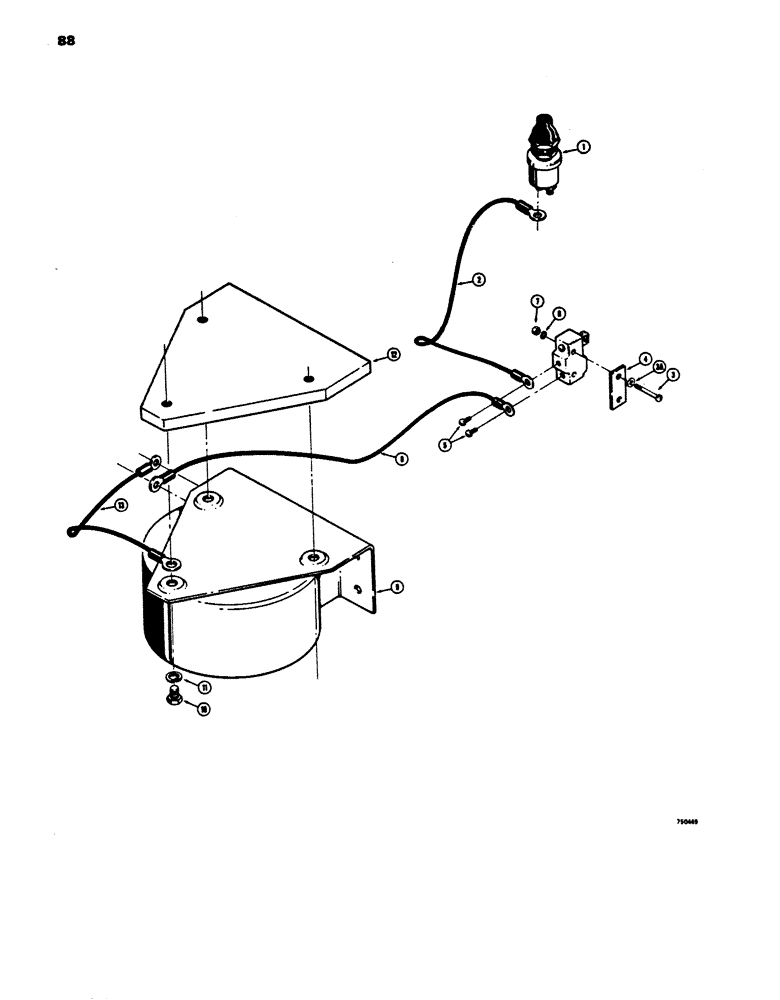

Запчасти Case 450 (088) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- starter, button

1шт.

2

R34959

WIRE - starter switch to alarm switch

1шт.

3

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- fillister head, slotted (#6 - 32 NC x 1-1/4")

2шт.

3a

195-507

WASHER,#6

- flat, (Replaces 195-7) #6

2шт.

4

R31181

PLATE

SPACER - plate

1шт.

5

D40921

SWITCH

- backup alarm

1шт.

6

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER - med. sect. lock (#6)

2шт.

7

129-15

NUT,#6-32

2шт.

8

R33549

BOLT

WIRE -, Serial Range: switch-alarm

1шт.

9

S223033

BUZZER

ALARM - backup

1шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

R31184

PLATE - mounting, alarm

1шт.

13

R34956

ELECTRICAL WIRE

WIRE - ground, alarm

1шт.
