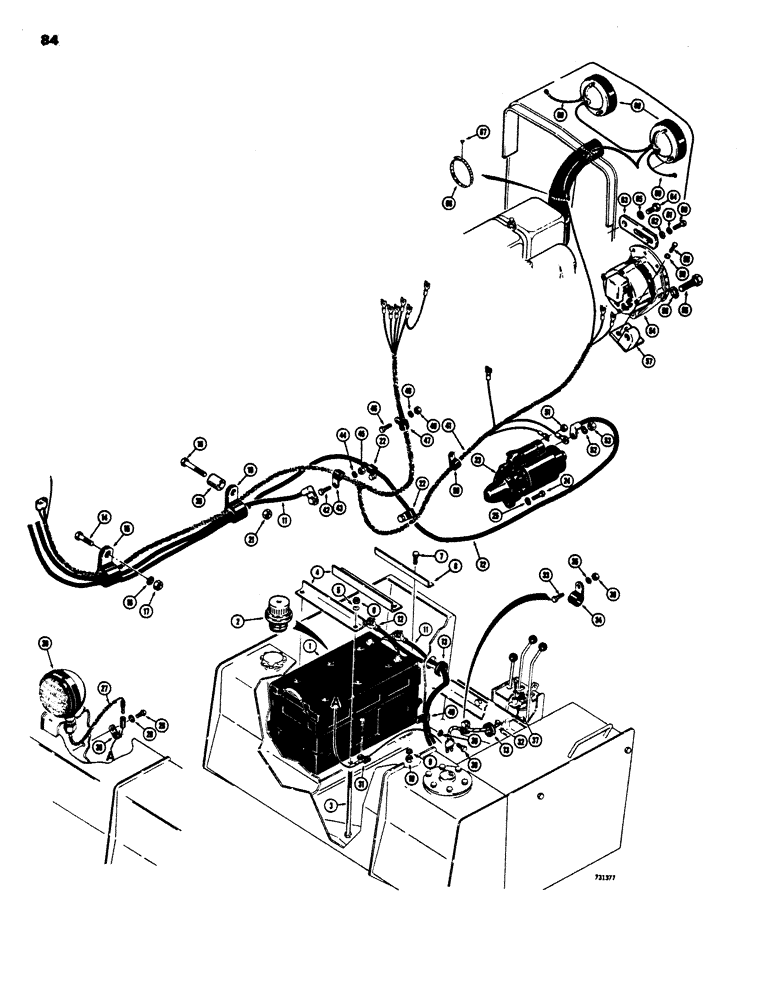

Запчасти Case 450 (084) - ELECTRICAL SYSTEM, MODELS WITH ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

D44178

DRY BATTERY

- 12 volt, dry charge (Service Replacement)

1шт.

Battery has standard caps which are to be replaced with non spill caps from old battery (If used) or order R30819 caps.

1шт.

2

R30819

CYLINDER END CAP

CAP - battery, non spill

6шт.

3

R21737

BOLT

ROD - holddown, battery

4шт.

4

D44204

RETAINER

HOLDDOWN - battery

2шт.

5

195-21

WASHER,5/16"

- flat () 5/16"

4шт.

6

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

4шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

8

D44203

RETAINER

- battery, angle

1шт.

9

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

11

D51988

CABLE

- battery, negative

1шт.

12

D51992

CABLE ASSY.

CABLE - battery, positive

1шт.

13

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- battery cable and starter wire

2шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

15

51200320

CLAMP

- cable and harness

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

18

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

19

51200320

CLAMP

- cables and harness

1шт.

20

A27328

SPACER

- clamp

1шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8")

1шт.

22

49838

CLAMP

- cable

2шт.

23

R29870

STARTING MOTOR

MOTOR - starter, Delco-Remy #1109149 (Parts list Fig. 60)

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

25

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

26

D34934

LAMP

LIGHT - tail (Parts list Fig. 60)

1шт.

27

D34933

LOOM

- wire

1шт.

28

414-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8" - 24 NF x 1/2" (Replaces 14-68)

1шт.

29

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

30

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tail light wire

1шт.

31

49832

CLAMP

- tail light wire

1шт.

32

D51991

CABLE PULLING GRIP

WIRE - to starter switch

1шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

34

49832

CLAMP

- starter wire

1шт.

35

92-8

LOCK WASHER,1/2"

1шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

1шт.

37

D34924

SWITCH

- starter, button

1шт.

38

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8" - 24 NF x 1/2"

1шт.

39

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

40

D349980

CLAMP - battery cable

1шт.

41

R30382

HARNESS

- electrical

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

43

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness

1шт.

44

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness

1шт.

48

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

50

49854

CLAMP

- harness

1шт.

51

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps (#8 - 32 NC) Plated

1шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

53

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

54

R30818

ALTERNATOR

- 12 volt (Parts list Fig. 57A)

1шт.

55

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

56

92-8

LOCK WASHER,1/2"

1шт.

57

R30381

BRACKET

- mounting, alternator

1шт.

58

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

59

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

60

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

61

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

62

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

63

R29597

STRAP

- adjusting, alternator

1шт.

64

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

65

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

66

D41076

STRAP

- wire, headlight

2шт.

67

D41075

STUD

- strap

2шт.

68

REF

INSTRUCTION

LIGHT - head (See Fig. 90 for lights)

2шт.

69

A11768

ELECTRICAL WIRE

WIRE - jumper

1-2шт.
