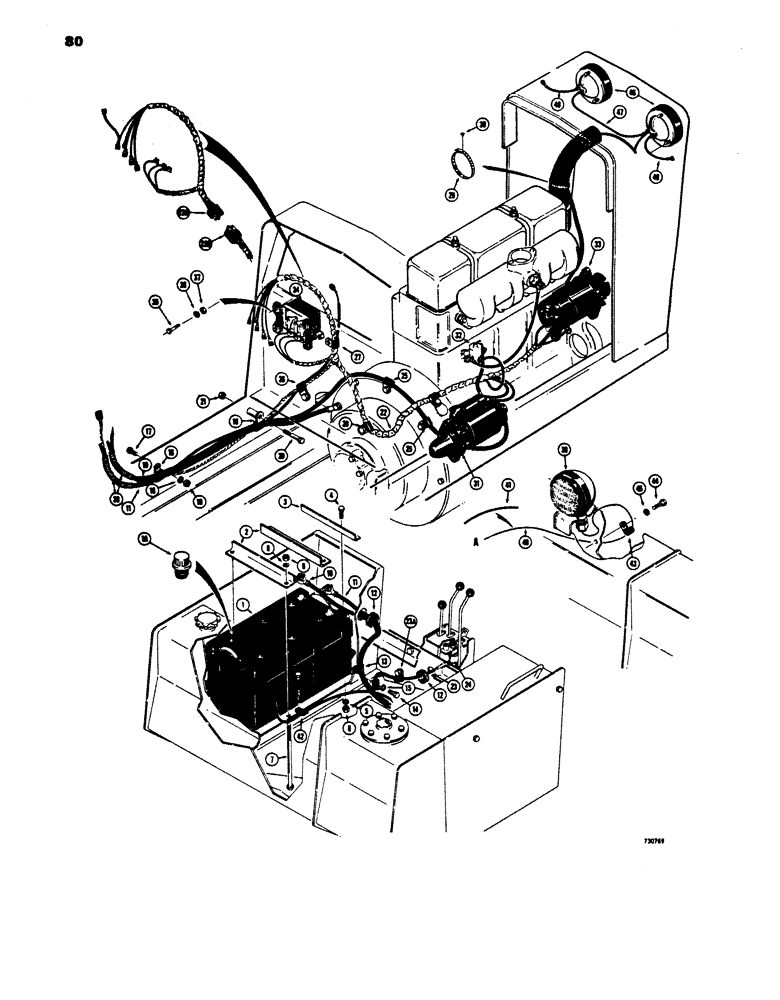

Запчасти Case 450 (080) - ELECTRICAL SYSTEM, MODELS WITH GENERATOR (06) - ELECTRICAL SYSTEMS

1

D44178

DRY BATTERY

- 12 volt, dry charge (Service replacement)

1шт.

Battery has standard caps which are to be replaced with non spill caps from old battery (If used) or order R30819 caps.

1шт.

1a

R30819

CYLINDER END CAP

CAP - battery, non spill

6шт.

2

D44204

RETAINER

BRACKET - battery holddown

2шт.

3

D44203

RETAINER

BRACKET - battery retainer

1шт.

4

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

R21737

BOLT

ROD - battery holddown

4шт.

8

195-21

WASHER,5/16"

- flat () 5/16"

4шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

4шт.

10

D51992

CABLE ASSY.

CABLE - battery, positive (Hot)

1шт.

11

D51988

CABLE

- battery, negative (Ground)

1шт.

12

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

13

D34980

CLAMP

- battery cable

1шт.

14

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

HHCS - 3/8" - 24 NF x 1/2" (Replaces 14-68)

1шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

16

51200320

CLAMP

- main wiring harness

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, (Replaces 25-108) 1/2"-13, G5

1шт.

20

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

1шт.

22

D39734

WIRE HARNESS

MAIN WIRING HARNESS - one piece (Use D51993 and D51994)

1шт.

22a

D51993

HARNESS

- wiring, instrument panel and regulator (2 piece)

1шт.

22b

D51994

HARNESS

- wiring, to lights (2 piece)

1шт.

23

D51991

CABLE PULLING GRIP

WIRE ASSEMBLY - starter switch

1шт.

23a

49832

CLAMP

- wire

1шт.

24

D34924

SWITCH

- starter (Transmission control tower)

1шт.

25

49838

CLAMP

- main wiring harness (Dozer Models)

2шт.

26

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- main wiring harness, at cowl (R.H.)

1шт.

27

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- wiring harness (At air cleaner mounting bracket)

1шт.

28

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- main wiring harness (Dozer Models)

1шт.

29

D41076

STRAP

- retainer, headlight wire

2шт.

30

D41075

STUD

- strap

1шт.

31

D39988

X

MOTOR - starter, Delco No. 1107598 Parts list Fig. 64 & 66 (Use D45731 starter), Serial Range: -3031791

1шт.

31

D45731

X

MOTOR - starter, Delco Remy #1108688 Service with R29870 starter, Start Serial: 3031791

1шт.

31

R29370

MOTOR - starter, Delco Remy #1109149 Parts list Fig. 60 and 62, Start Serial: 3031791

1шт.

32

A57069

SOLENOID

- manifold heater (Parts list Fig. 84)

1шт.

33

D27034

GENERATOR

- parts list Fig. 54

1шт.

33

D34009

GENERATOR

- enclosed (Parts list Fig. 56)

1шт.

34

A35233

REGULATOR

- voltage (D27034 generator)

1шт.

A23193

REGULATOR

- voltage (D34009 generator)

1шт.

35

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

4шт.

36

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

38

D43922

GUARD ASSY.

WRAP - battery cable

1шт.

39

D34934

LAMP

LIGHT - tail (Parts list Fig. 90)

1шт.

40

D34935

WIRE - tailight, Serial Range: -3045138

1шт.

41

D34933

LOOM

- wire cover

1шт.

42

49832

CLAMP

- taillight wire, bottom

1шт.

43

80049853

YOKE

- taillight wire, top

1шт.

44

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8" - 24 NF x 1/2"

1шт.

45

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

46

REF

INSTRUCTION

LIGHT - head (Fig. 90 for lights)

1шт.

47

D22271

ELECTRICAL WIRE

WIRE - jumper, headlight, Serial Range: -304138

1шт.

48

A11768

ELECTRICAL WIRE

WIRE - ground, headlight

2шт.
