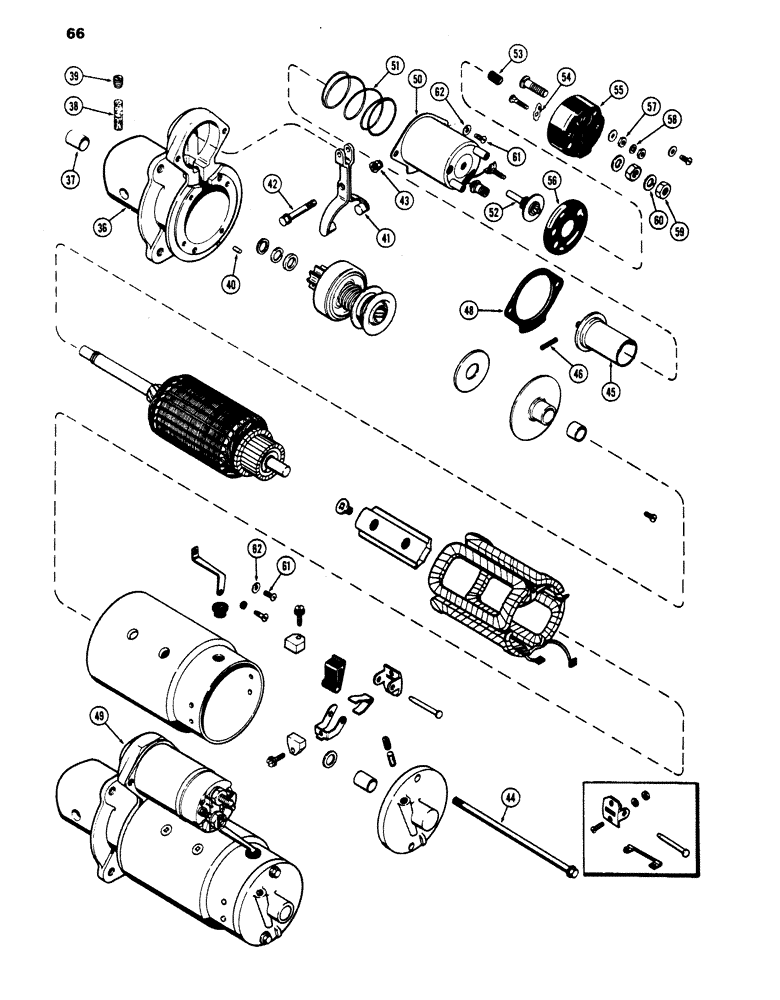

Запчасти Case 450 (066) - D45731 STARTER, (188) DIESEL ENGINE, WITH 9 TOOTH DRIVE PINION (06) - ELECTRICAL SYSTEMS

D45731

X

STARTER ASSY. - (Continued from Fig. 64)

1шт.

36

A40226

FRAME

HOUSING ASSY. - drive end, Includes: Ref.#37 - 39

1шт.

37

A25387

BEARING

BUSHING - drive hsg. (15/32 x 5/8 x 13/16")

1шт.

38

R15023

WICK

- oiler

1шт.

39

221-1041

PLUG

- oil wick hole (1/8" P.T., sltd. hd.)

1шт.

40

R15041

PIN - locating, drive hsg. (3/16 x 5/16")

1шт.

41

A40220

LEVER

- drive shift

1шт.

42

A40520

BOLT

PIVOT - shift lever (Replaces A25401)

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot (5/16" N.C. hex.)

1шт.

44

A25552

BOLT

BOLT - thru

2шт.

45

A40218

PLUNGER

- solenoid

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , plunger to shift lever 3/16" x 13/16", Slotted

1шт.

48

A42126

GASKET

- solenoid to drive hsg.

1шт.

49

G44891

SOLENOID

ASSY. - Includes: Ref.#50 - 60

1шт.

50

NSS

NOT SOLD SEPARAT

CASE ASSY.

1шт.

51

A40221

SPRING

- plunger return

1шт.

52

A42061

SWITCH

CONTACT ASSY.

1шт.

53

A42059

SPRING

- contact return

1шт.

54

A42060

HALF BLADE

BLADE - contact

1шт.

55

NSS

NOT SOLD SEPARAT

COVER - solenoid contact & terminals

1шт.

56

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: cover-solenoid

1шт.

57

129-16

NUT,#8-32

Terminal #8-32

2шт.

58

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

59

87016560

JAM NUT,Jam, 3/8"-16, G5

Terminal Jam, 3/8"-16, G5

2шт.

60

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal 3/8"

1шт.

61

A42023

SCREW,#10 - 32 x 1/2"

- solenoid & connector (1/4 x 1/2" N.C., rd. hd.)

3шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
